PE54.15-P-2105KF Wiring Diagram of Passenger-Side Fuse and Relay Box

Wiring Diagram Of Passenger-Side Fuse And Relay Box PE54.15-P-2105KF
- Feed-in of fuses in front passenger fuse box
- K40/4

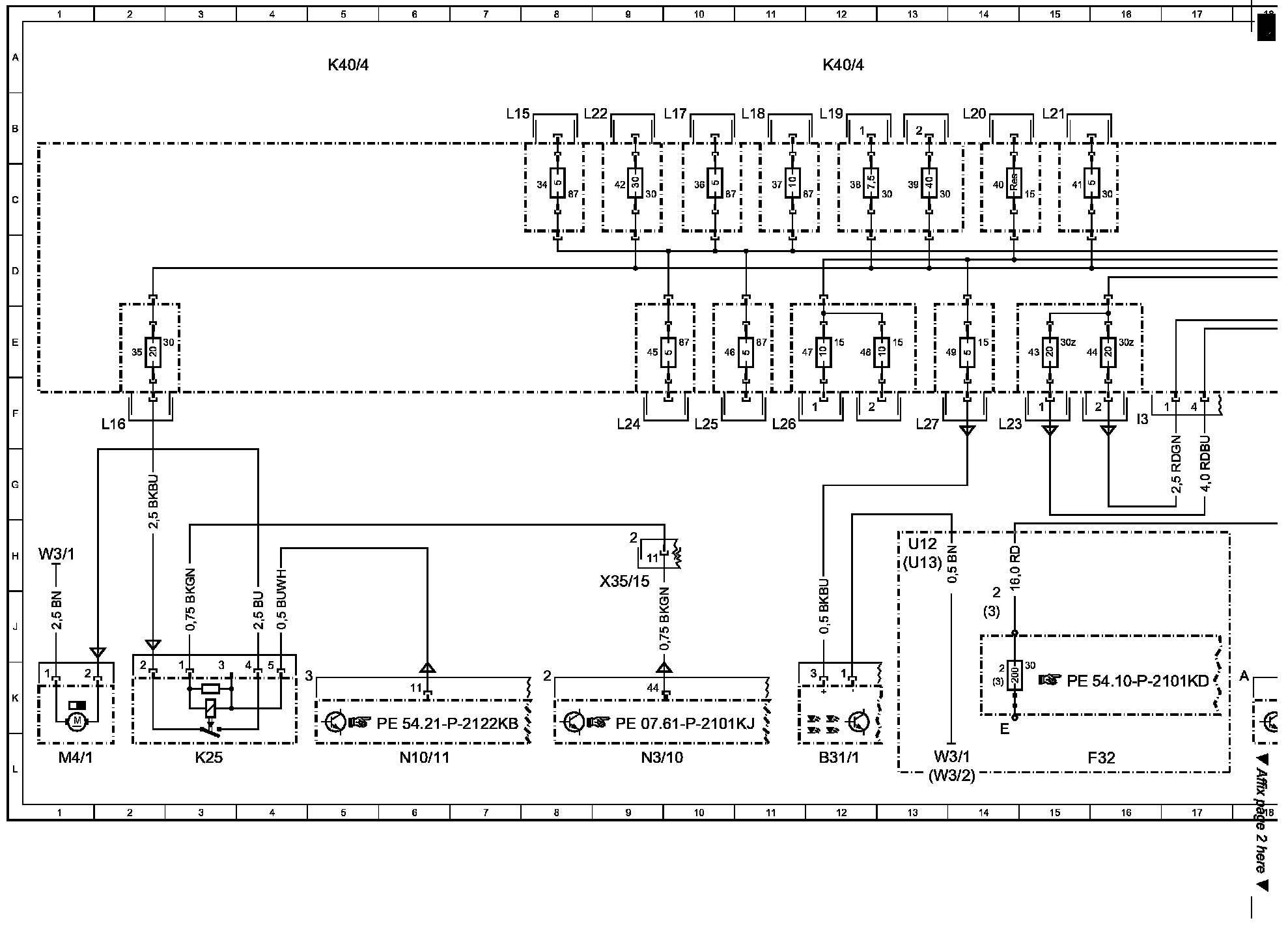

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

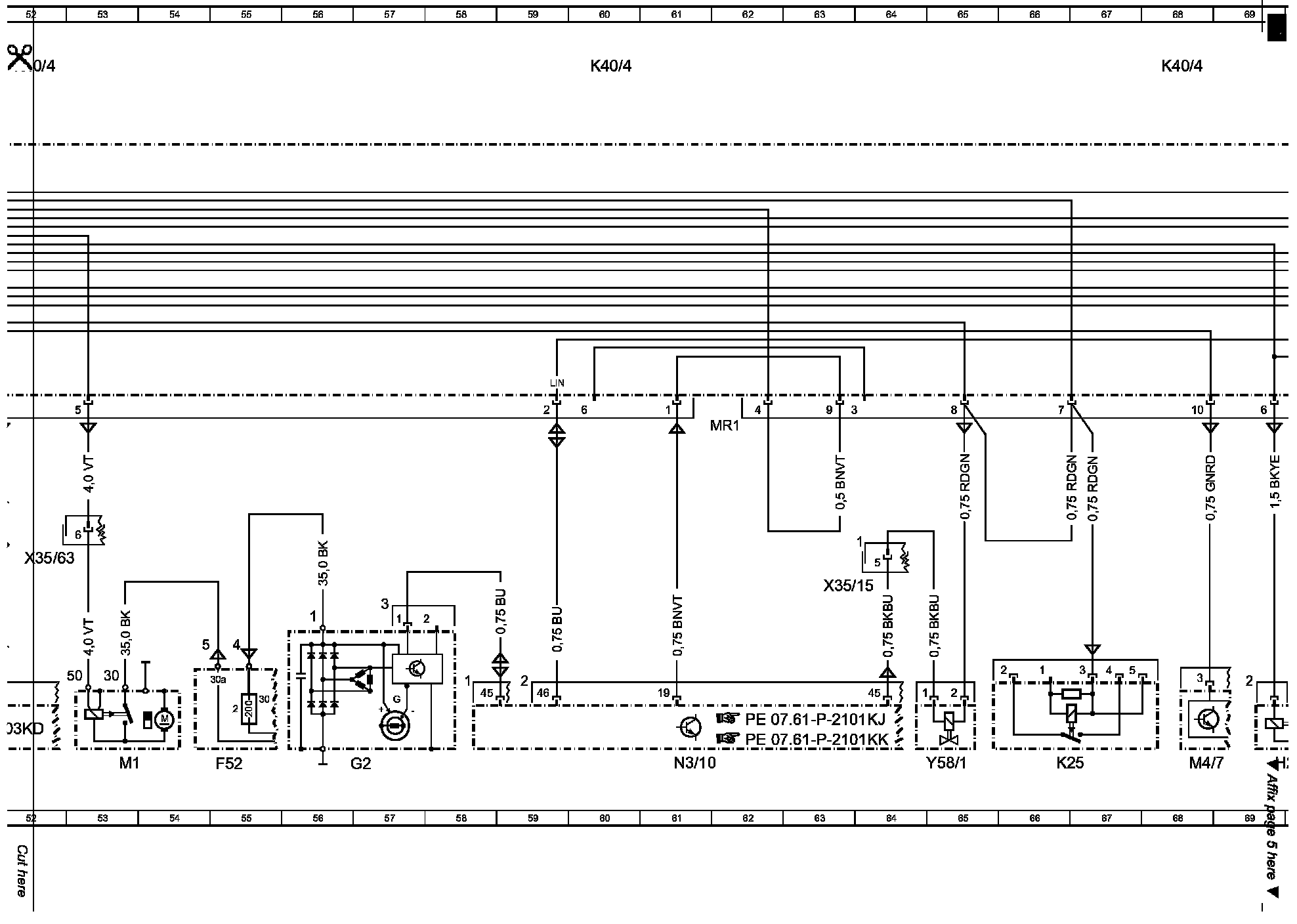

Wiring Diagram (Part 3):

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

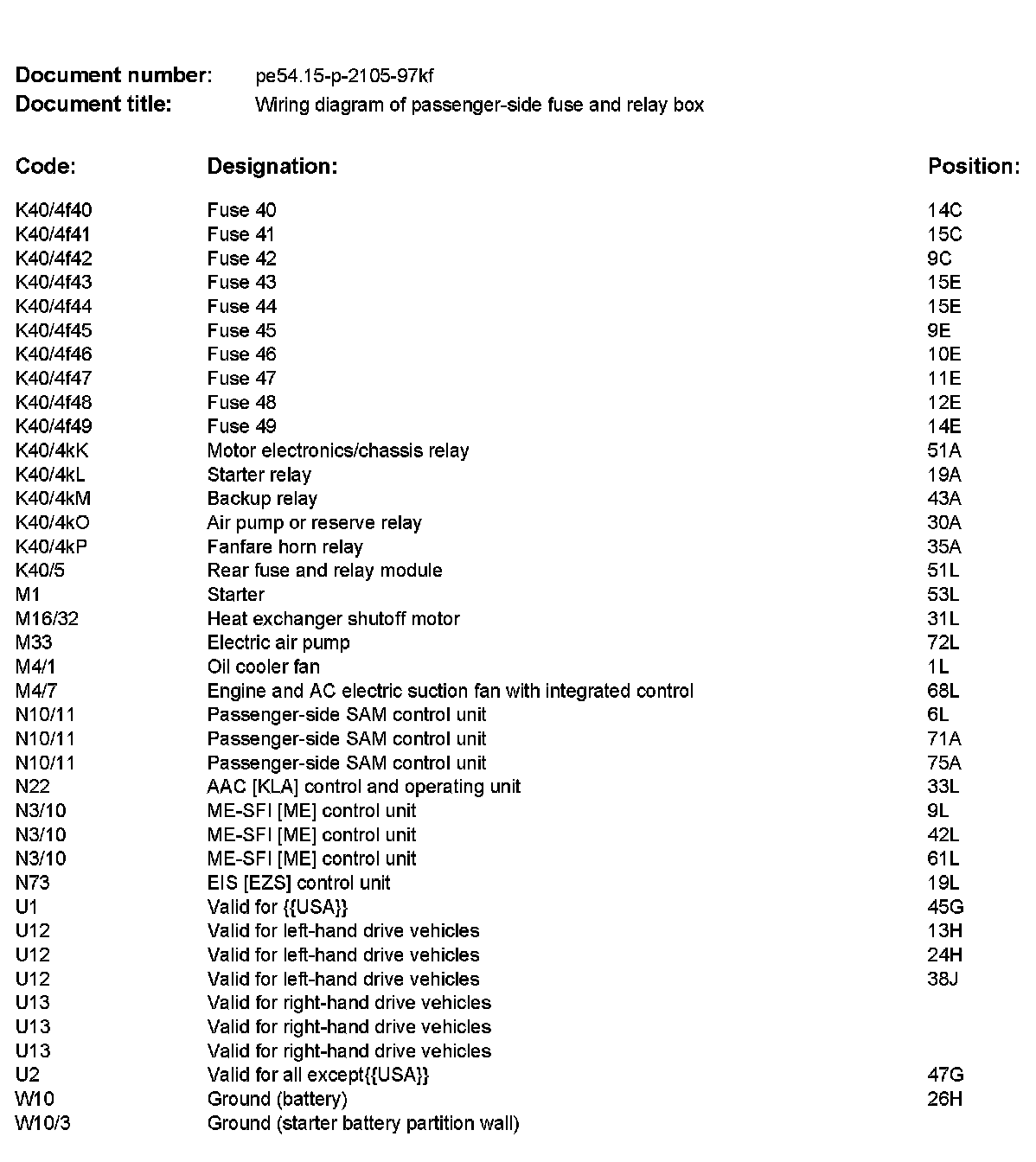

Component Description/Coordinates, A0 To K40/4f39:

Component Description/Coordinates, K40/4f40 To W10/3:

Component Description/Coordinates, W3/1 To Z7/36z1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
