Starting System: Diagrams

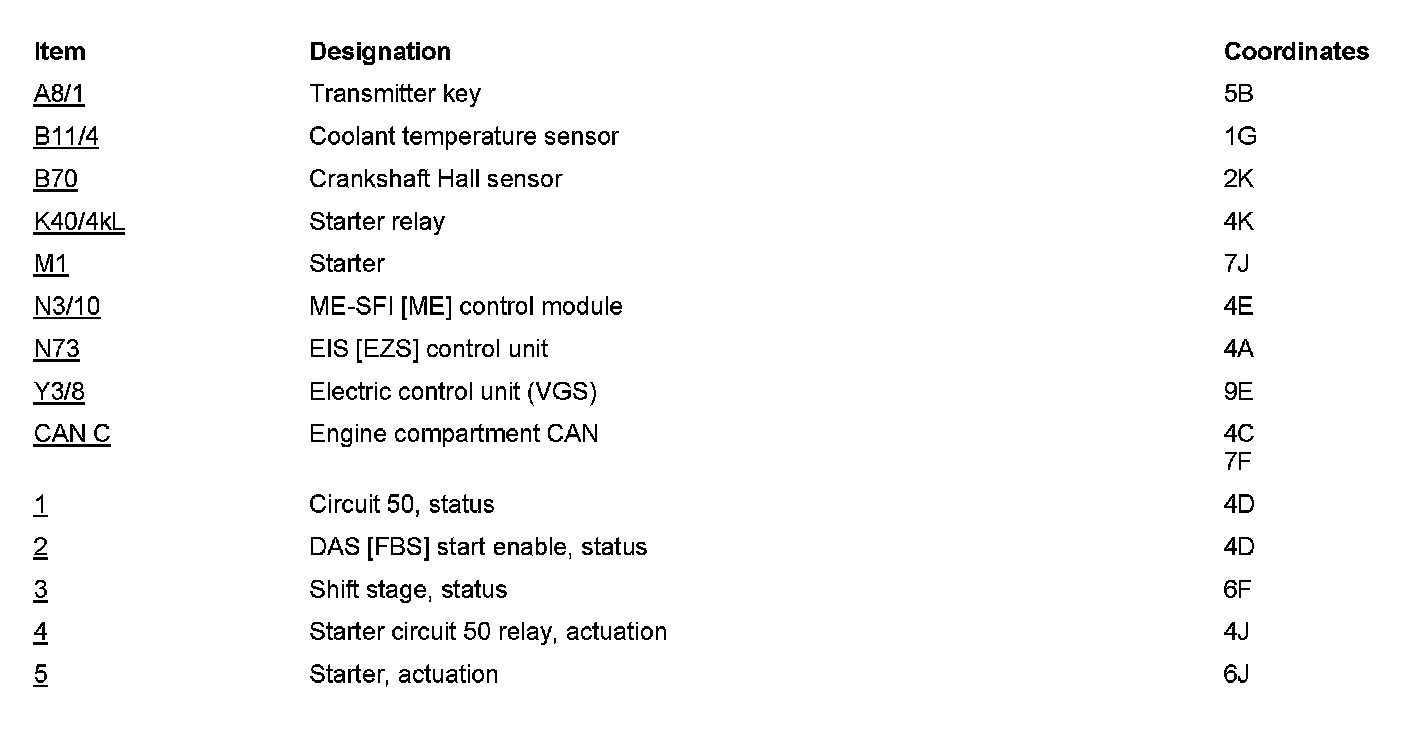

PE15.30-P-2051KB Starter Control, Function Diagram

Model 230.4
- with Engine 156










Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
