GF80.20-P-6065RI Trunk Lid Locking Switch, Component Description

GF80.20-P-6065RI Trunk Lid Locking Switch, Component Description
- with CODE (887) Valet Parking

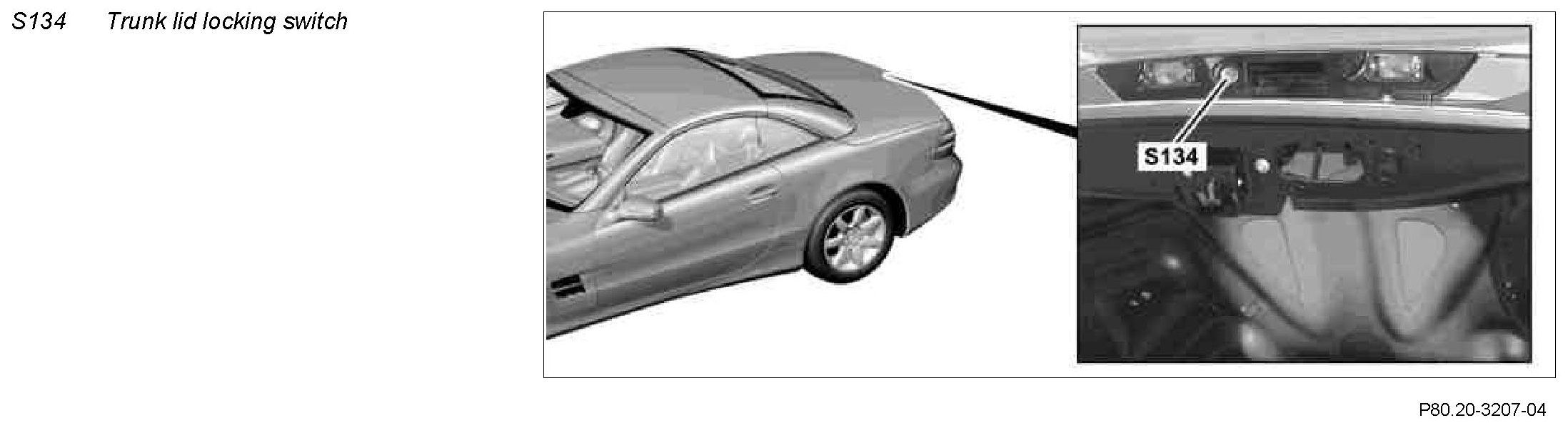

Component Identification:

Location
The trunk lid locking switch is located at the front of the trunk.

Task
The trunk lid locking switch is actuated when the lock cylinder is turned with the emergency key.
The trunk lid can no longer be opened via the individual control points.
The trunk lid locking switch is read in by the pneumatic controller unit with combined functions (A37).
