PE88.79-P-2056KA Electrical Function Schematic For Automatic Dimming Mirror

Electrical Function Schematic For Automatic Dimming Mirror PE88.79-P-2056KA
- with CODE (249) Automatically dimming inside rearview mirror and outside mirror (driver)
- with CODE (500) Folding left/right outside mirrors
- refinement package
- as of model year 2009

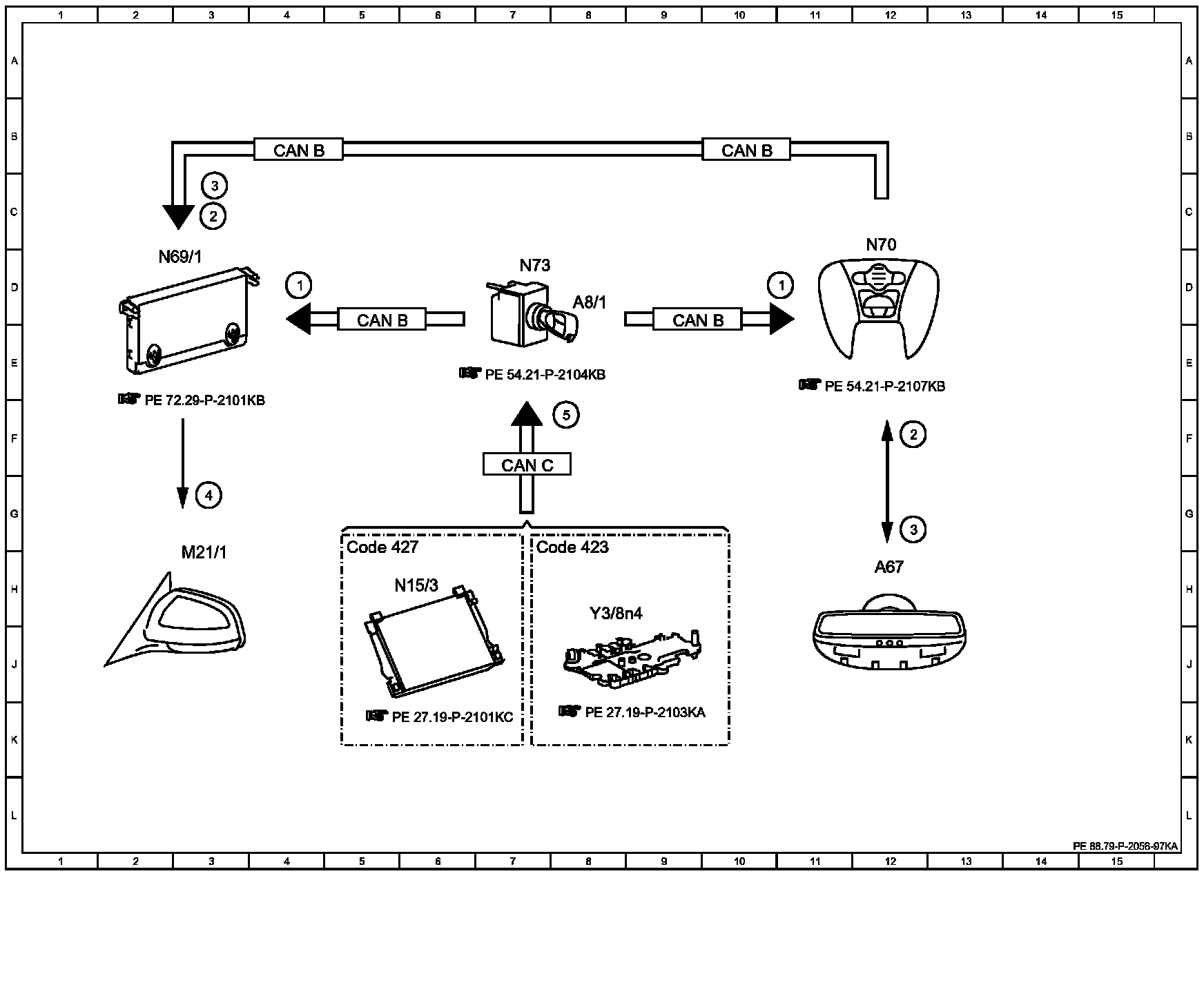

Function Diagram:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
