GF91.30-P-5200RI Front Seat Ventilation Motor Component Description

GF91.30-P-5200RI Front Seat Ventilation Motor Component Description
- with CODE (401) Front deluxe seats, including seat heating and seat ventilation

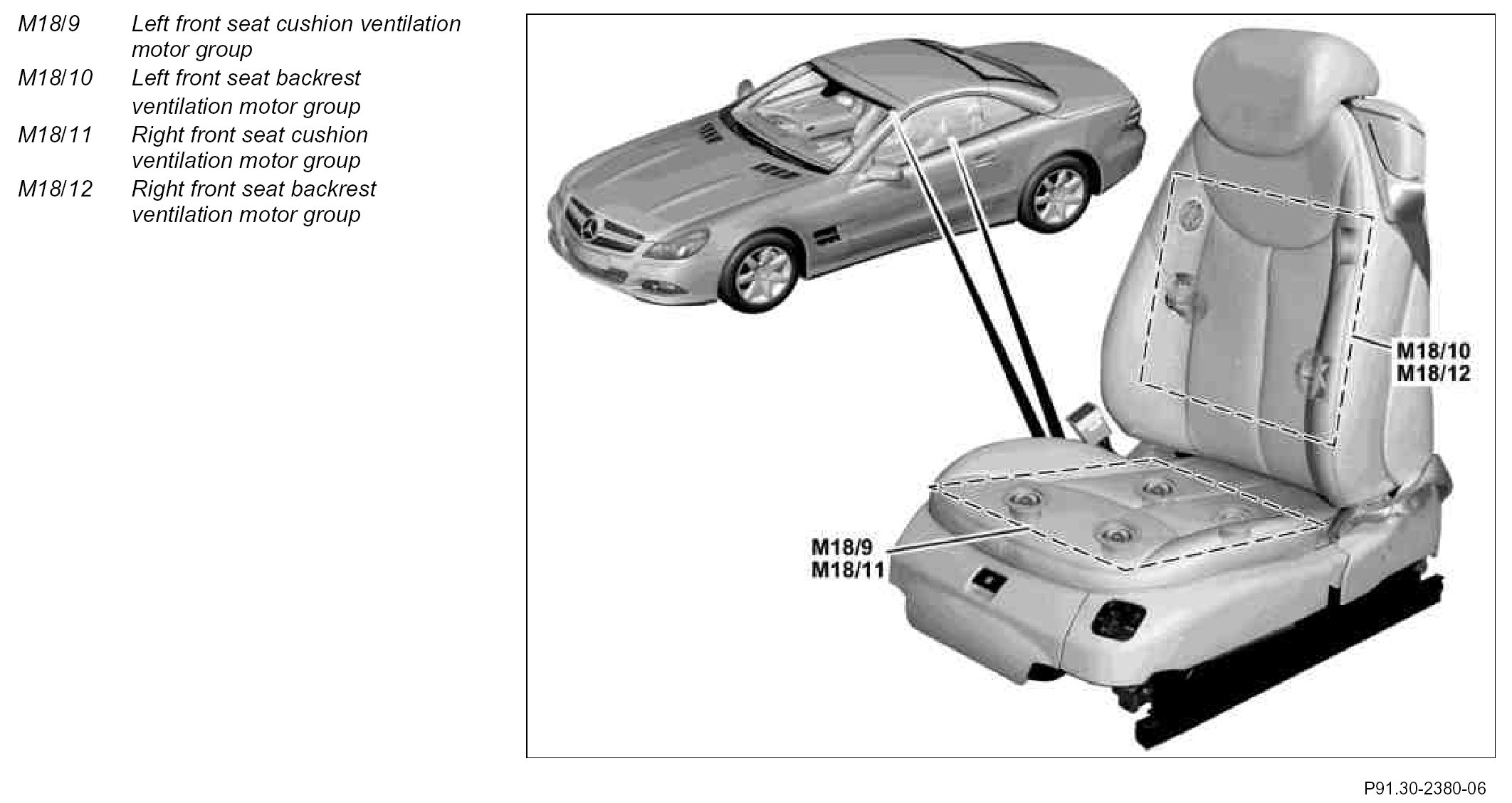

Component Identification:

Location
The motor groups are integrated into the padding of the seat cushion and the padding of the backrest for each front seat.

Task
When the seat ventilation is switched on, the motor groups generate an air flow that ventilates the seat cushion and backrest for each front seat.

The motor groups are connected in parallel and are actuated by the blower regulator for the left front seat ventilation (N29/5) or the blower regulator for the right front seat ventilation (N29/6).

The blower regulators are actuated by the left front seat adjustment control unit with memory (N32/1) or the right front seat adjustment control unit with memory (N32/2).
