GF42.46-P-5133RI SBC Pedal Value Sensor, Component Description

GF42.46-P-5133RI SBC pedal value sensor, component description

MODEL 230.4
except CODE (P99) Special model "AMG Black Series"
as of Model Year 2009
/YoM 08 MOPF

Component Identification:

Location

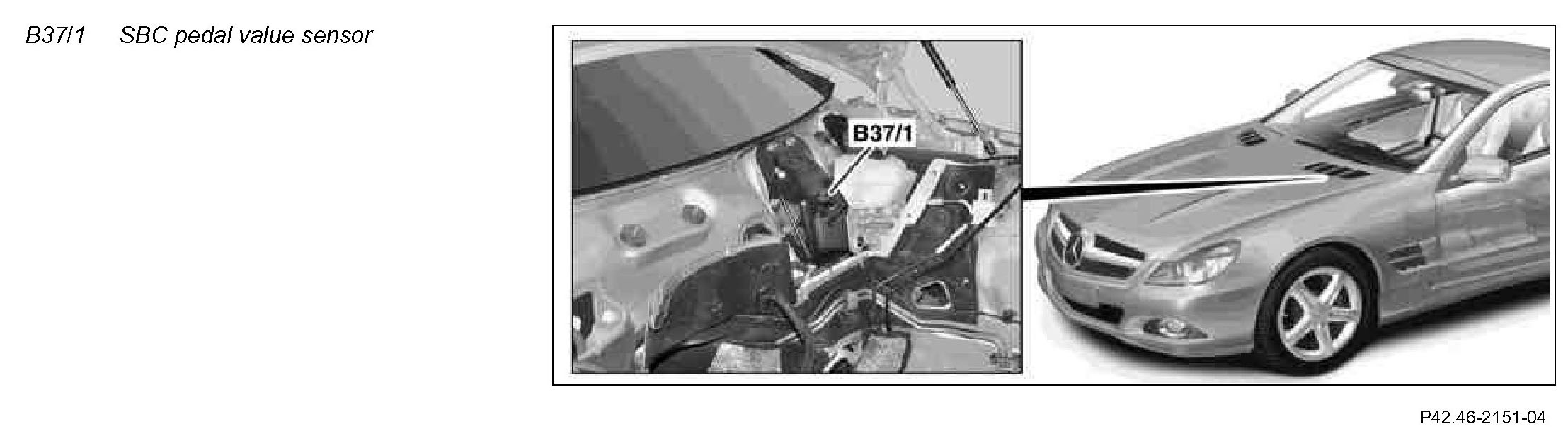

The SBC pedal value sensor is located on the left of the engine compartment.

Component Identification:

Task

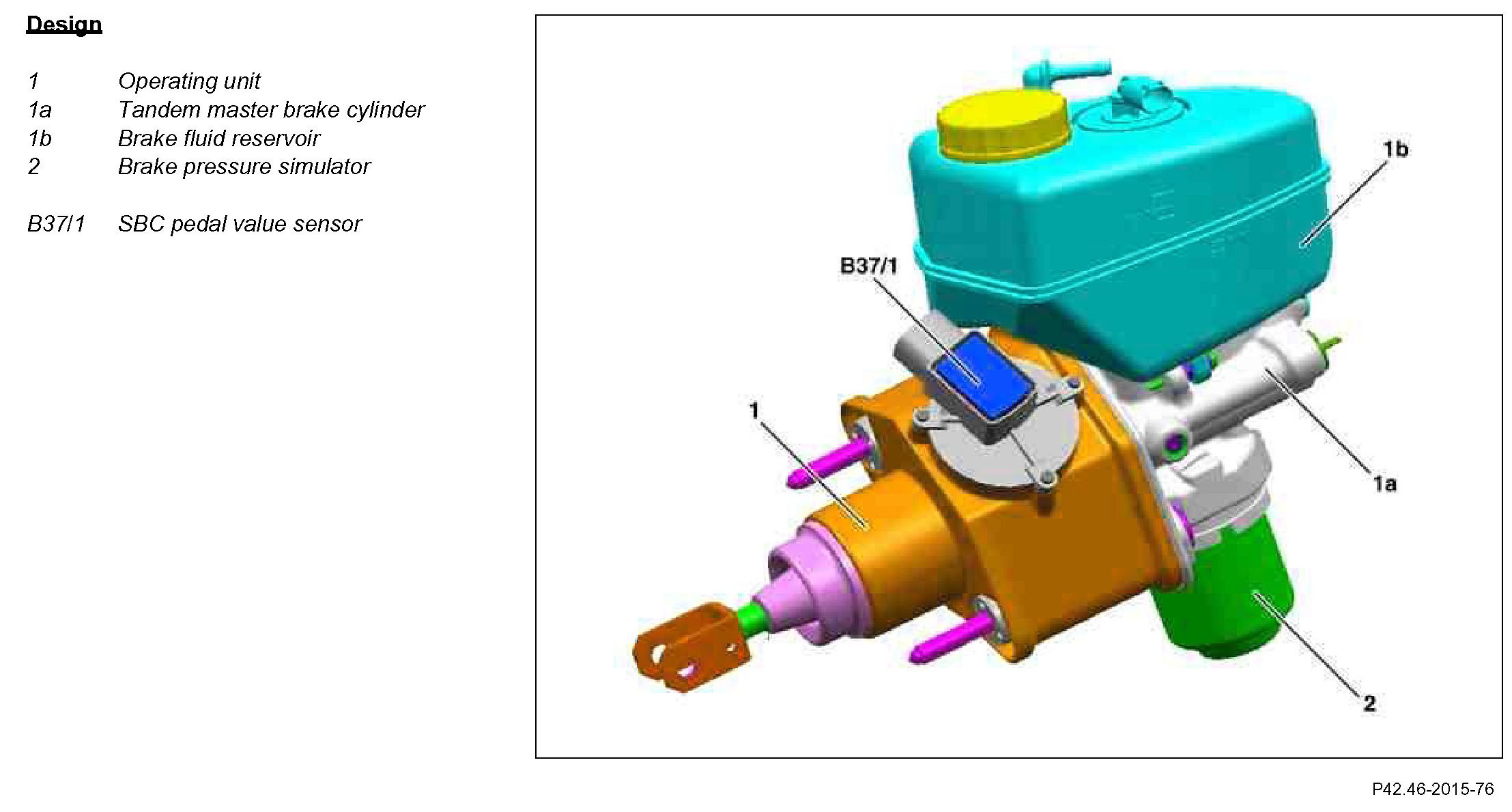

The SBC pedal value sensor measures the actuation travel at the master brake cylinder and communicates the position of the brake pedal to the SBC control unit (A7/3n1).
