Wiring Diagram of TV Tuner PE82.60-P-2220KC

Wiring Diagram Of TV Tuner PE82.60-P-2220KC
- with CODE (498) Japan version
- control unit A90/3
- refinement package
- as of model year 2009

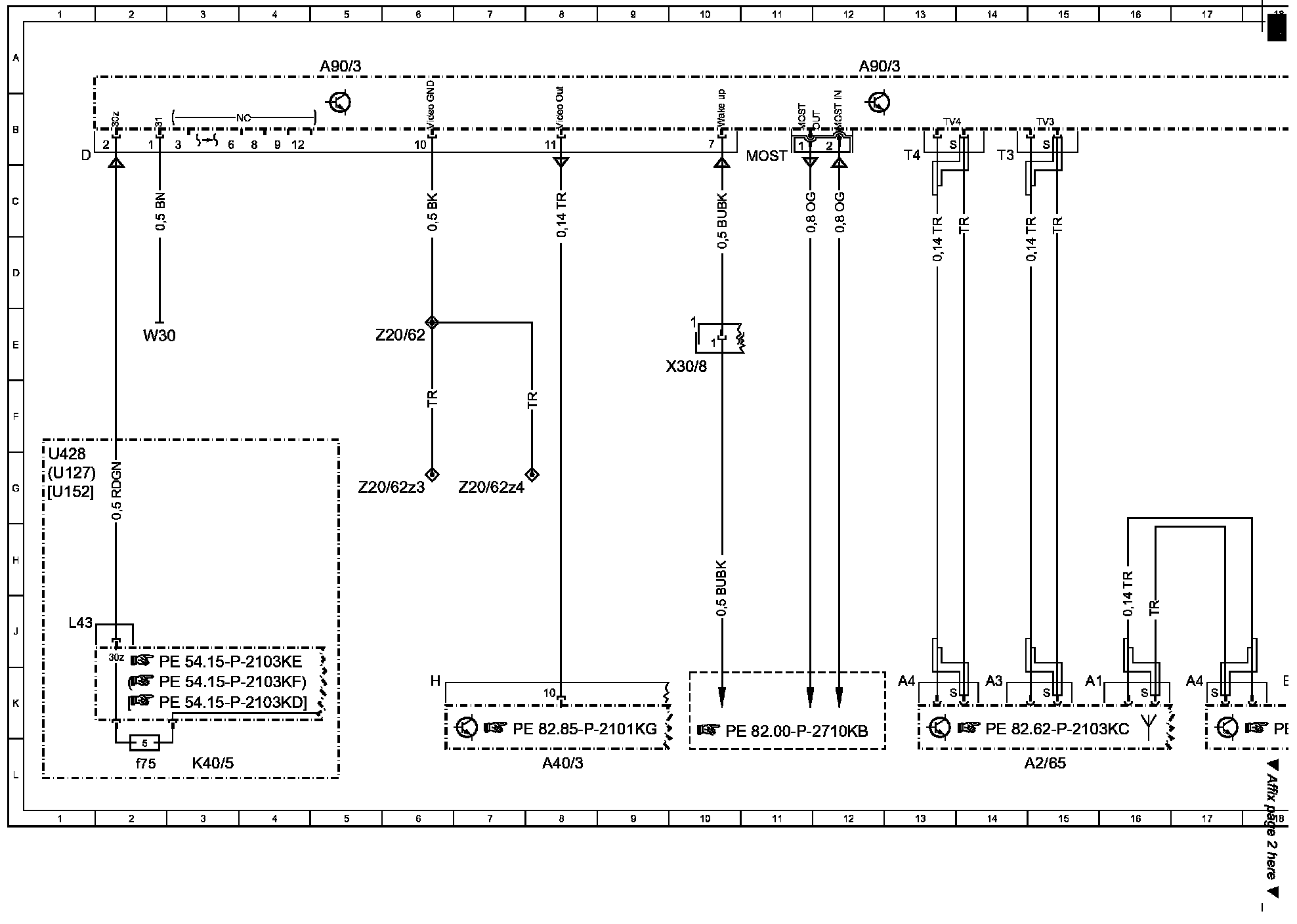

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

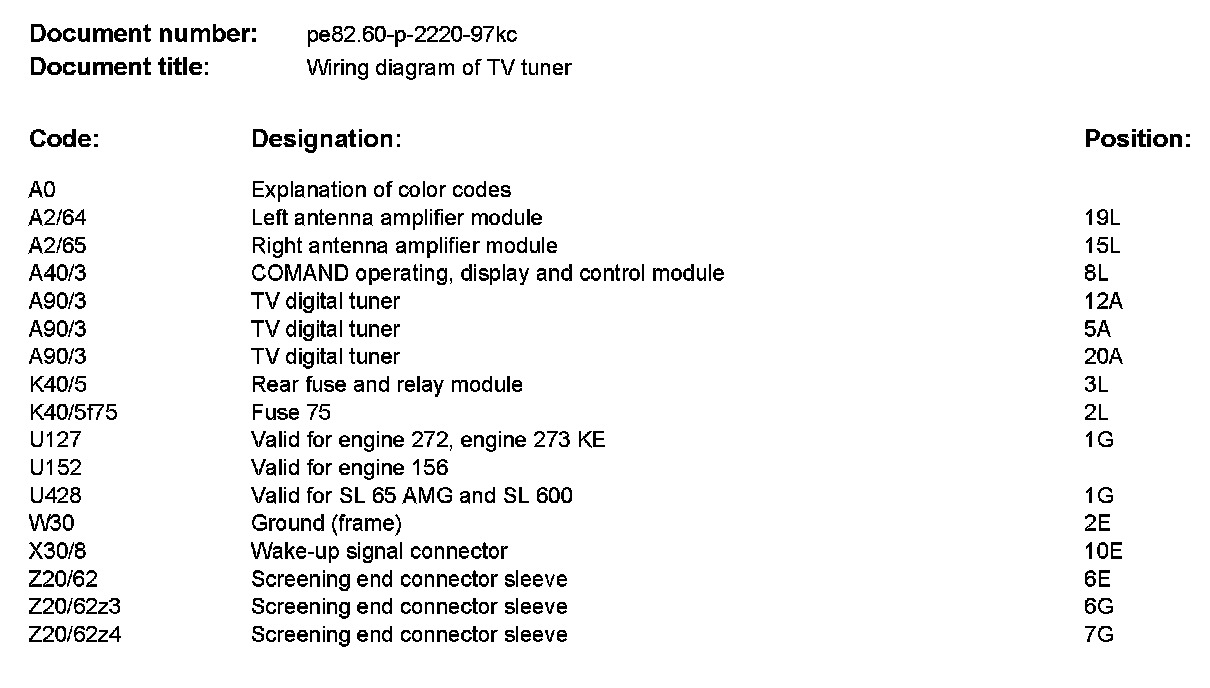

Component Description/Coordinates A0 To Z20/62z4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
