Blower Motor: Service and Repair

AR83.25-P-1200R Remove/Install Blower Motor







1.1 Switch off ignition, remove key from electronic ignition switch EIS
1.2 Switch off engine, remove Keyless Go card from vehicle

NOTE: For CODE (889) Keyless Go Keep Keyless Go card out of reach of transmitter range.

2 Remove cover below instrument panel on right
3 Disconnect electrical connector on blower motor (A32m1).
4 Unscrew blower motor (A32m1) on evaporator housing
5 Remove blower motor (A32m1)

CAUTION: Do not place blower motor onto fan wheel.

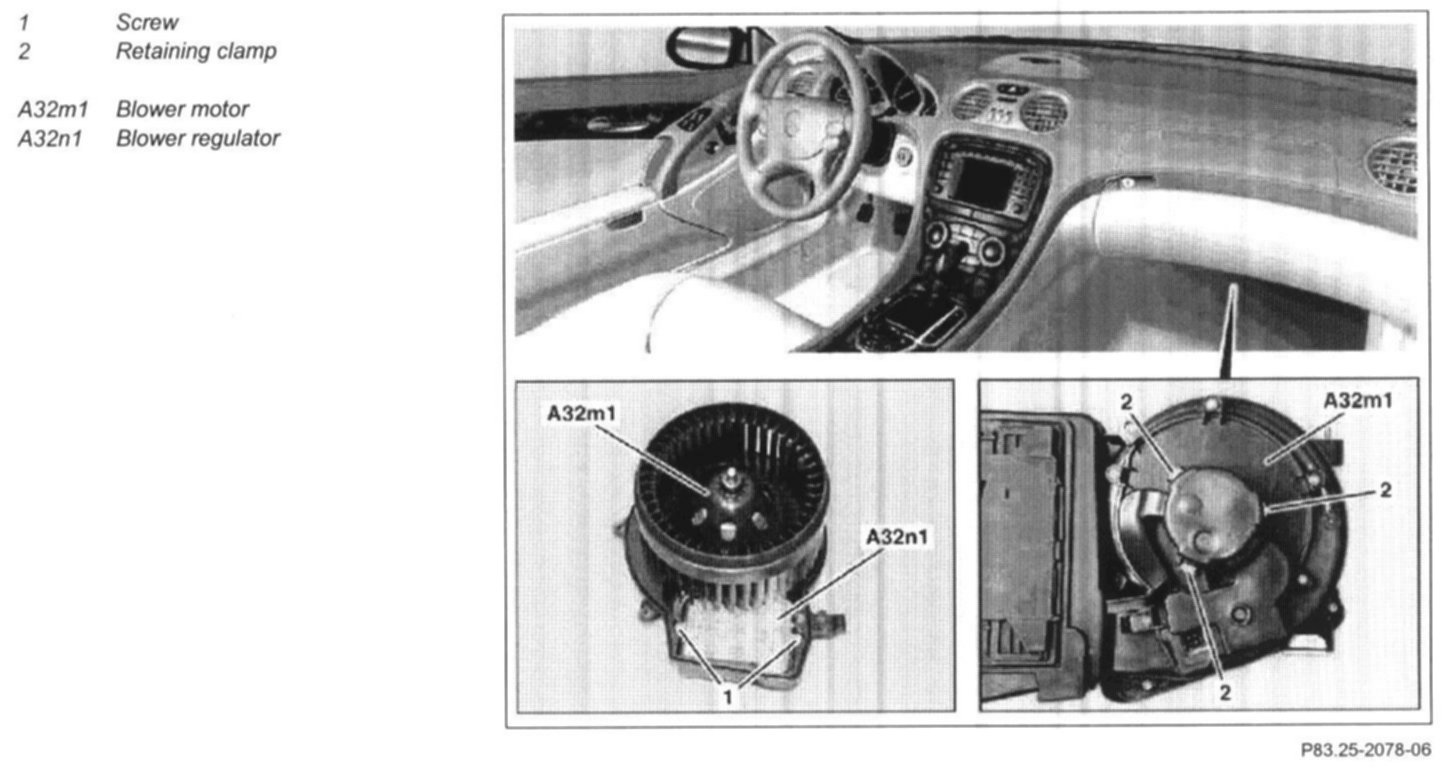

6 Unscrew screws (1)
7 Use suitable tool to unclip locating tab of retaining clamps (2) and remove casing of blower motor (A32m1) and blower regulator (A32n1)

CAUTION: risk of fractures.

8 Remove blower motor (A32m1) from blower regulator (A32n1)
9 Install in the reverse order
10 Check blower motor (A32m1) for proper operation.
