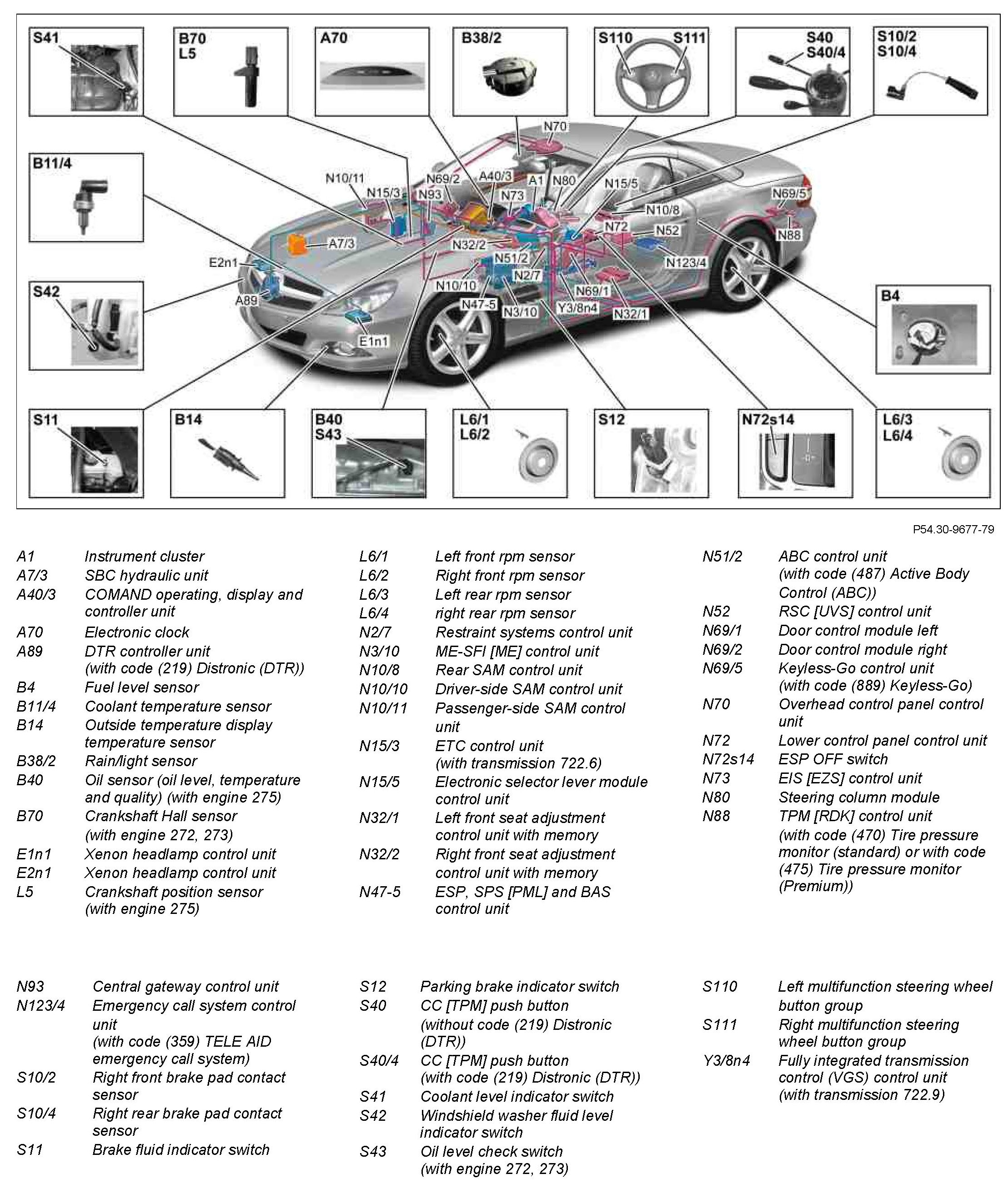

GF54.30-P-0002-04RI Instrument Cluster (KI), Location of Components



GF54.30-P-0002-04RI Instrument Cluster (KI), Location Of Components
- except CODE (P99) Special model "AMG Black Series"
- as of model year 09



Component Identification:
