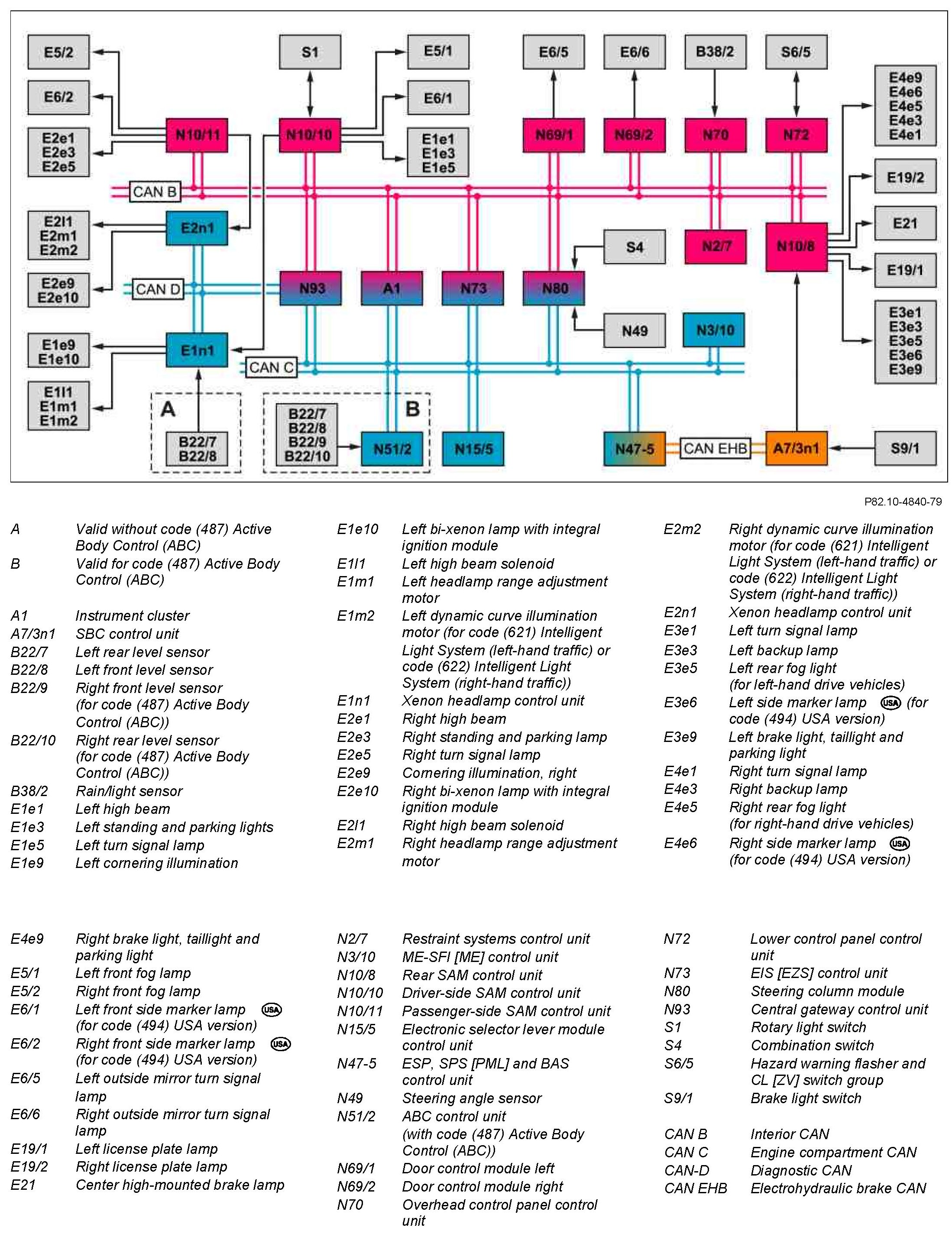

GF82.10-P-0003-03RI Block Diagram of Exterior Lights
GF82.10-P-0003-03RI Block Diagram of Exterior Lights
GF82.10-P-0003-03RI Block Diagram Of Exterior Lights
Component Identification:
