GF82.10-P-2017RI Lamp Unit, Component Description

GF82.10-P-2017RI Lamp Unit, Component Description

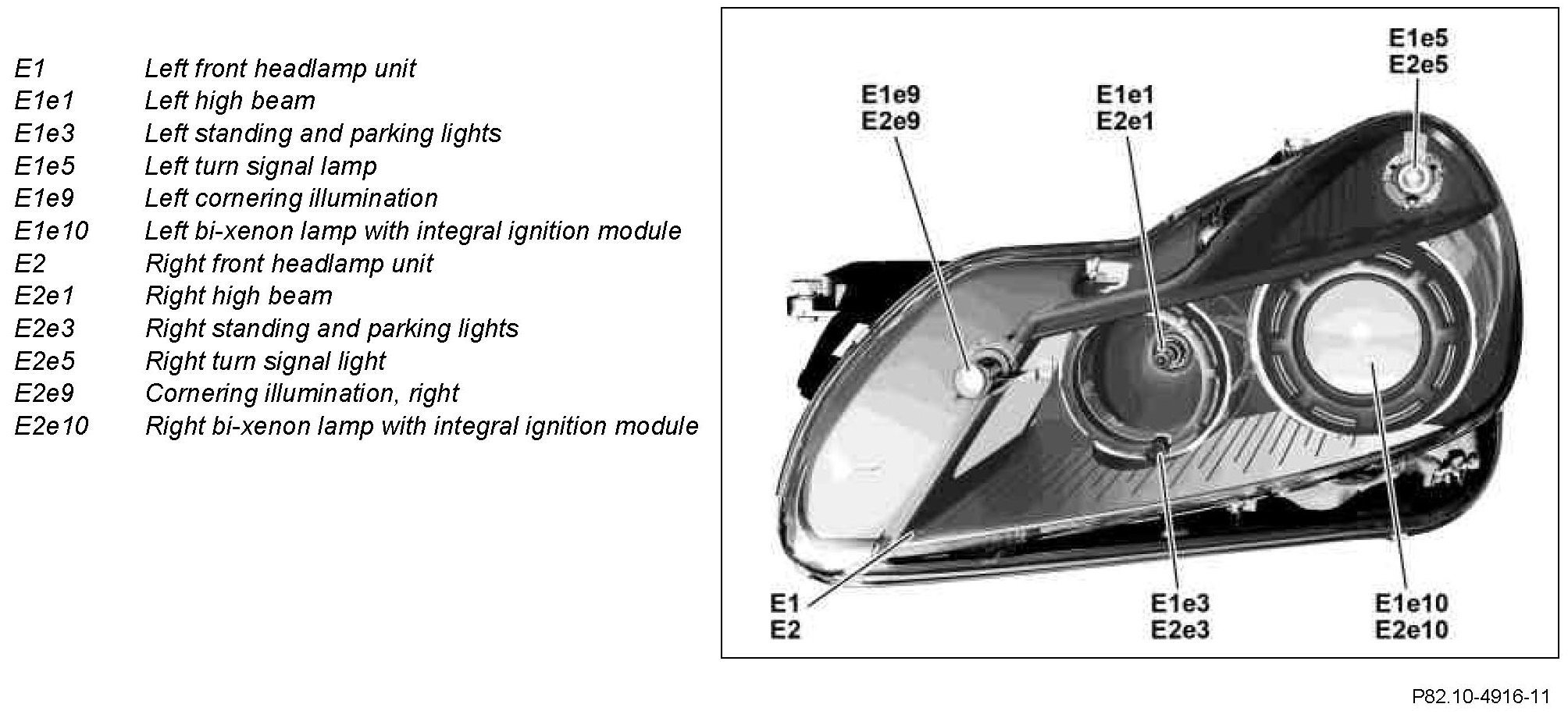

Component Identification:

Location
The front lamp units are located at the front of the vehicle.

Design
Left front lamp unit:
- Left high beam
- Left standing and parking lamp
- Left turn signal lamp
- Left cornering illumination
- Left bi-xenon lamp with integral ignition module
- Left high beam solenoid (E1l1)
- Left headlamp range adjustment motor (E1m1)
- Left dynamic curve illumination motor (E1m2) (for code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))

Right front headlamp unit
- Right high beam
- Right standing and parking lamp
- Right turn signal lamp
- Cornering illumination, right
- Right bi-xenon lamp with integral ignition module
- Right high beam solenoid (E2l1)
- Right headlamp range adjustment motor (E2m1)
- Right dynamic curve illumination motor (E2m2) (for code (621) Intelligent Light System (left-hand traffic) or code (622) Intelligent Light System (right-hand traffic))
