GF82.10-P-4200RI Outside Mirror Turn Signal Light, Component Description

GF82.10-P-4200RI Outside Mirror Turn Signal Light, Component Description

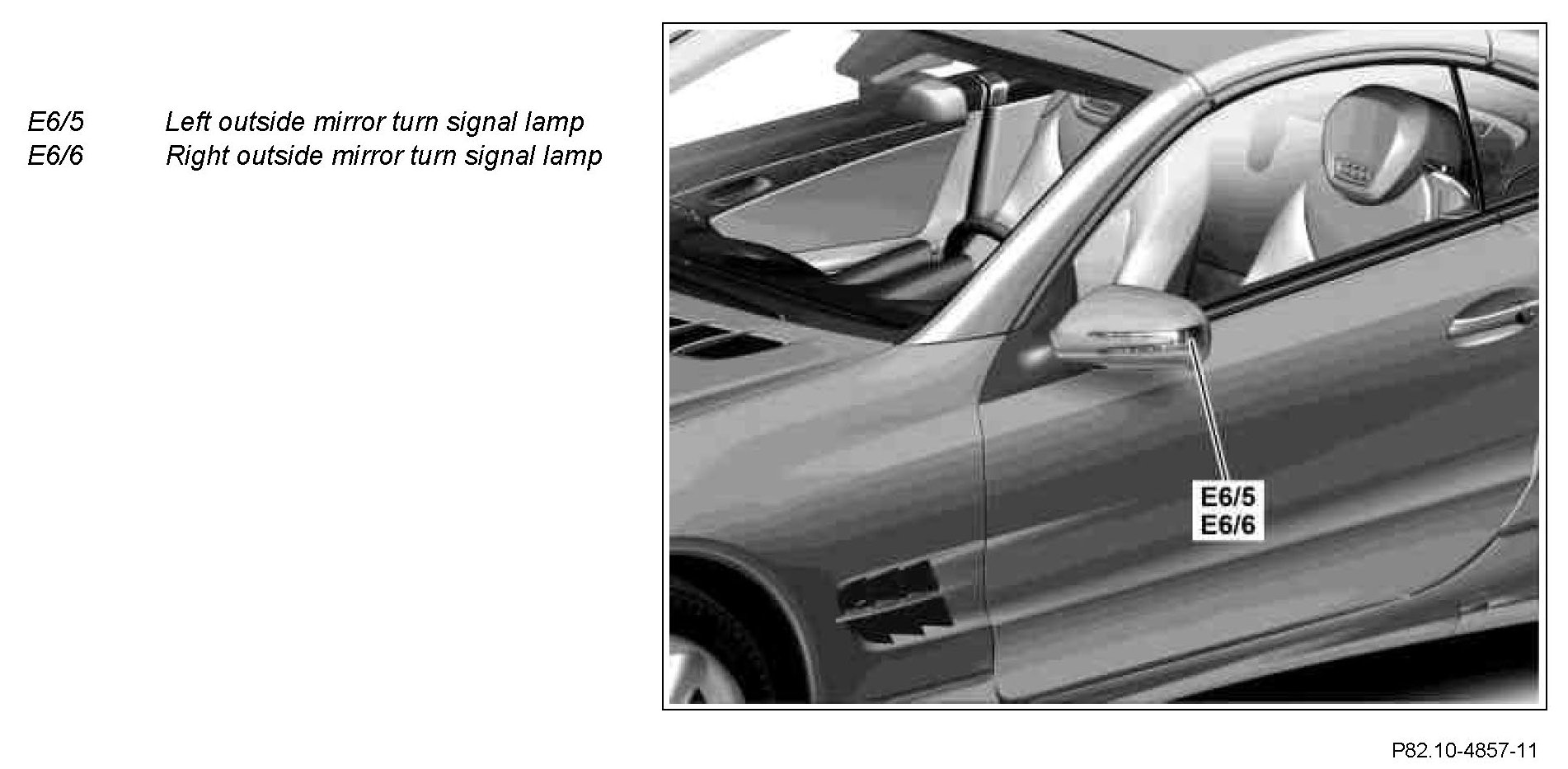

Component Identification:

Location
The outside mirror turn signal lights are integrated in the outside mirrors.

Task
The outside mirror turn signal lamps serve to indicate the turn signaling function and hazard warning flashing function.
The left outside mirror turn signal lamp is actuated by the left door control unit (N69/1).
The right outside mirror turn signal lamp is actuated by the right door control unit (N69/2).
