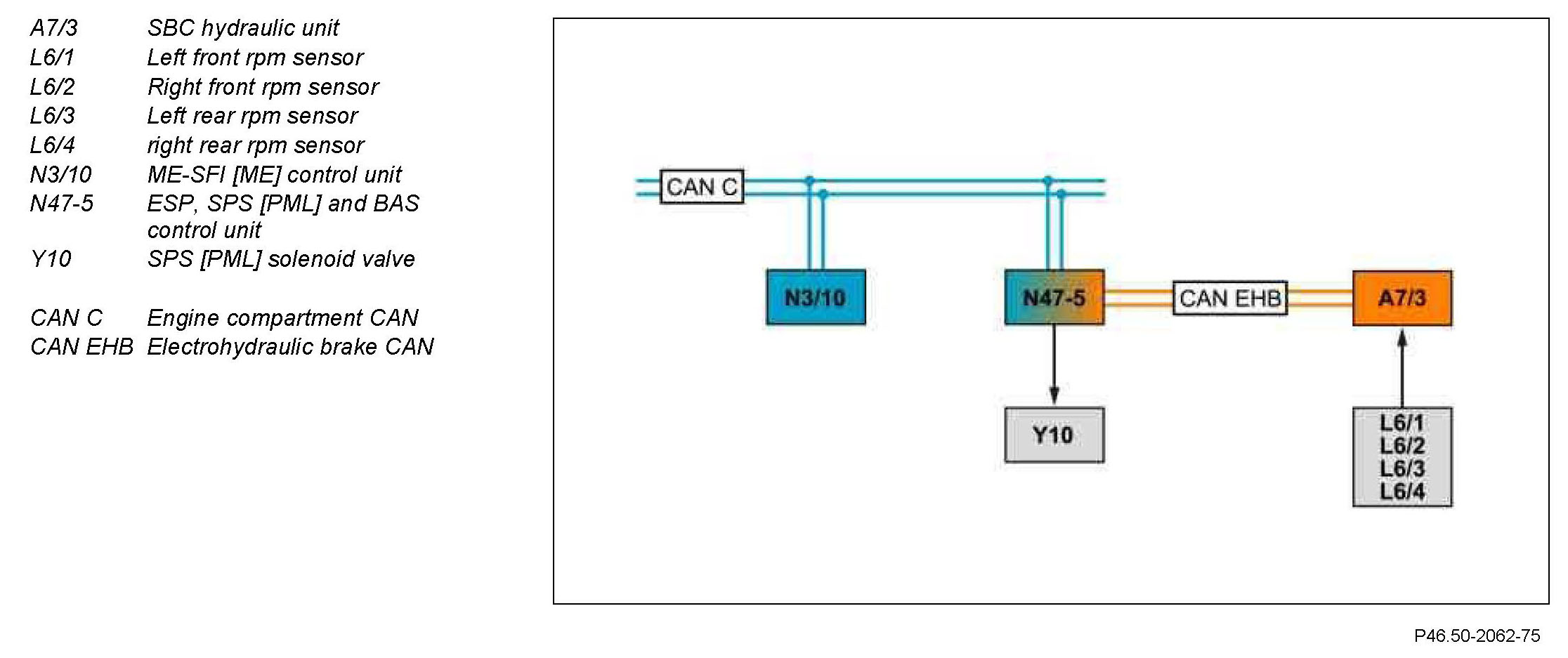

GF46.50-P-0001-02RI Speed-Sensitive Power Steering (SPS (PML)), Block Diagram



GF46.50-P-0001-02RI Speed-sensitive power steering (SPS [PML]), block diagram
- as of model year 09
