GF27.40-P-2008ACM Transmission Housing Ventilation Component Description

GF27.40-P-2008ACM Transmission housing ventilation component description
- TRANSMISSION 722.643/649
- refinement package
- as of model year 09

Component Identification:

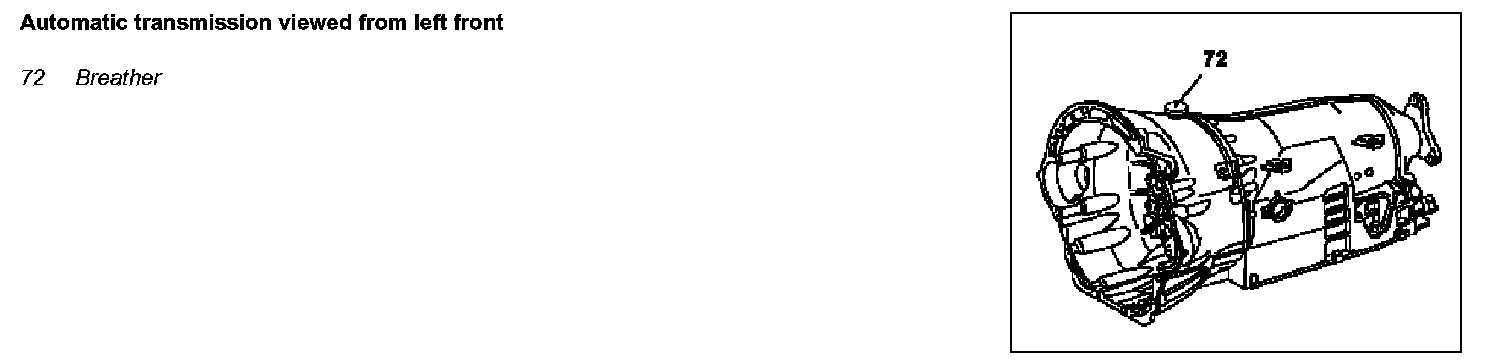

Location
A channel cast in the torque converter housing connects the transmission interior with the breather.

Task
The transmission housing vent compensates the pressure in the transmission housing if temperature-related volume changes in the transmission oil and air occur.
