GF27.60-P-5160AHM Center Shifter Console, Component Description

GF27.60-P-5160AHM Center shifter console, component description
- TRANSMISSION 722.904/906/999
- refinement package
- as of model year 09

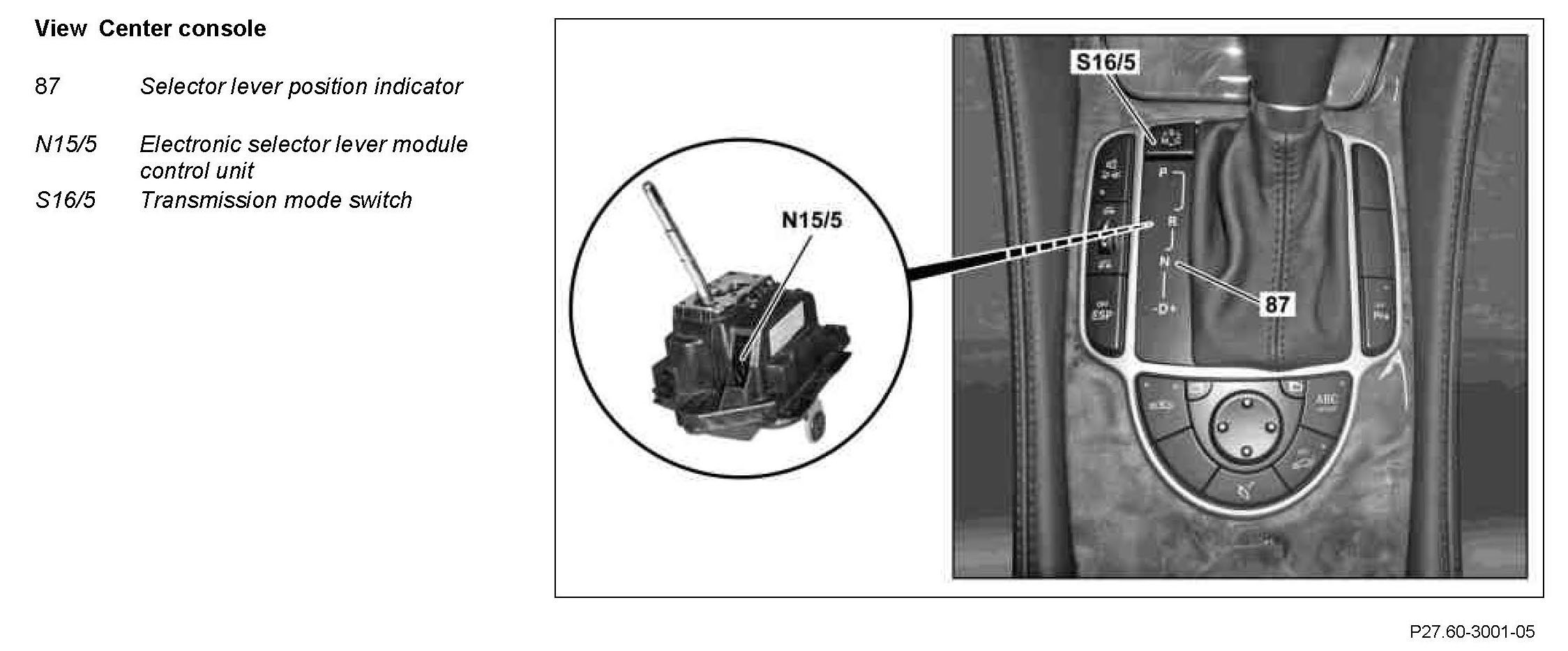

Component Identification:

Location
The floor shift is located in the center console of the vehicle.

Task
The center shifter console is the central control for changing the transmission mode, gear range and gear of the transmission.

Function
The selector lever is moved and positioned in the shift gate, which is not visible to the driver. All selector lever positions are detected by the electronic selector lever module control unit, coded and transmitted to the fully integrated transmission control unit (VGS) (Y3/8n4) via the engine compartment CAN (CAN C).

At the same time as transmitting via the engine compartment CAN selector lever positions "P, R, N, D" are passed on mechanically to the selection range sensor by means of a shift rod (VGS) (Y3/8s1). The shift ranges "1", "2", "3", "4", "5", "6", "7" up to which the fully integrated transmission control VGS permits an automatic transmission upshift, can be shifted via a sideways movement of the selector lever in selector lever position "D" (touch shift).
