GF27.60-P-5215ACM Shift Pressure Regulating Valve, Component Description

GF27.60-P-5215ACM Shift pressure regulating valve, component description
- TRANSMISSION 722.643/649
- refinement package
- as of model year 09

Component Identification:

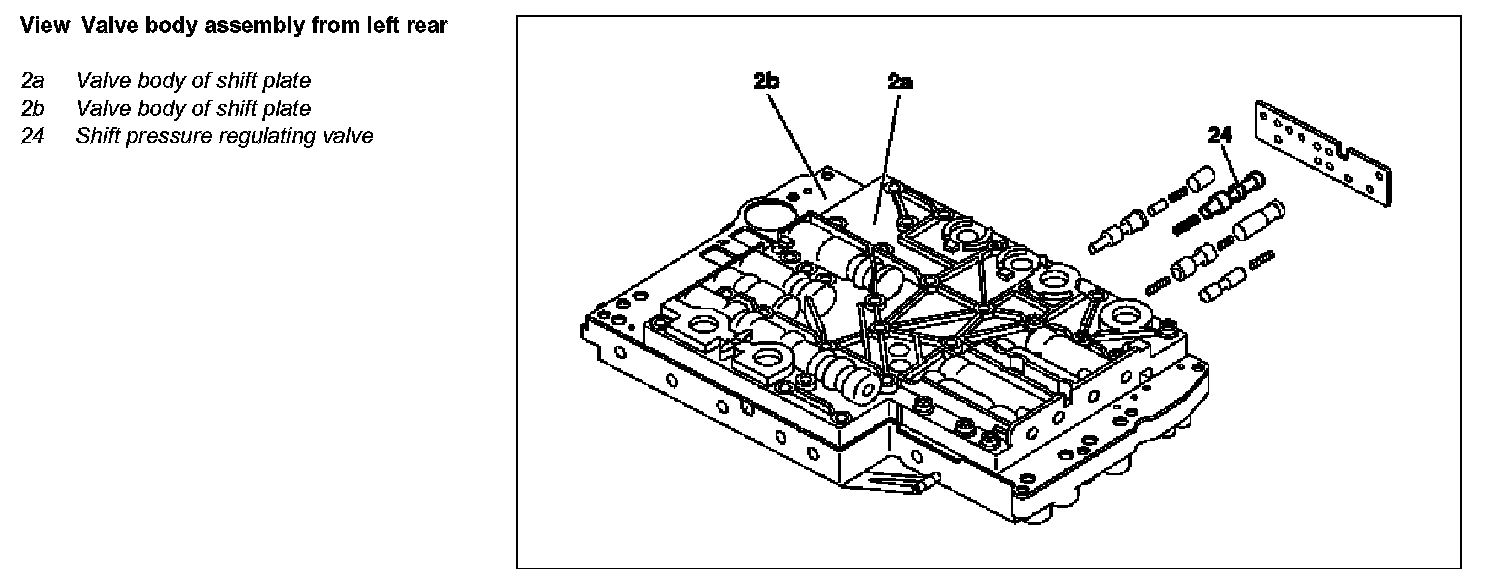

Location
The shift pressure regulating valve is located in the valve housing of the shift plate.

Task
The regulating valve regulates the shift pressure.

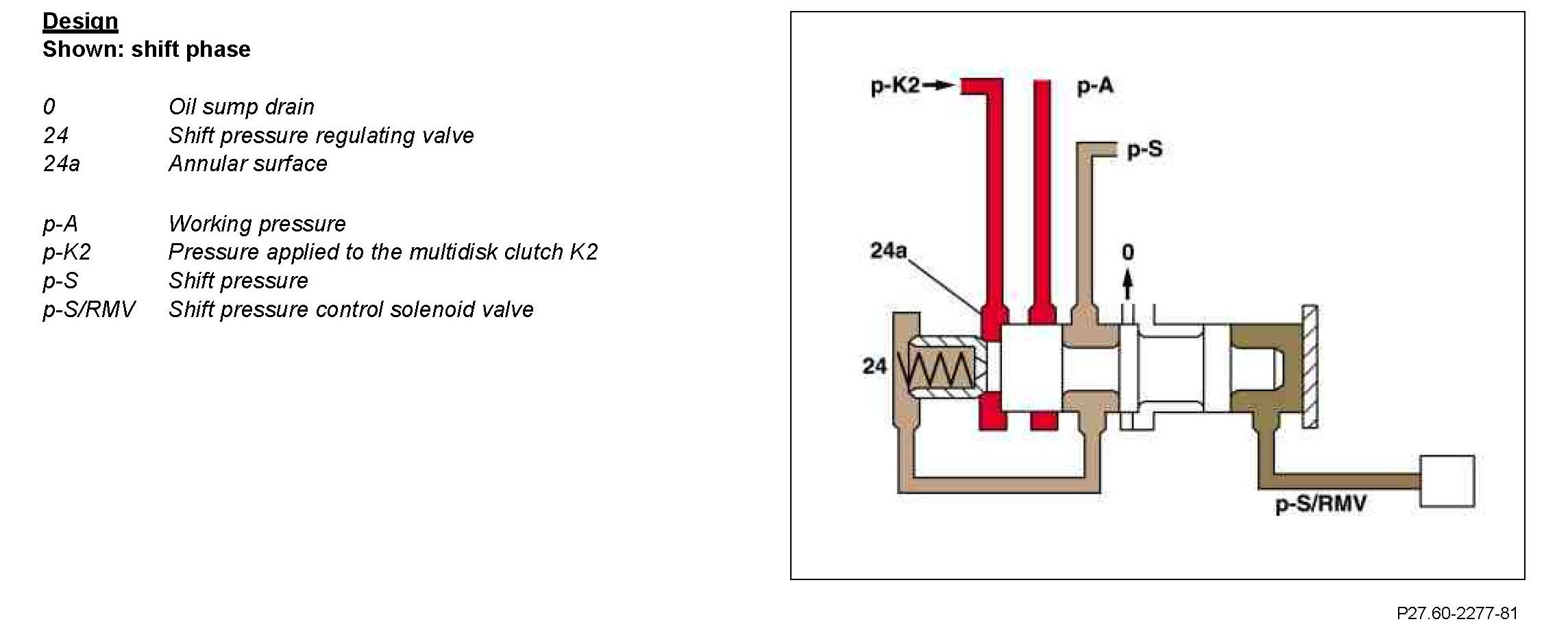

Function
The level of shift pressure is determined by the shift pressure control solenoid valve (Y3/6y2) and shift pressure regulating valve. Additional pressure is applied to the shift pressure regulating valve at the ring surface of the multi-disk clutch K2 This reduces the shift pressure in 2nd gear.
