Receiver Dryer: Service and Repair

AR83.30-P-6521VM Remove And Install Desiccant Cartridge
- 171.4as of 3.3.08
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

- 174.4
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (809) Model year 2009

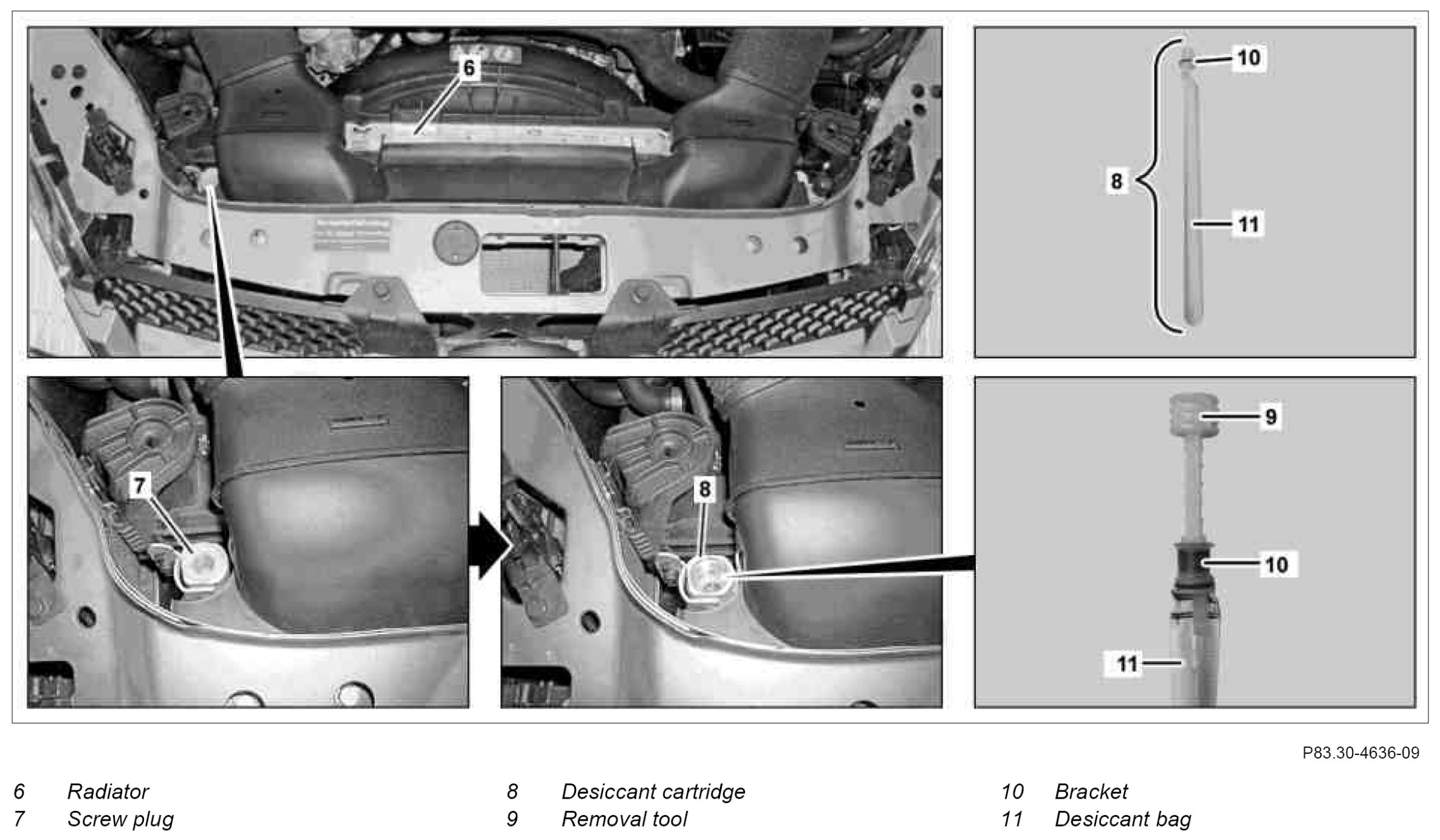

Component Identification:

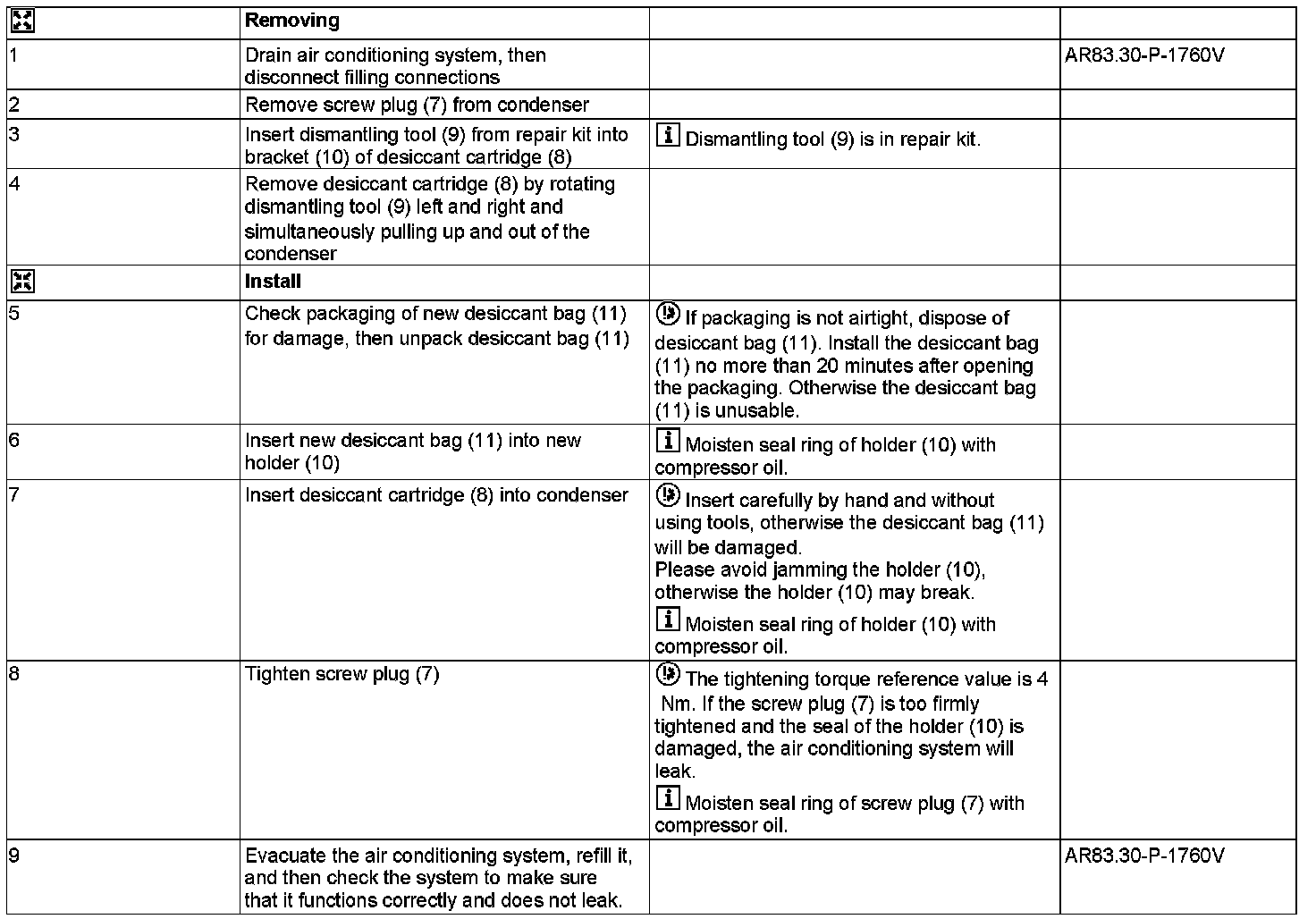

Steps 1-9:
