GF27.40-P-2008AHK Transmission Housing Ventilation Component Description

GF27.40-P-2008AHK Transmission housing ventilation component description
- Transmission 722.904/906/907/999

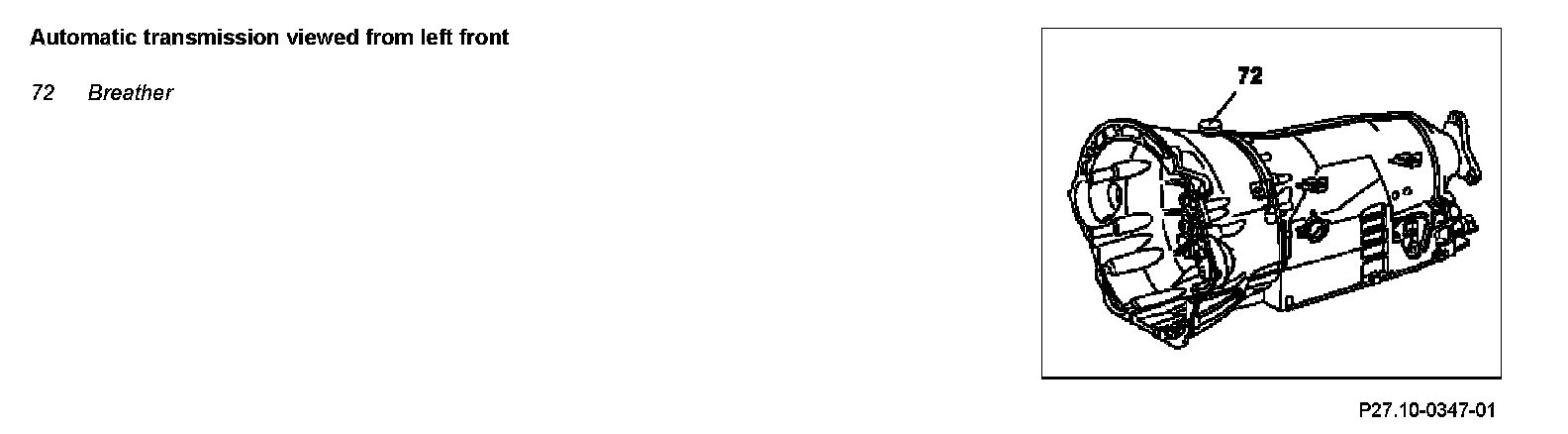

Component Identification:

Location
A channel cast in the torque converter housing connects the transmission interior with the breather.

Task
The transmission housing breather ensures that a pressure equilibrium is maintained in the transmission housing in the event of temperature-related volume changes in the transmission fluid and air.
