Wiper Motor: Description and Operation

GF82.30-P-5010RC Wiper Motor - Component Description

Component Identification:

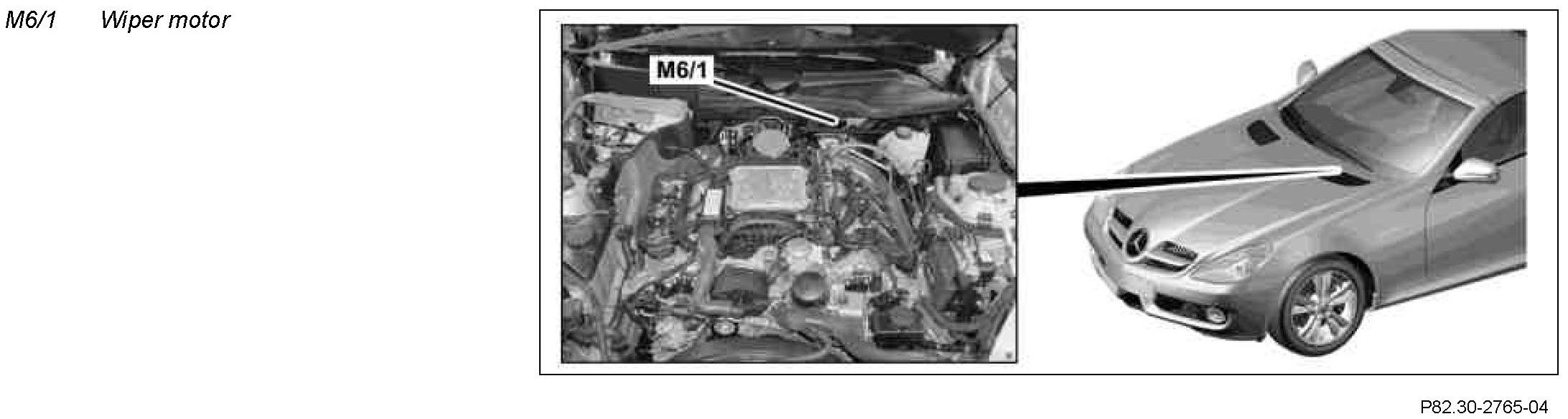

Location
The wiper motor is centrally located in the engine compartment in front of the windshield.

Task
The wiper motor uses linkage to move the wiper arms.

The request to switch on the wiper motor comes from the driver SAM control unit with fuse and relay module (N10/1).
