Maintenance Required Lamp/Indicator: Diagrams

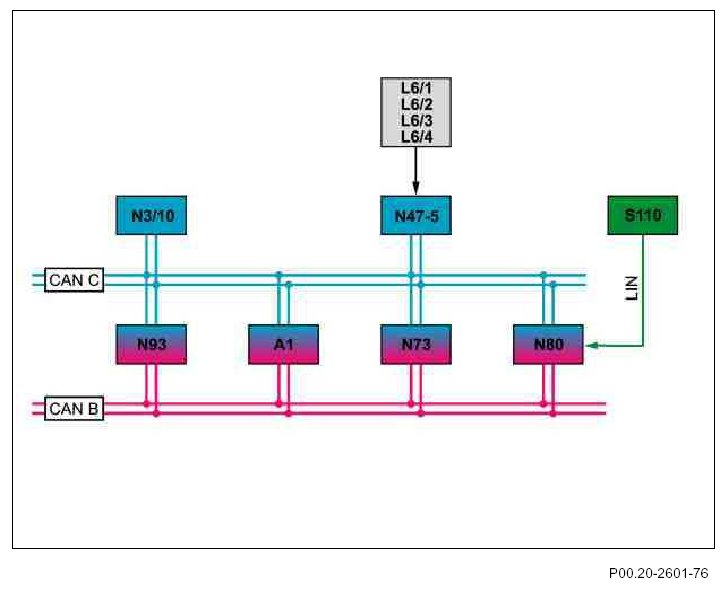

GF00.20-P-0004-05RC Active Service System (ASSYST PLUS), Block Diagram







A1 Instrument cluster
L6/1 Left front rpm sensor
L6/2 Right front rpm sensor
L6/3 Left rear rpm sensor
L6/4 right rear rpm sensor
N3/10 ME-SFI [ME] control unit
N47-5 ESP and BAS control unit
N73 EIS [EZS] control unit
N80 Steering column module
N93 Central gateway control unit
S110 Left multifunction steering wheel button group
CAN B Interior CAN
CAN C Engine compartment CAN
LIN Local interconnect network
