Tail Lamp: Description and Operation

GF82.10-P-2018RC Rear Lamp Unit Component Description

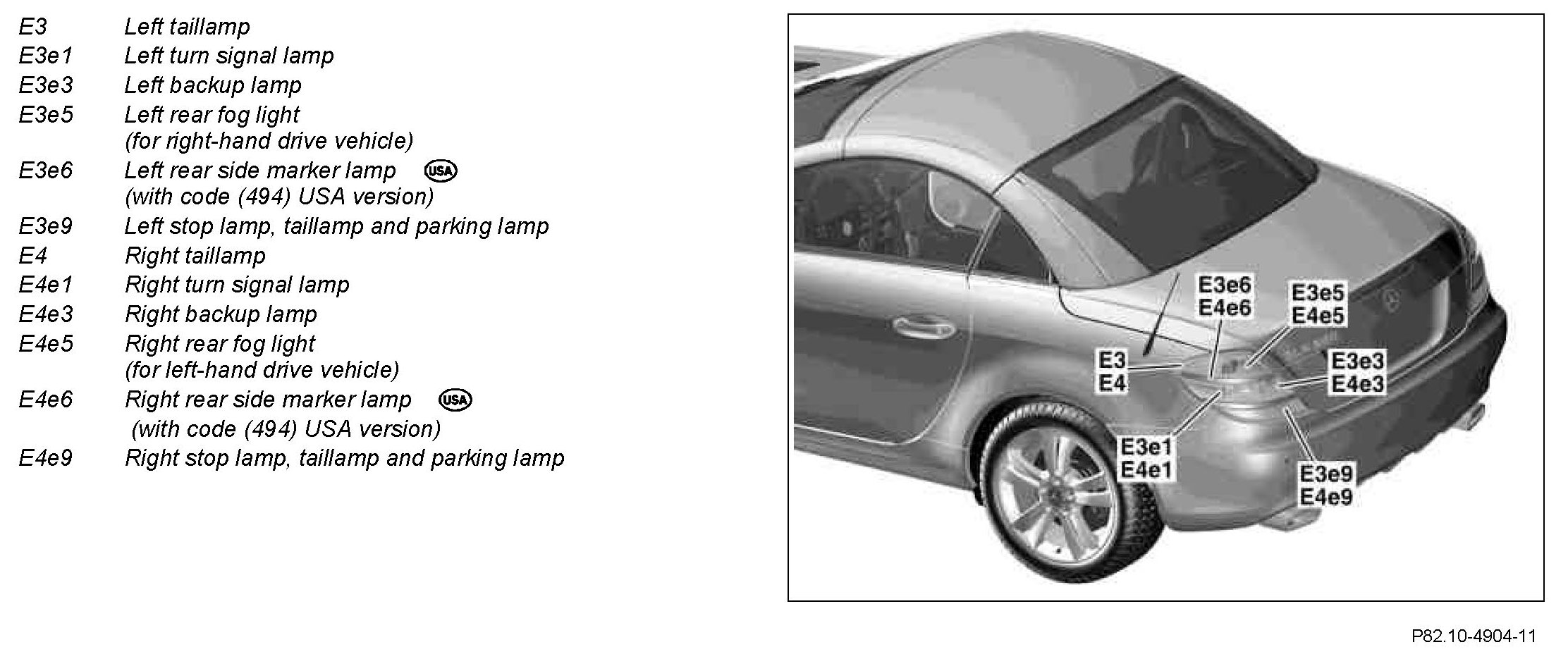

Component Identification:

Location
The taillamps are located on the left and right of the vehicle rear.

Task
The taillamps are used to output all of the exterior lights functions in the rear area of the vehicle.
The taillamps are actuated corresponding to the request from the rear SAM control unit with fuse and relay module (N10/2).

Design
The taillamps consist of a lamp carrier, which is equipped with the corresponding bulbs and the lens.
