Interior - Front Seat Backrest Creaking Noises

Seat backrest noises

Topic number LI91.10-P-048944

Version 1

Design group 91.10 Front seats

Date 03-24-2010

Validity Model series 204 up to VIN A 184623; F 198707; R 058616. Without AMG

Reason for change Clean point added to validity / Supersedes DTB S-B-91. 10/112f

Reason for block

Complaint:

Creaking noises from front seat backrest.

Cause:

Non-woven cloth sacking causes noises in area of seam and against wire frame.

Remedy:

Install new overlay with colored anti-creak coating (refer to WIS document AR91.18-P-1820CW).

Non-woven cloth sacking may not be reinstalled.

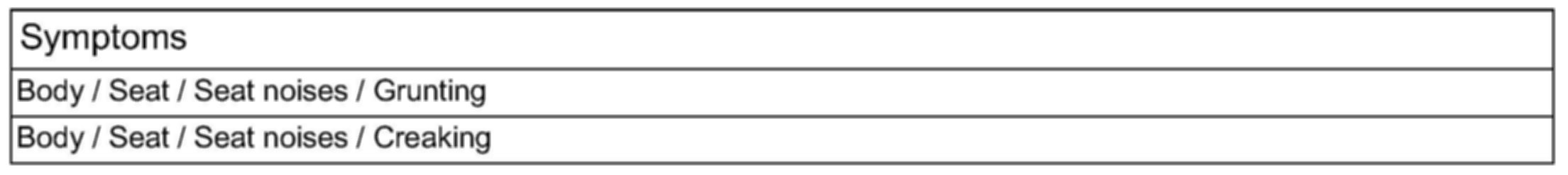

Symptoms

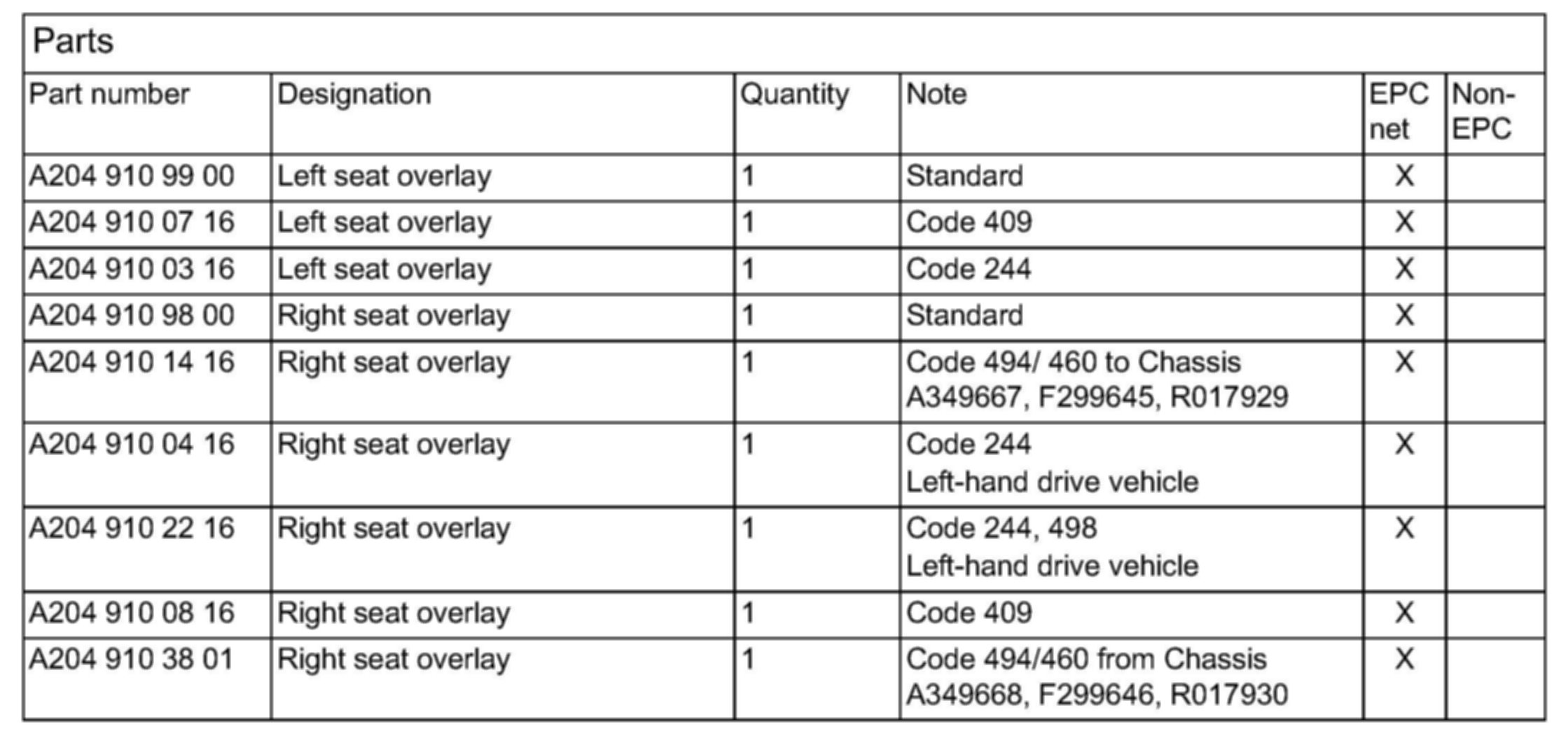

Parts

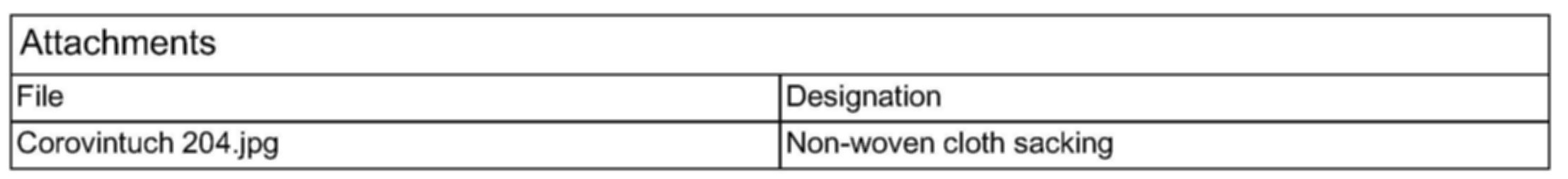

Attachments

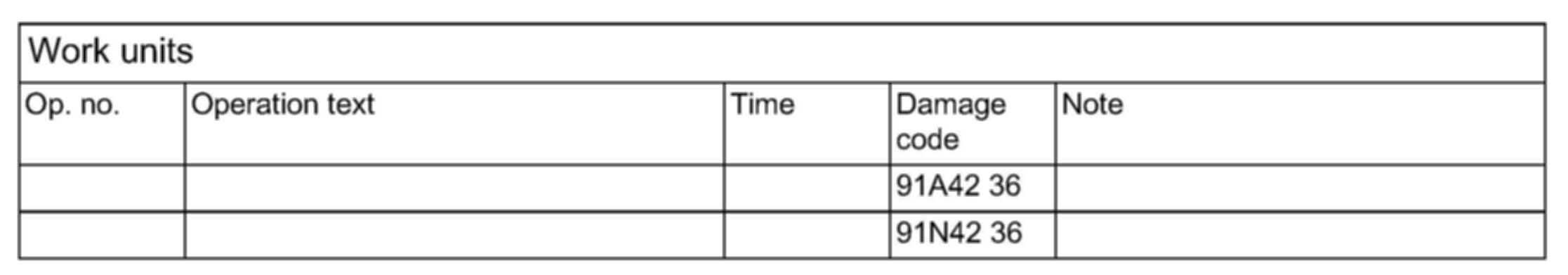

Work units

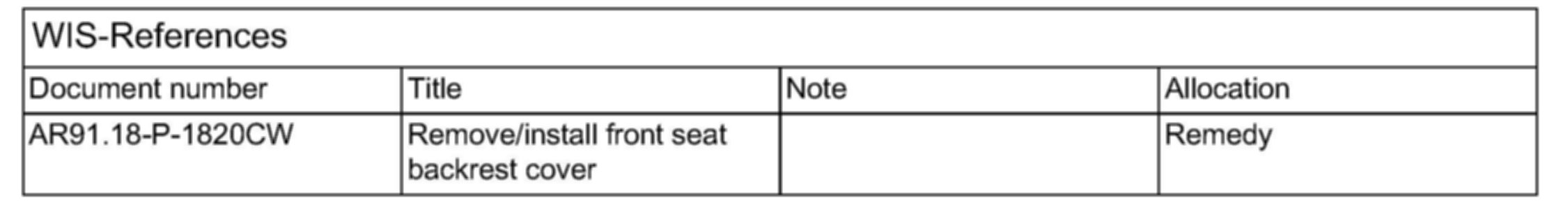

WIS-References

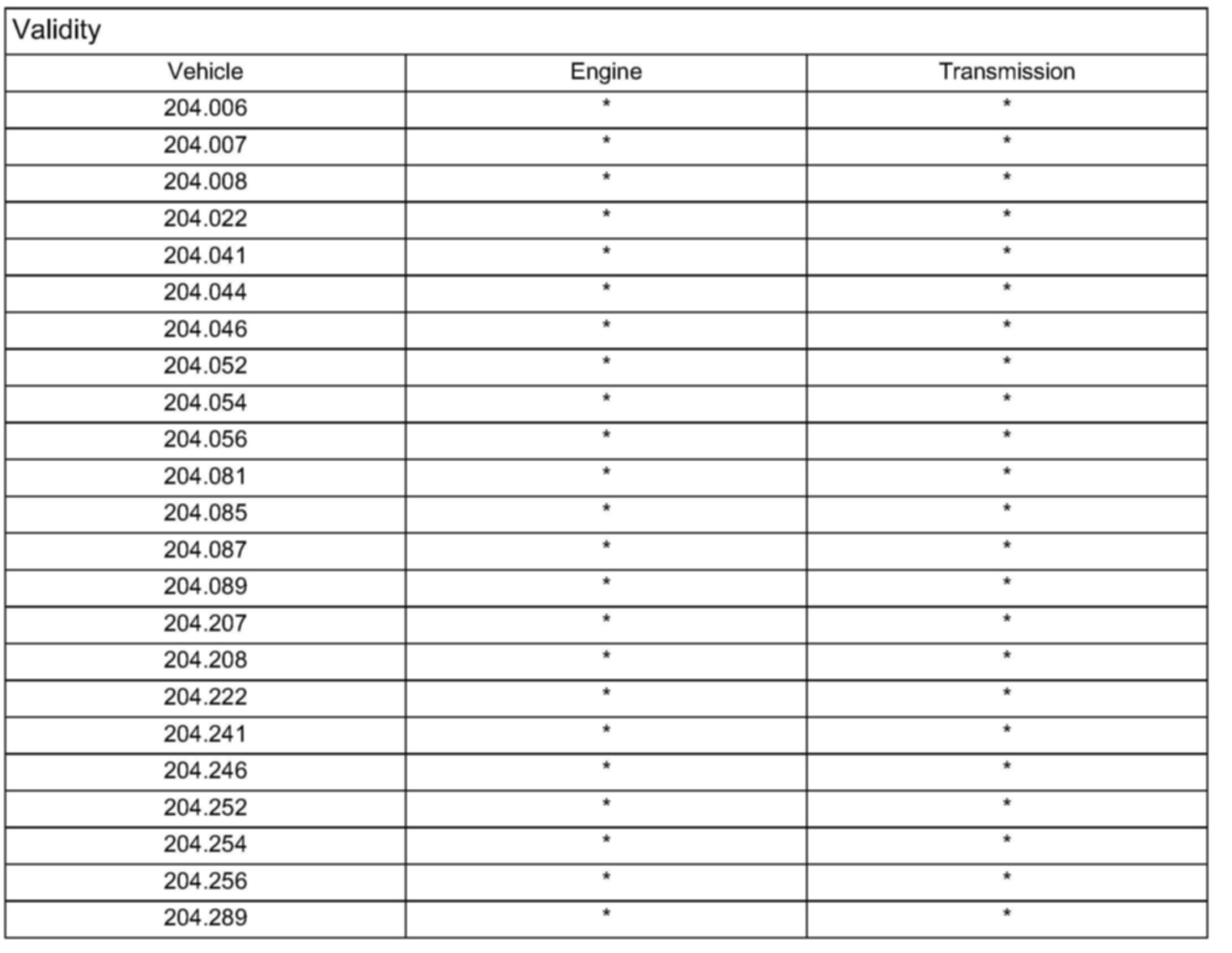

Validity

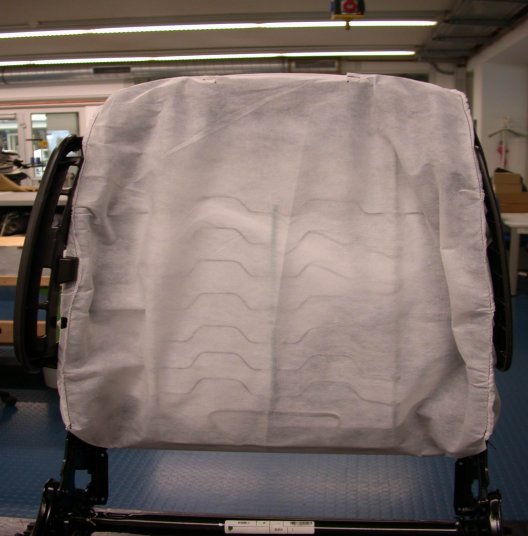

Attachment - Non-woven cloth sacking
