Expansion Valve: Service and Repair



AR83.30-P-5520CW Remove/Install Expansion Valve


Component Identification:

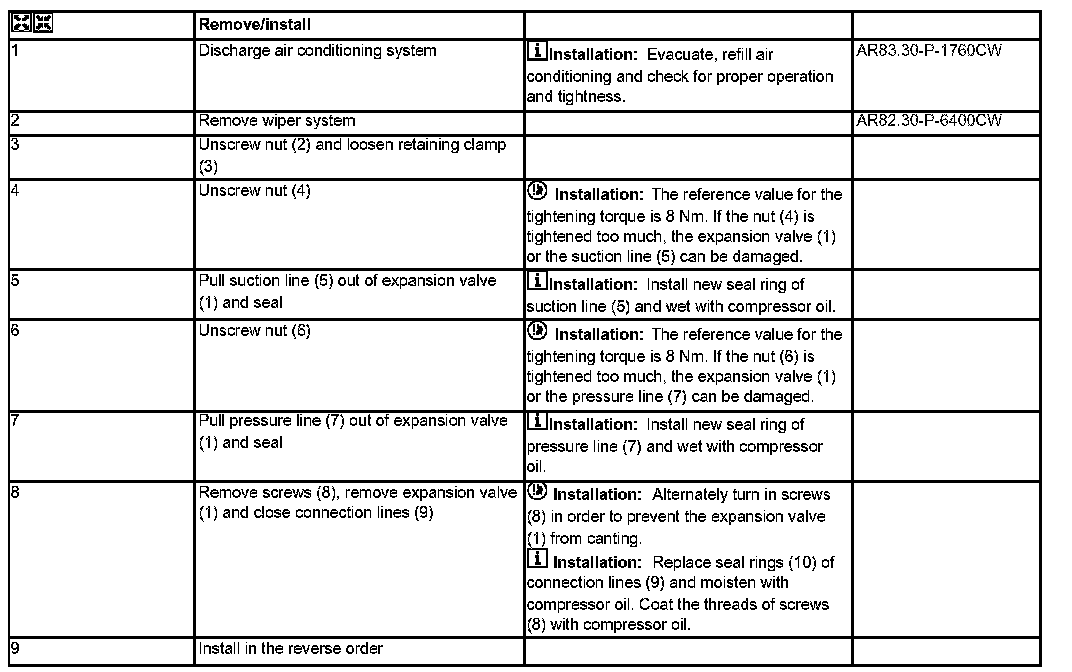

Steps 1 - 9:
