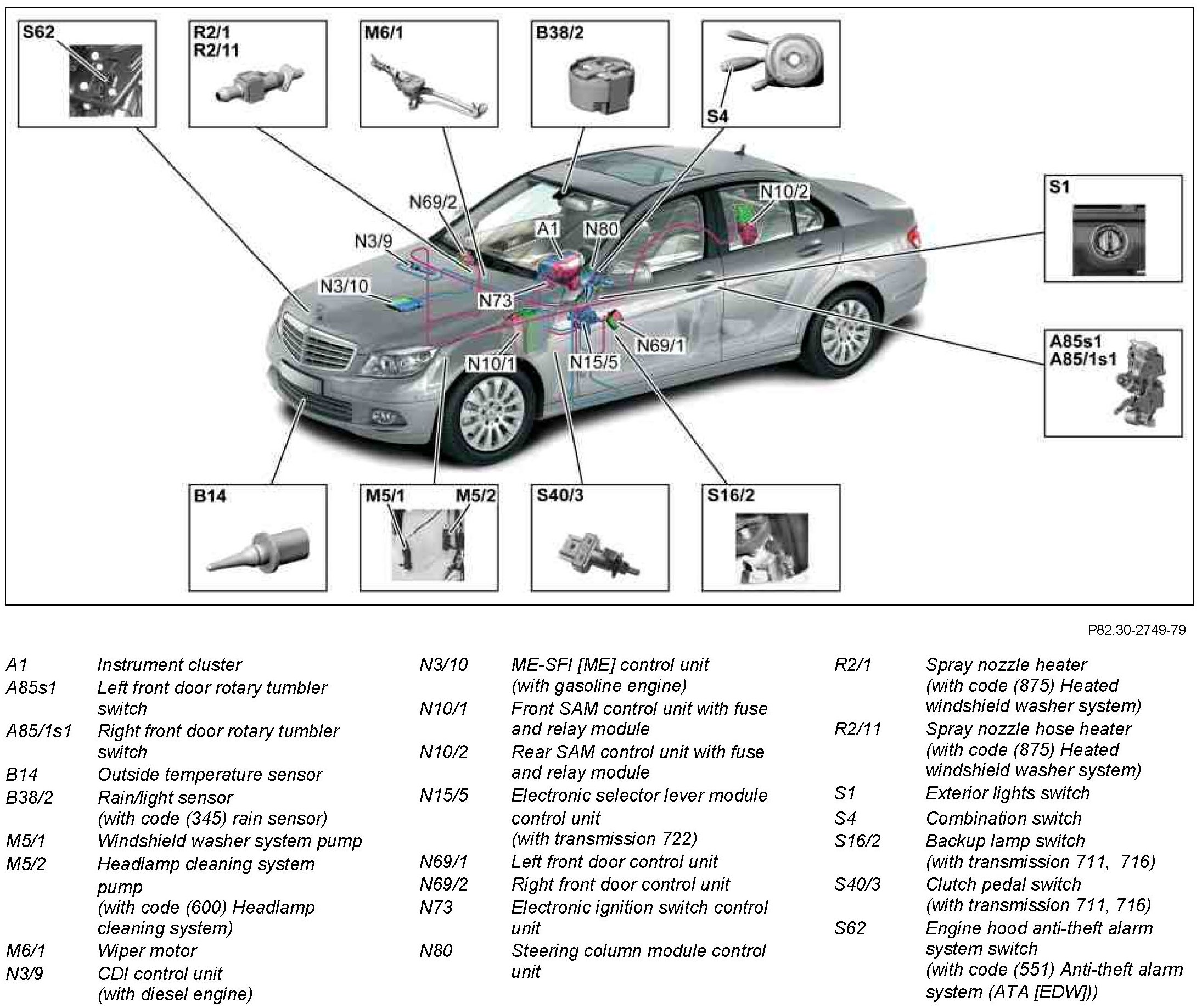

GF82.30-P-0003-01CE Wiper System (WSA), Location of Components
GF82.30-P-0003-01CE Wiper System (WSA), Location of Components
GF82.30-P-0003-01CE Wiper System (WSA), Location Of Components
Component Identification:
