GF54.65-P-0003-02CE Parktronic Block Diagram
GF54.65-P-0003-02CE Parktronic Block Diagram

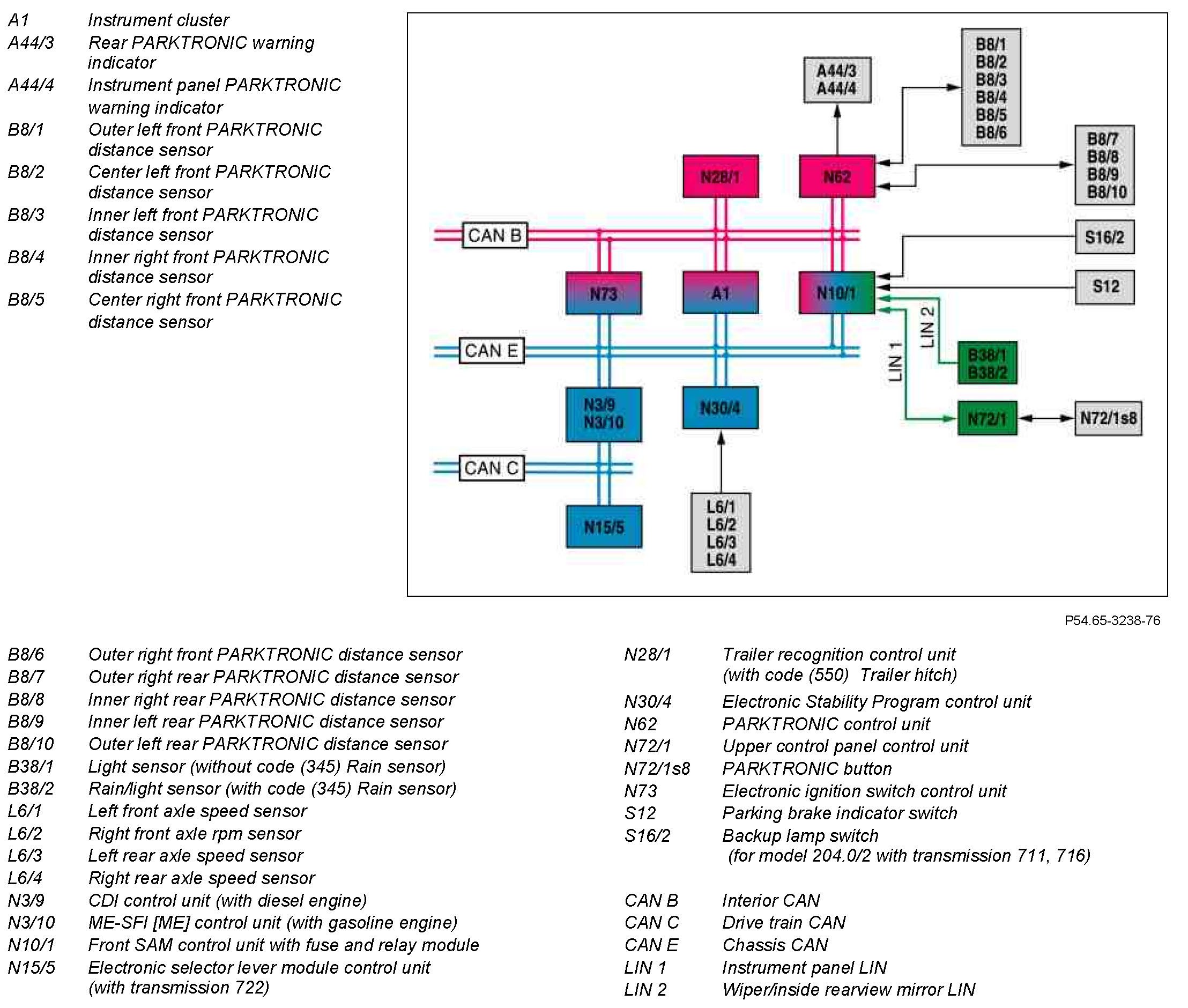

GF54.65-P-0003-02CE PARKTRONIC Block Diagram
- with CODE (220) PARKTRONIC
Component Identification:
