AZ82.85-P-0004CX Retrofit Universal Media Interface

AZ82.85-P-0004CX Retrofit Universal Media Interface
- MODEL 204.0## /2## (except 204.077 /277) 1# up to 28.2.11
- up to model year 2011
- with CODE (523) MB Audio 20 radio
- with CODE (510) Audio 20 with CD changer
- except CODE (359) TELE AID emergency call system

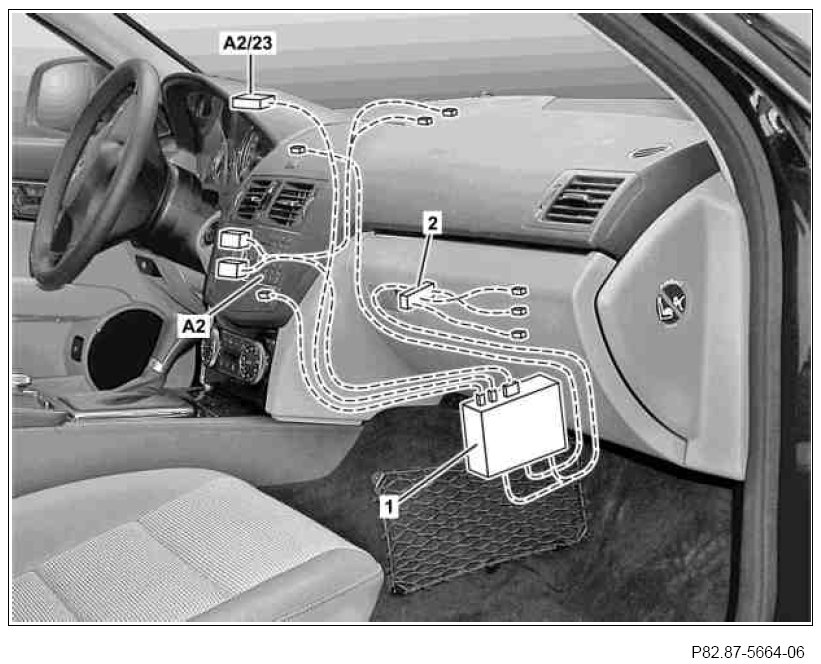

installation kit with connecting cable






1 Universal Media Interface control unit
2 Connecting cable
A2 Radio
A2/23 GPS antenna (retrofit)















115 589 03 59 00, Long wedge
