GF82.88-P-5000CWJ Electronic Toll Collection (ETC) Control Unit Component Description

GF82.88-P-5000CWJ Electronic Toll Collection (ETC) Control Unit Component Description
- with CODE (498) Japan version

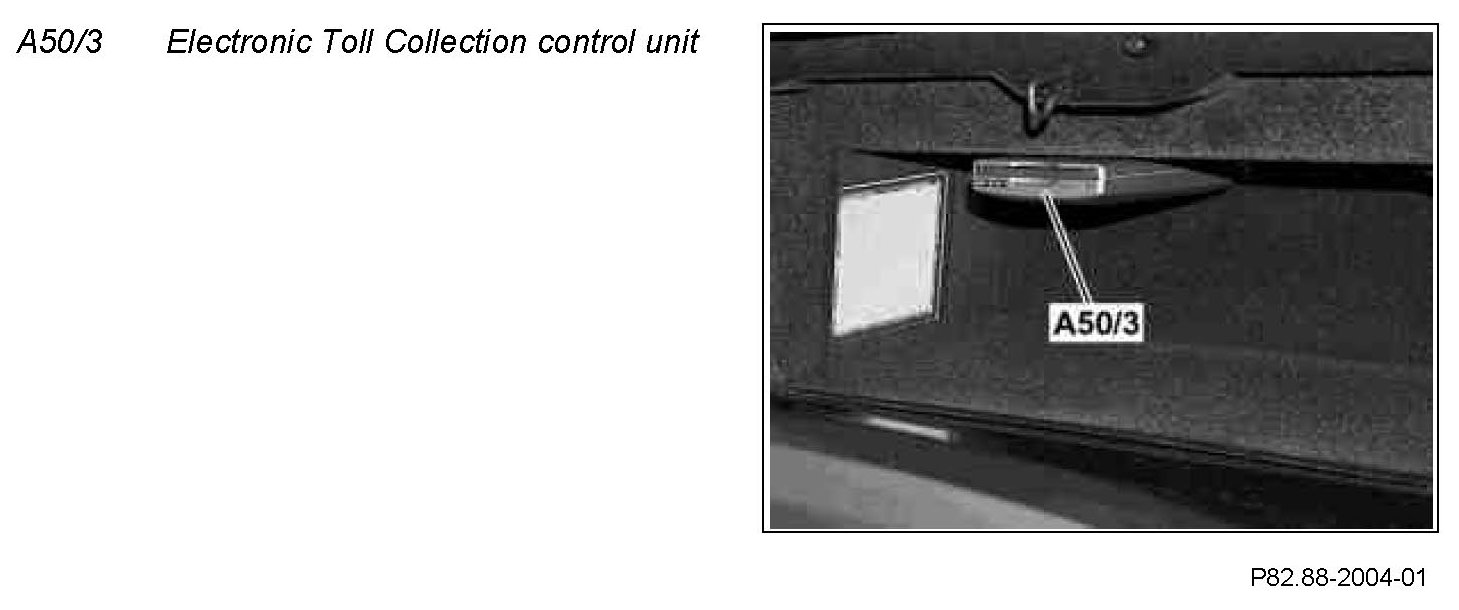

Component Identification:

Location
The Electronic Toll Collection control unit is located in the glove compartment are integrated in the ABC front axle valve unit.

Task
^ Data exchange (transmission and reception) over the Electronic Toll Collection (ETC) antenna (A2/94) with the toll collect station.
^ Communication with the COMAND controller unit (A40/3) over an RS-232C interface.
^ Location of the ETC card, to ensure that automatic payment is possible.
