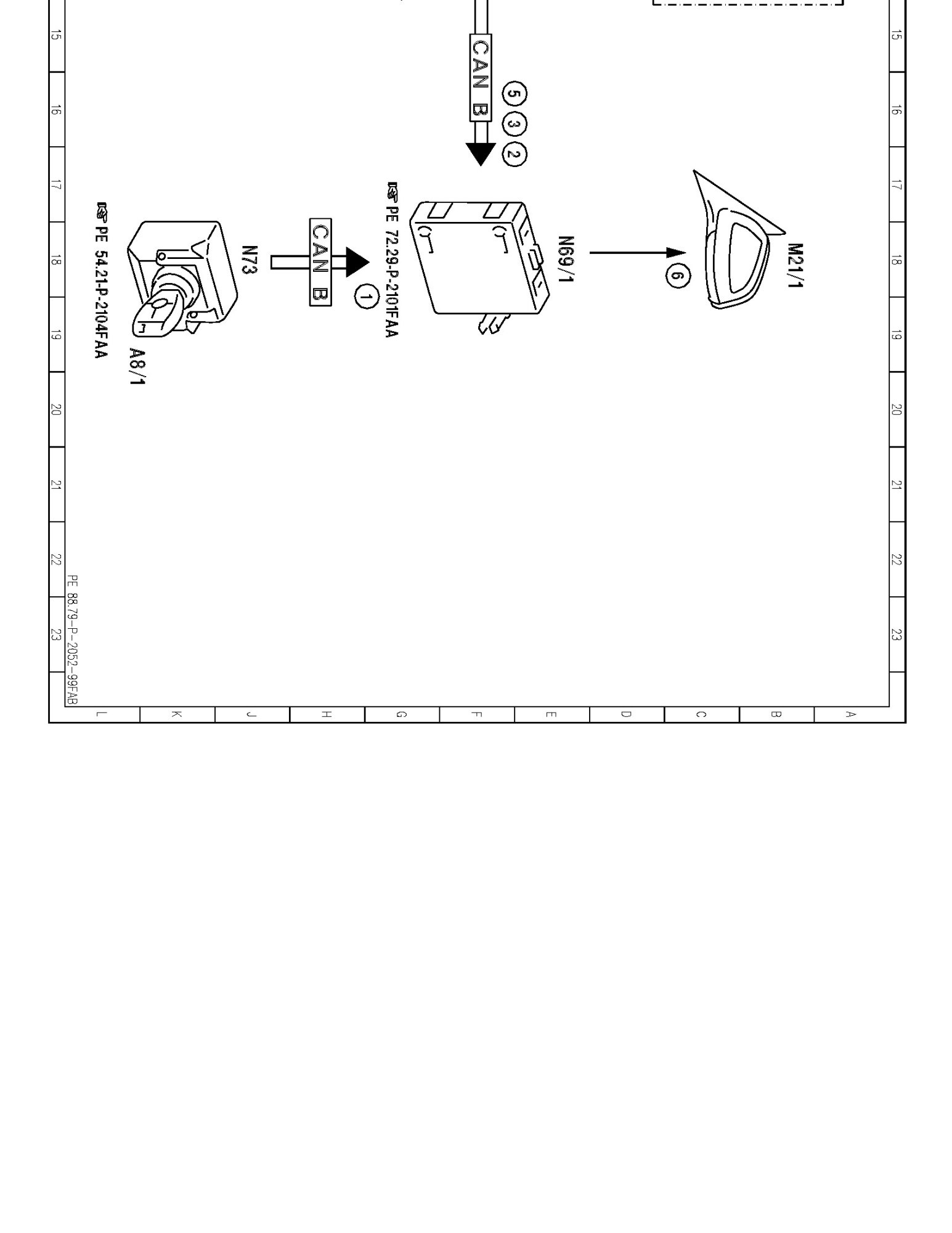

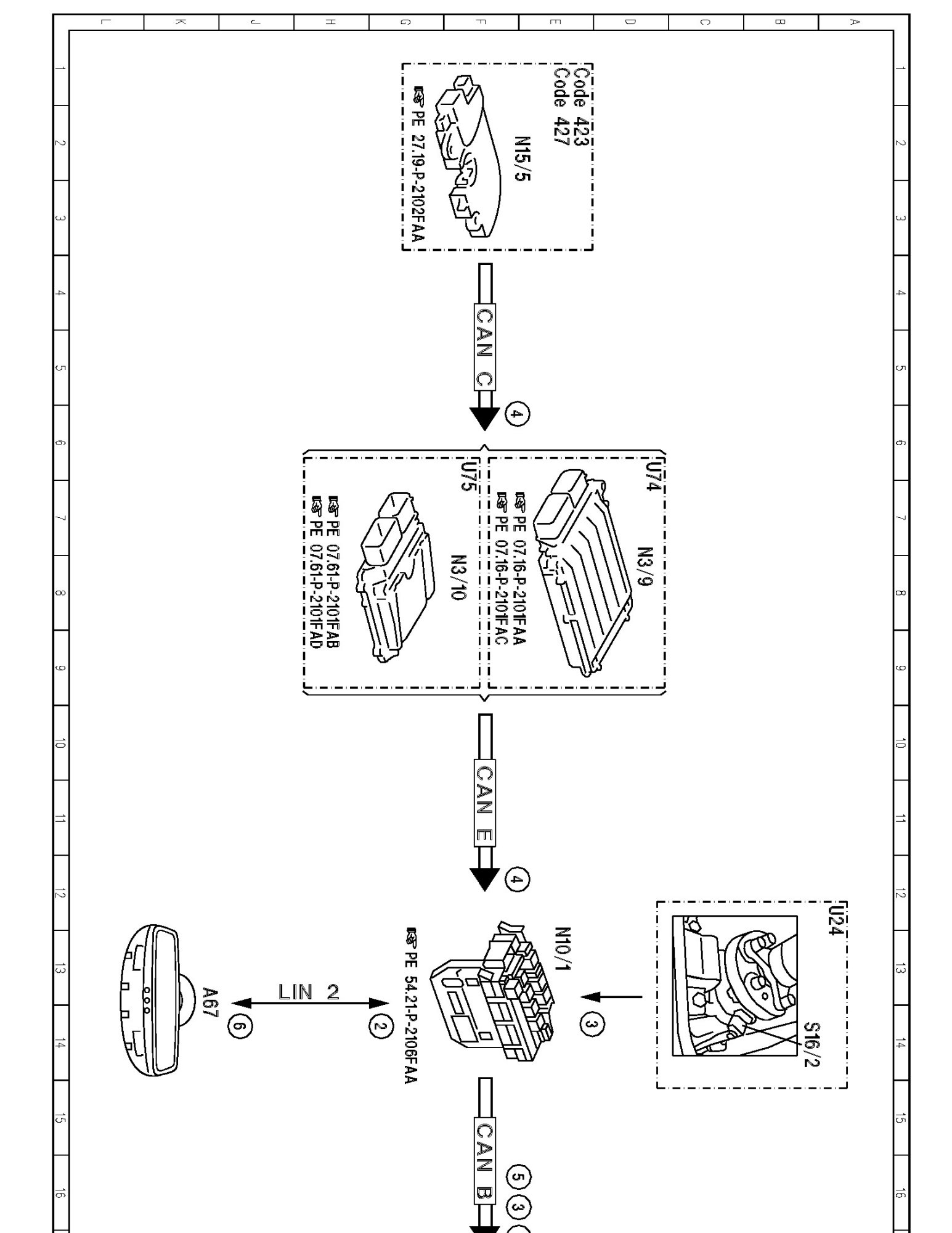

PE88.79-P-2052FAB Electrical Function Schematic For Automatic Mirror Dimming

PE88.79-P-2052FAB Electrical Function Schematic For Automatic Mirror Dimming
- with CODE (249) Automatically dimming inside rearview mirror and outside mirror including fold-in outside mirrors














Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
