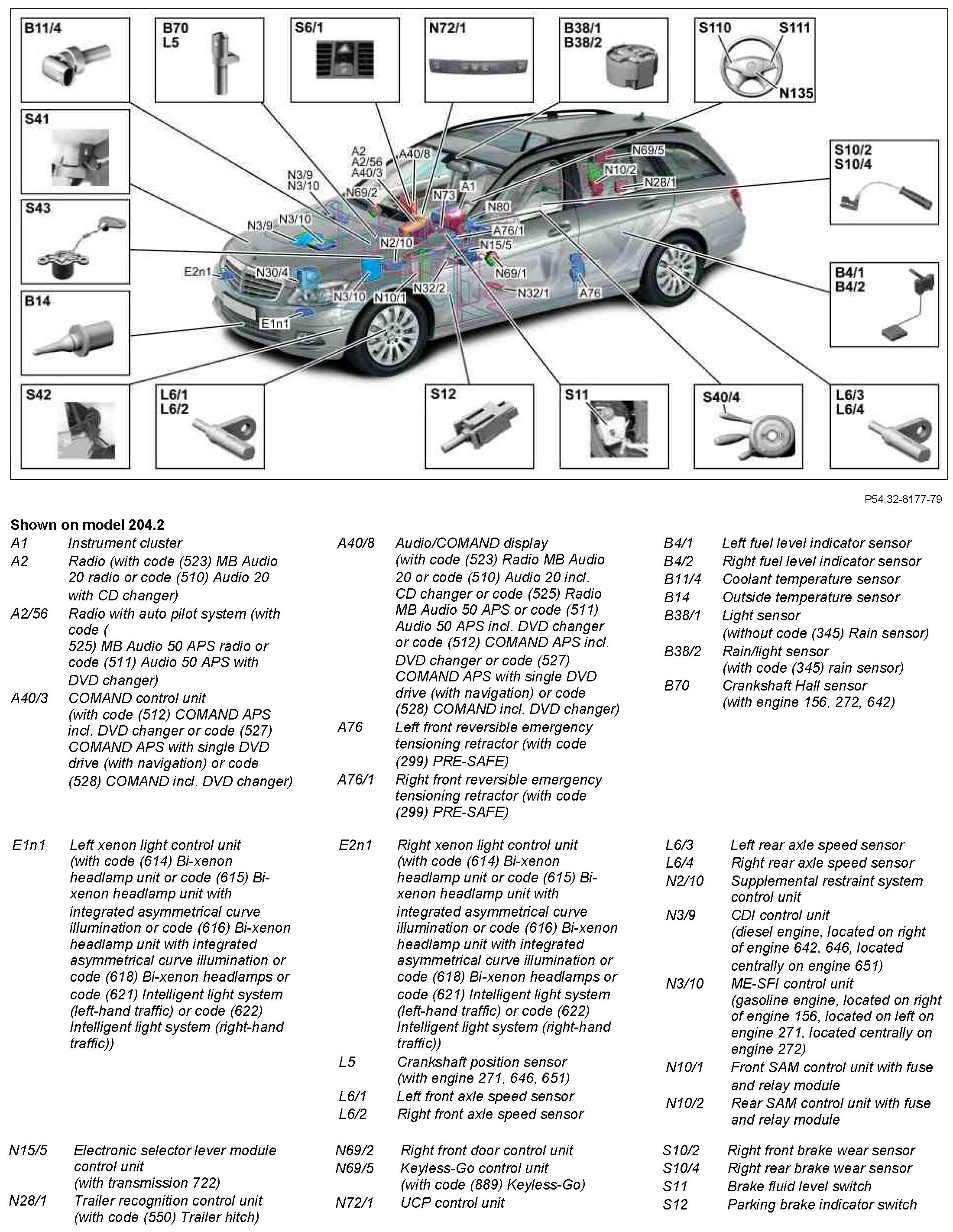

GF54.30-P-0002-04CE Instrument Cluster (IC), Location of Components

GF54.30-P-0002-04CE Instrument Cluster (IC), Location Of Components
- as of model year 09

Component Identification:

On model 204.0/9 up to 30.11.09 with code (470) Tire pressure monitor (base) the tire pressure monitor control unit (N88) is located on the left of the trunk.

On model 204.0/9 as of 1.12.09 with code (475) Tire pressure monitor (Premium) the tire pressure monitor control unit (N88) is located on the main floor above the rear axle.
