PE91.60-P-2105ZZZ Wiring Diagram For Airbag Control Unit



Wiring Diagram For Airbag Control Unit PE91.60-P-2105ZZZ
- with CODE (290) Windowbag
- with CODE (292) Left and right front sidebag
- with CODE (293) Left and right rear sidebag
- control unit N2/10

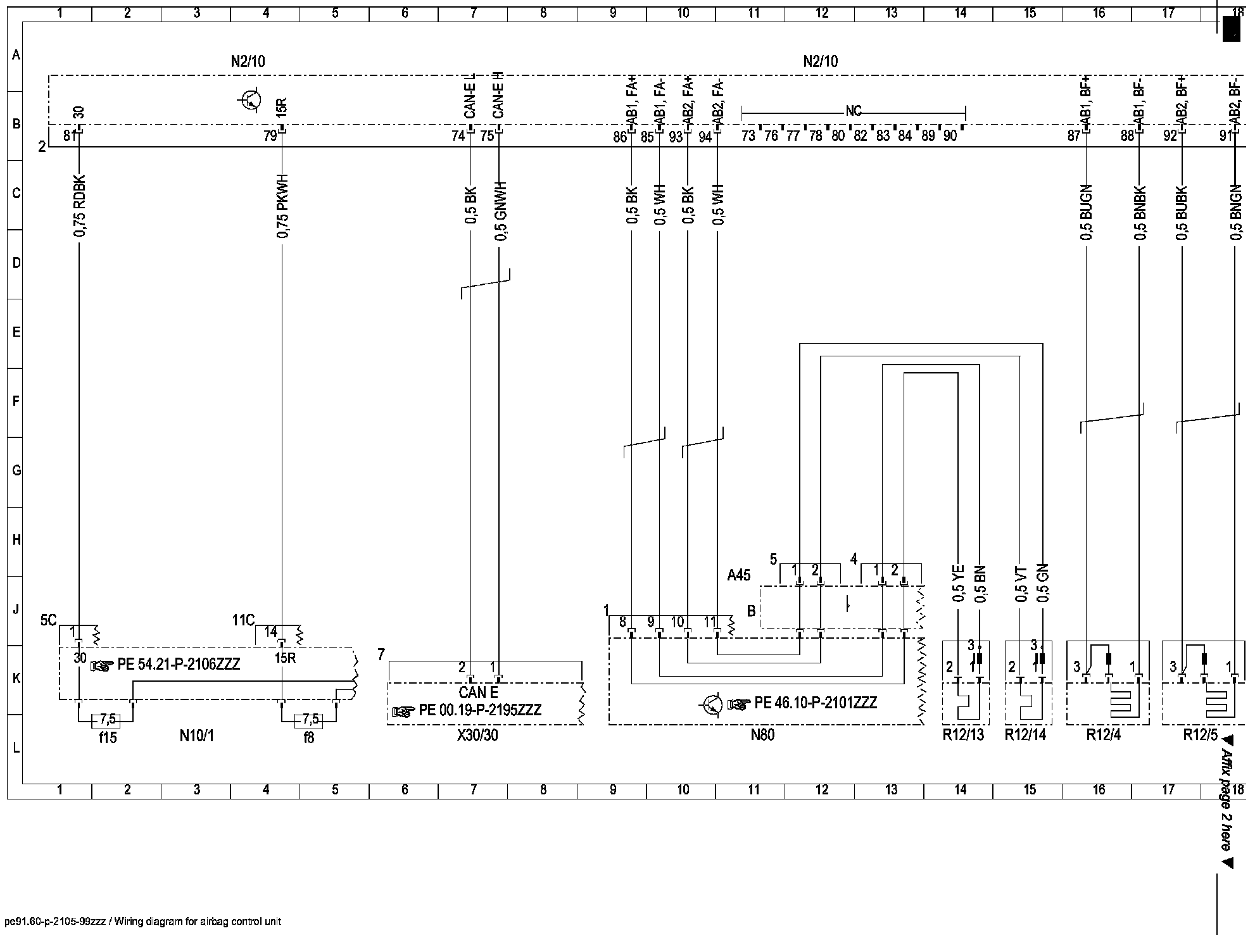

Wiring Diagram (Part 1):

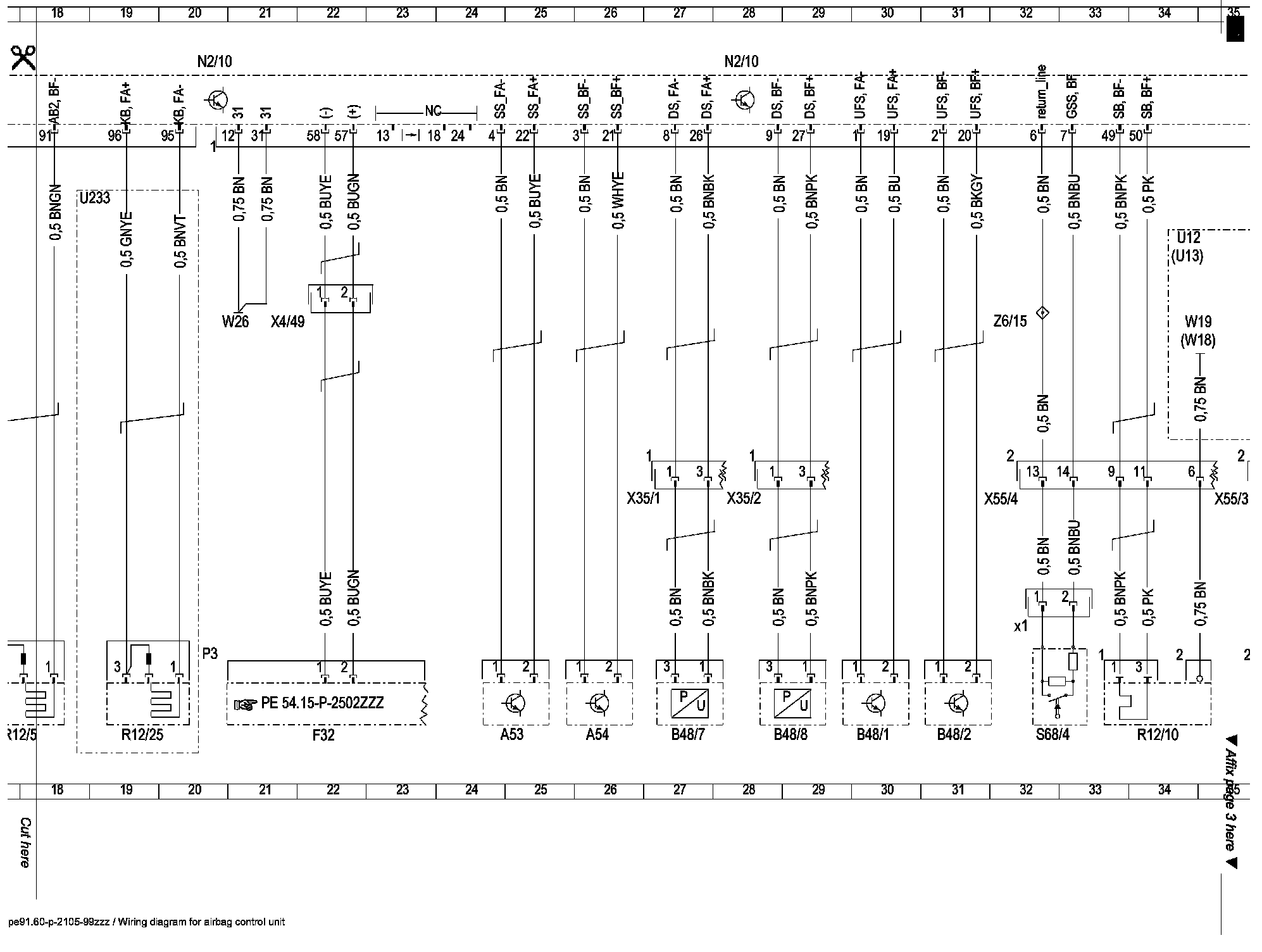

Wiring Diagram (Part 2):

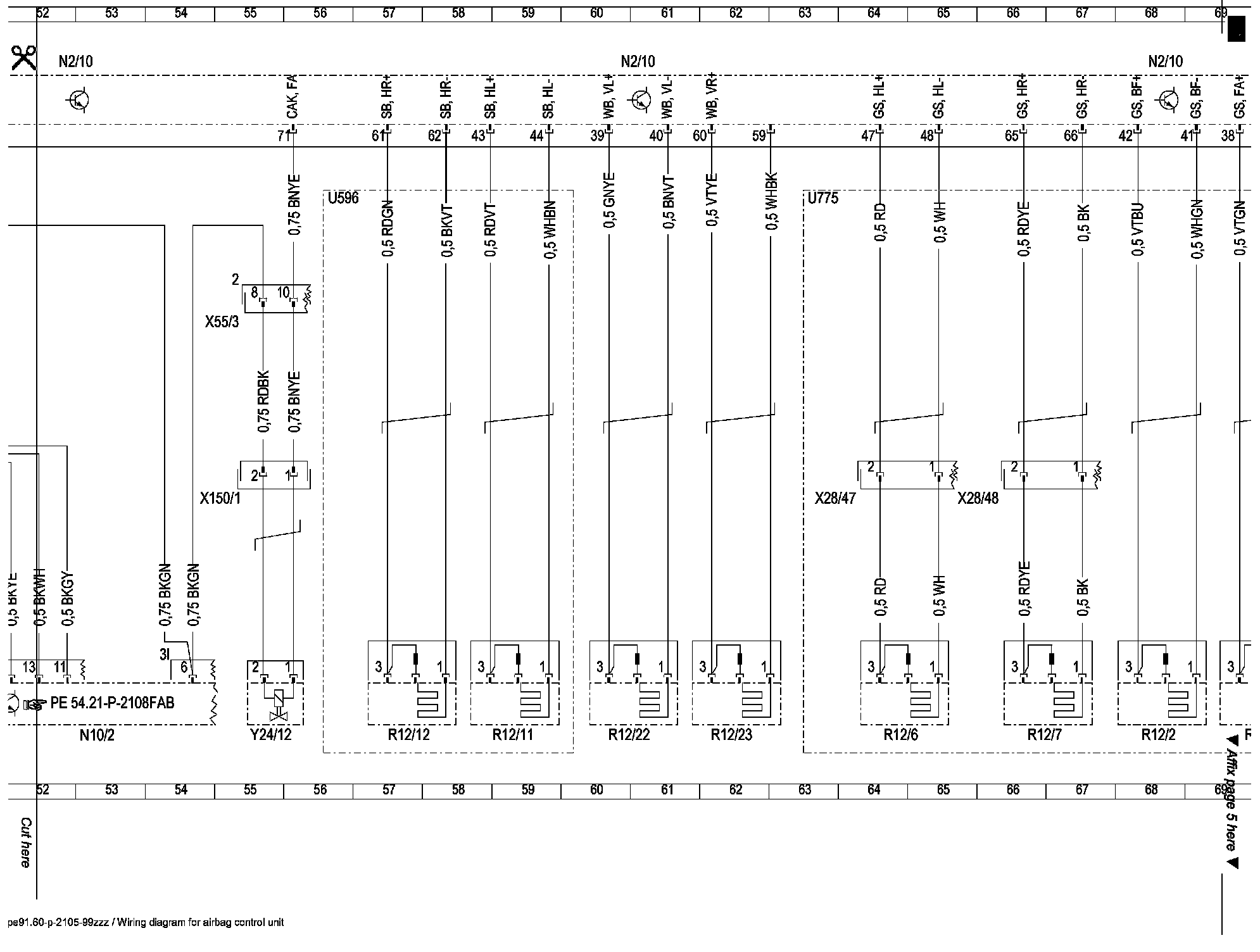

Wiring Diagram (Part 3):





Wiring Diagram (Part 4):





Wiring Diagram (Part 5):

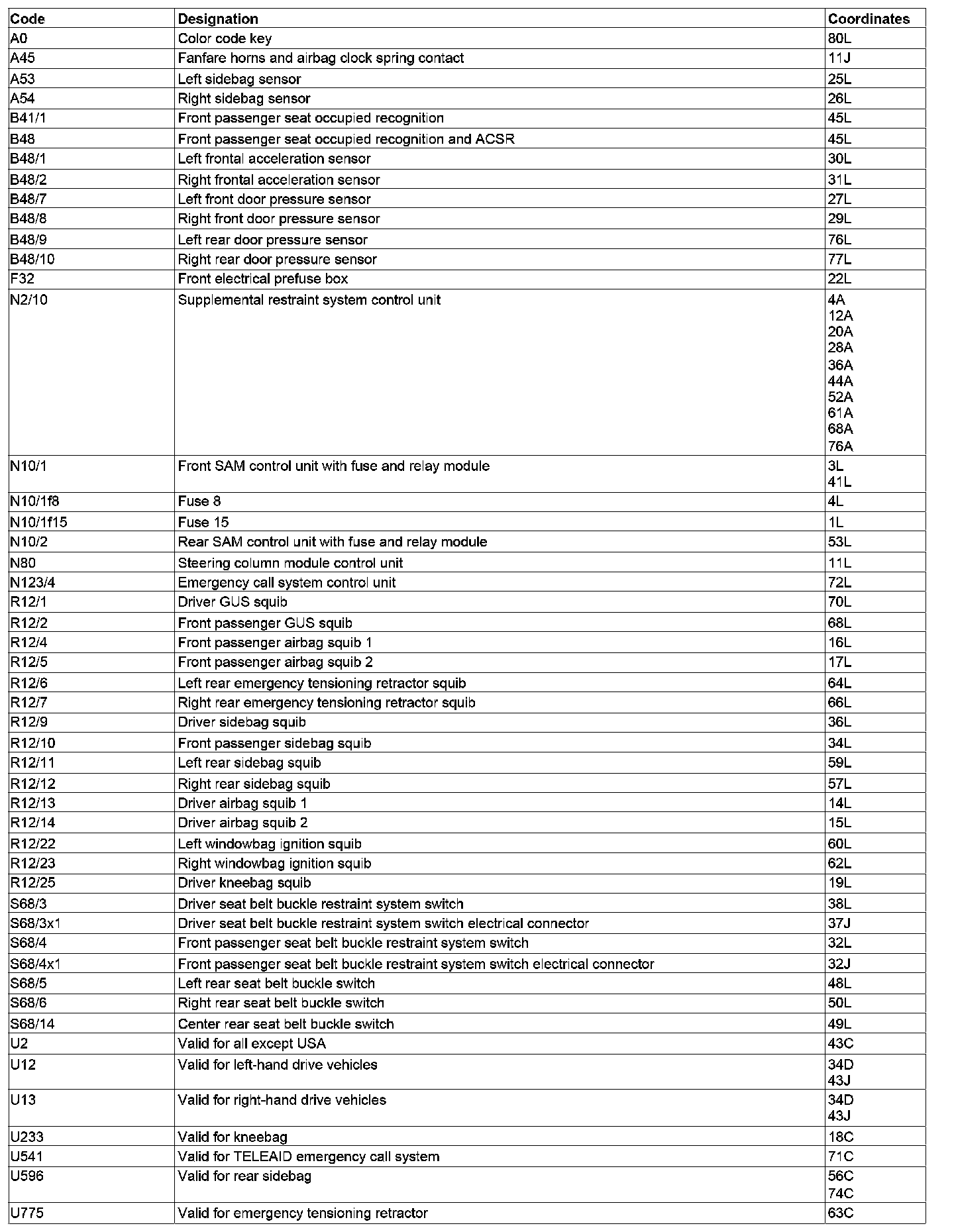

Component Description/Coordinates, A0 To U775:





Component Description/Coordinates, U848 To CAN E:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
