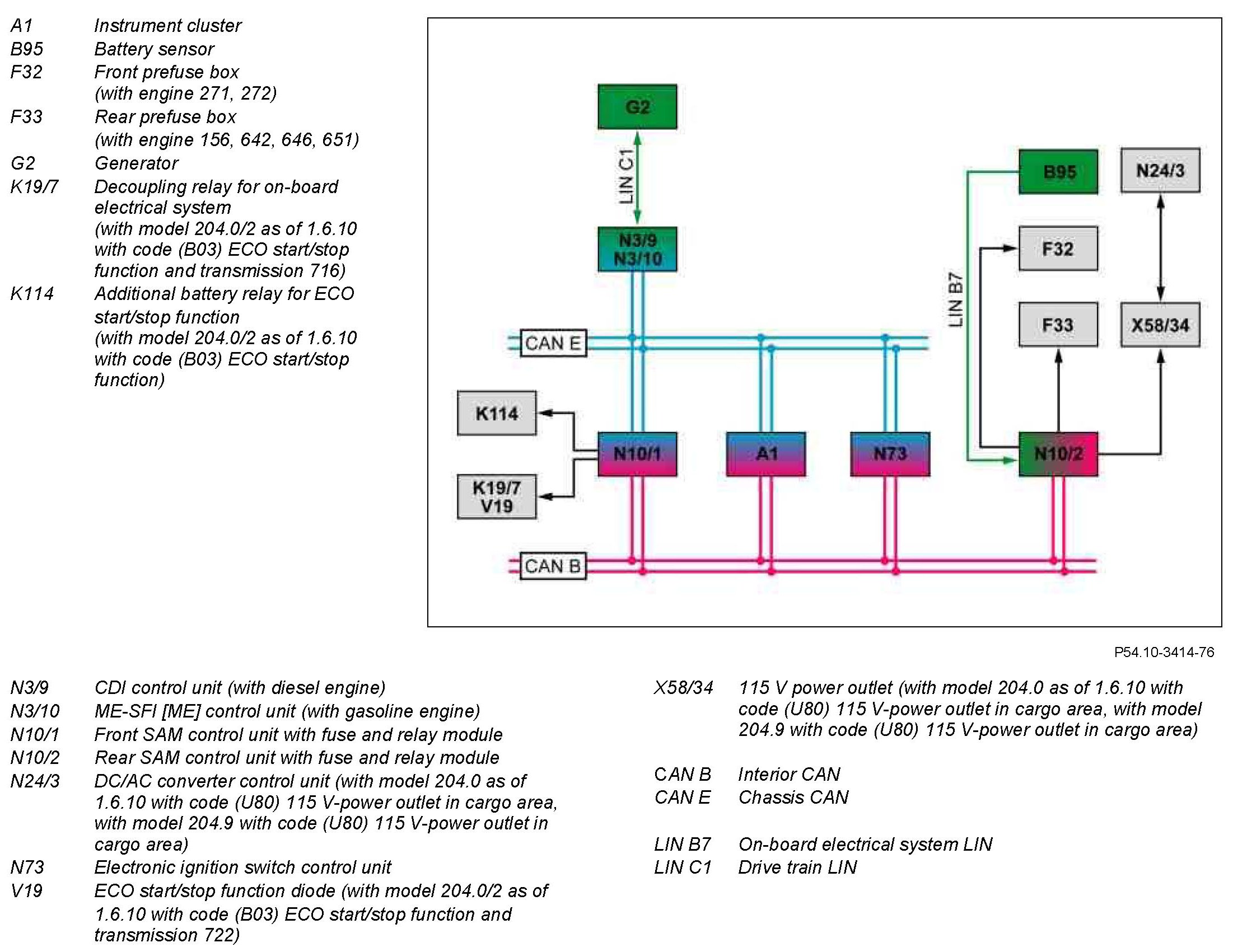

GF54.10-P-0003-02CE Energy Management, Block Diagram
GF54.10-P-0003-02CE Energy Management, Block Diagram
GF54.10-P-0003-02CE Energy Management, Block Diagram
- as of model year 09
Component Identification:
