Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2010
>>
C 350 4MATIC (204.087) (CAN) V6-3.5L (272.971)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Service Port HVAC
>>
Service and Repair
Service Port HVAC: Service and Repair
AR83.30-P-6523CW Remove/Install Valve Insert On Service Valve

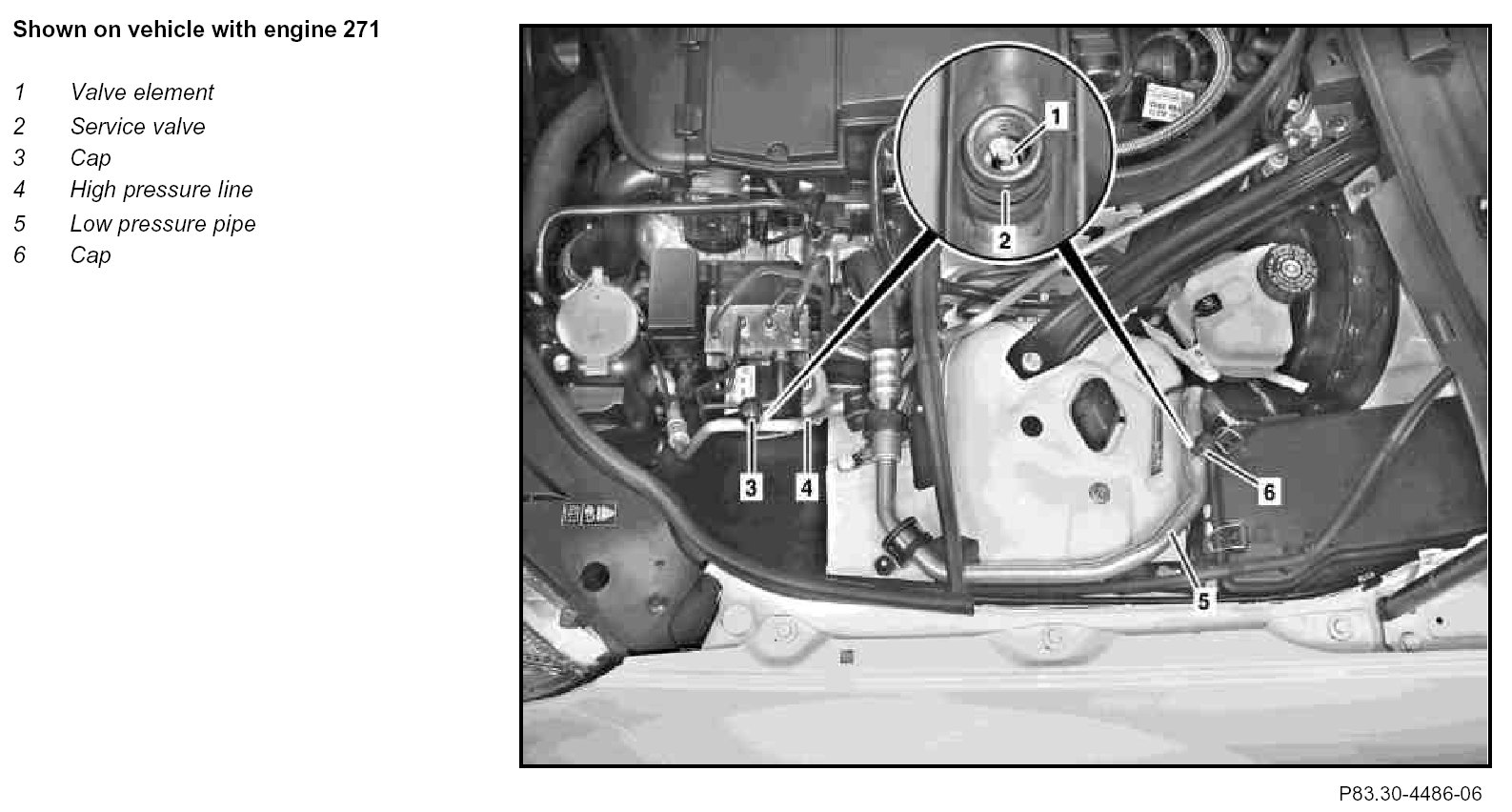

Component Identification:

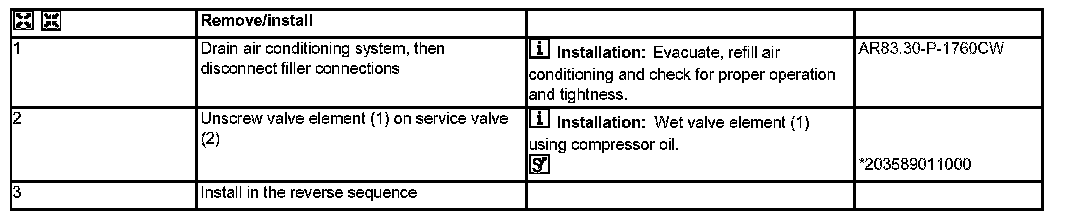

Steps 1 - 3:
Special Tools:
