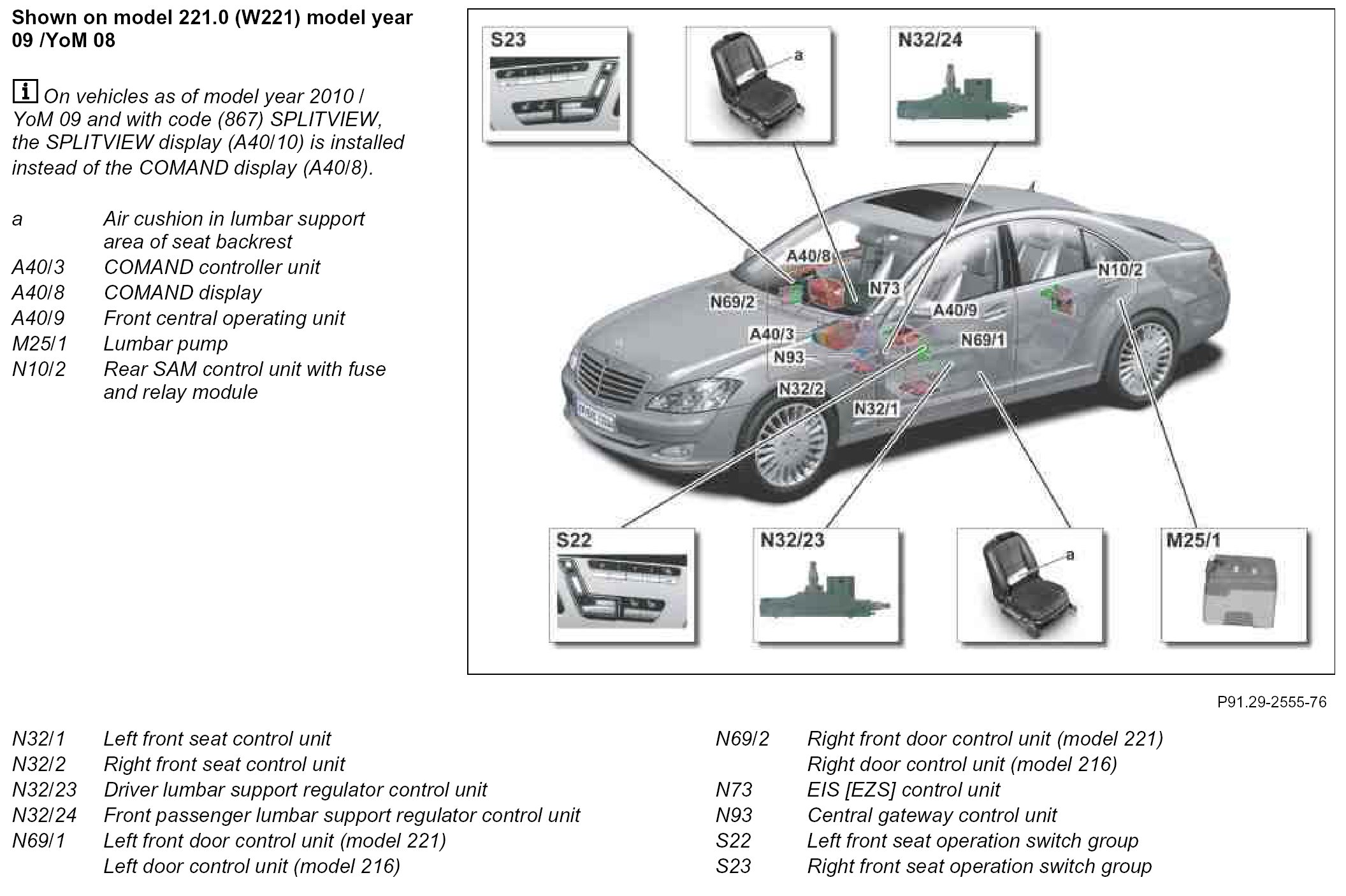

GF91.29-P-0008-01LE Location of Components For Lumbar Adjustment



GF91.29-P-0008-01LE Location Of Components For Lumbar Adjustment
- except CODE (409) Left/right front multicontour seat
- except CODE (432) Left and right dynamic multicontour seat

Component Identification:
