CL 550 4MATIC (216.386) V8-5.5L (273.961)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Engine Lubrication
>>
Oil Pan
>>
Specifications
>>
AR01.45-P-7500-06SX Bolt Plan For Oil Pan
AR01.45-P-7500-06SX Bolt Plan For Oil Pan
AR01.45-P-7500-06SX Bolt plan for
oil pan
Oil pan with front sump:
Oil pan with middle sump:

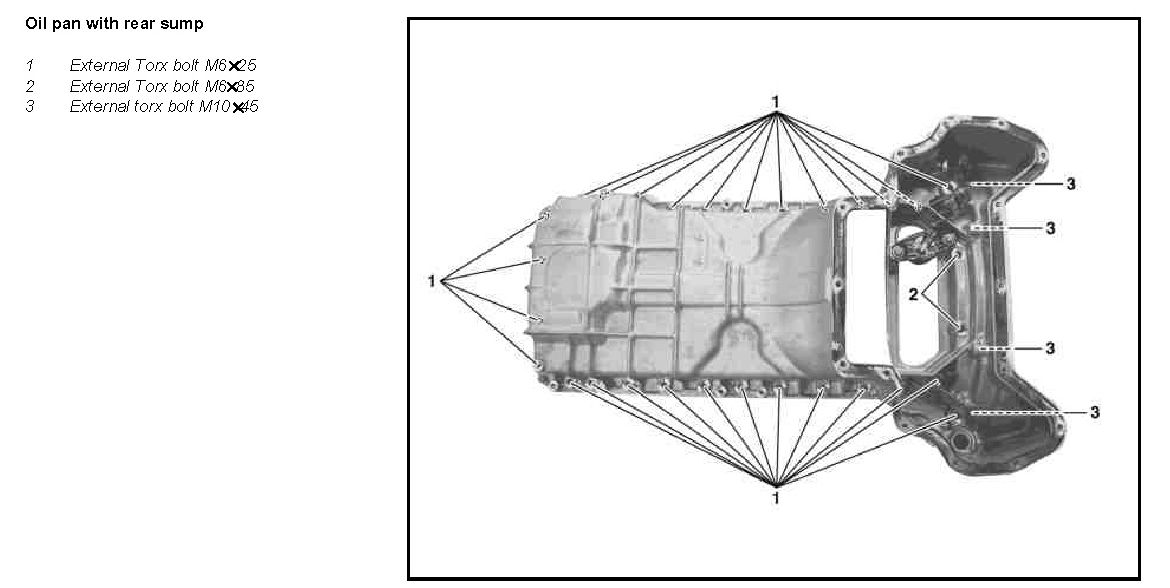

Oil pan with rear sump:
