GF54.30-P-0002-04LE Instrument Cluster (IC), Location of Components
GF54.30-P-0002-04LE Instrument Cluster (IC), Location of Components

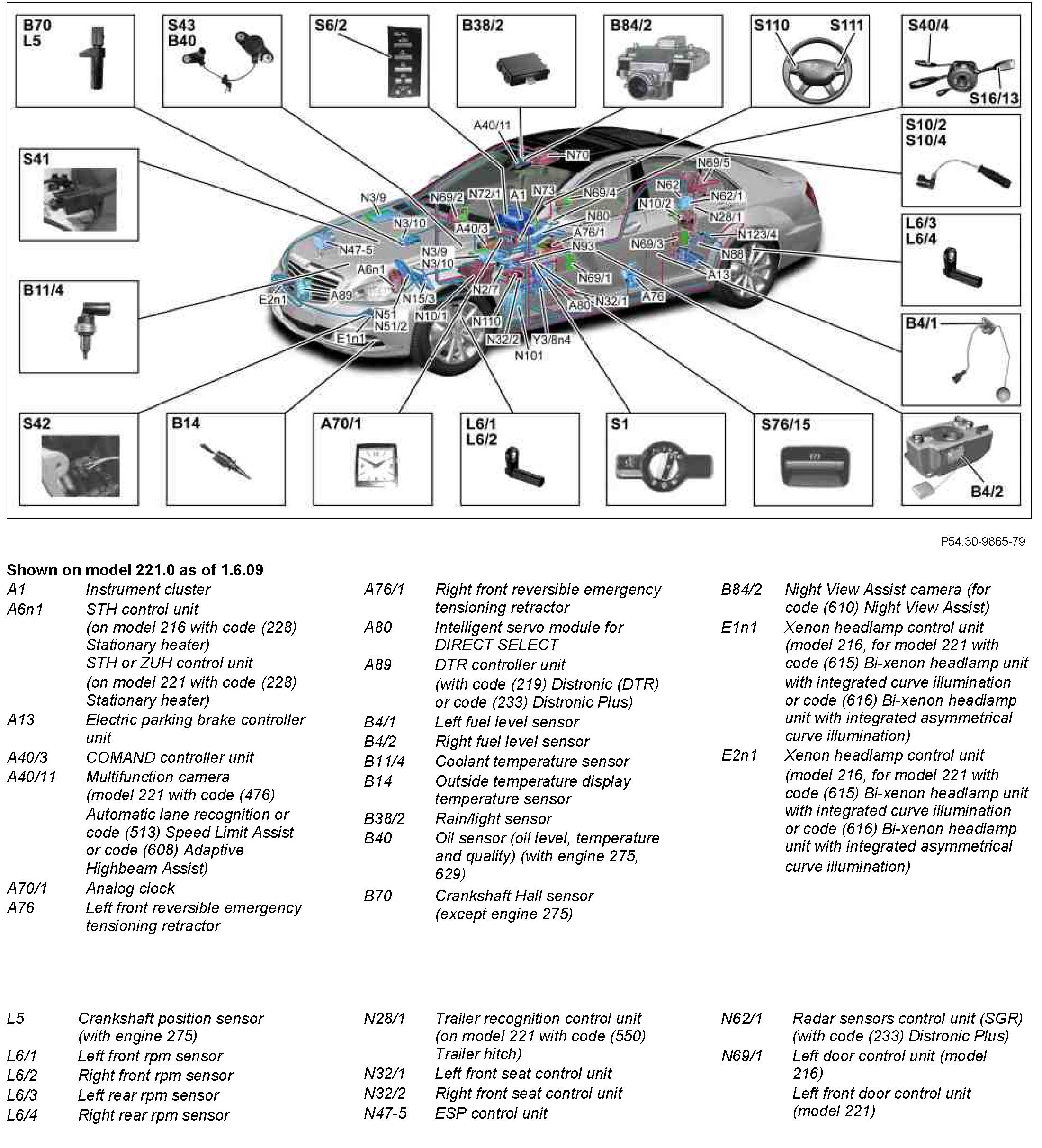

GF54.30-P-0002-04LE Instrument Cluster (IC), Location Of Components
- as of model year 09

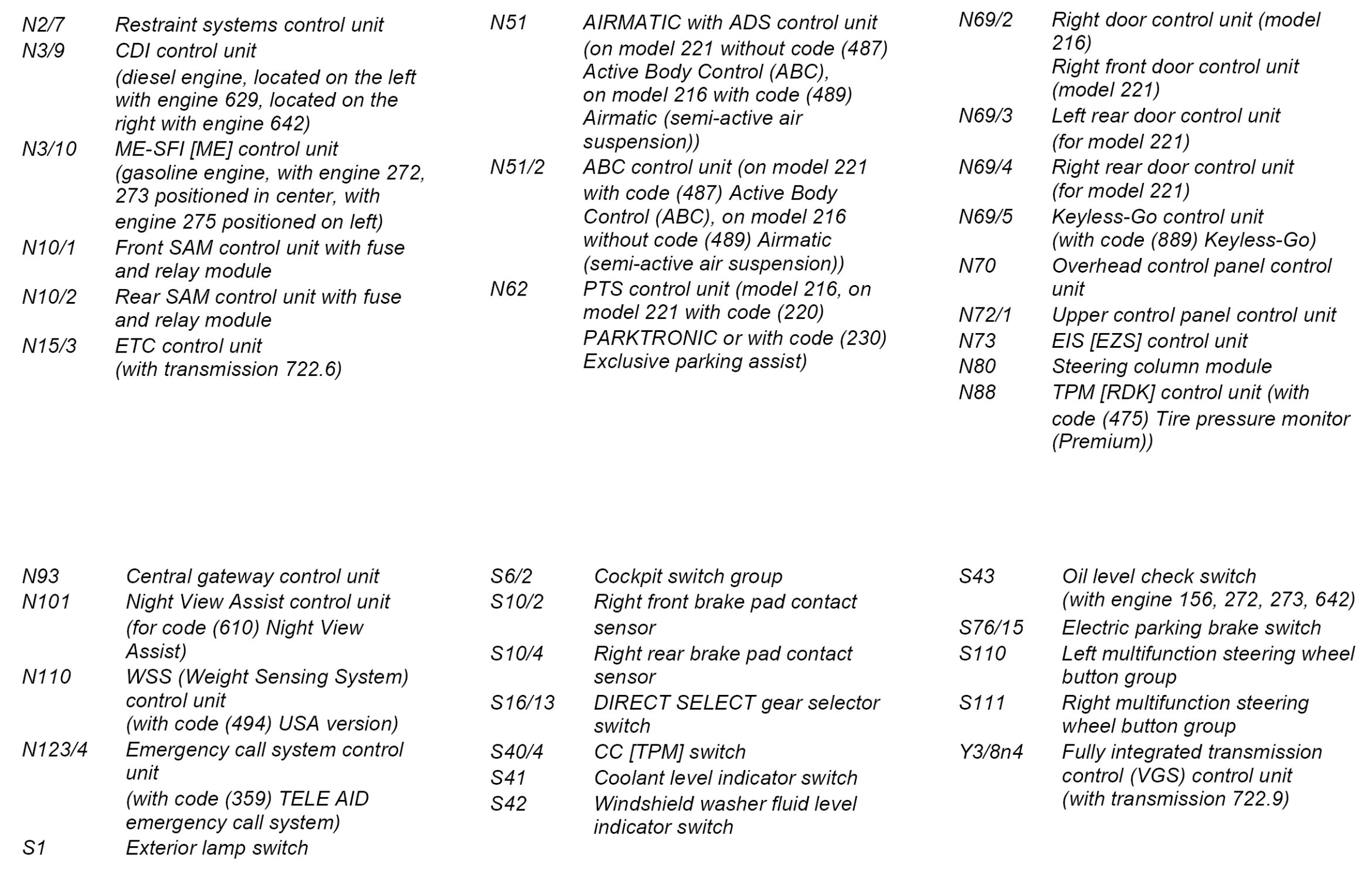

Component Identification:
Component Identification:
