PE07.61-P-2000CAC Wiring Diagram, ME-SFI Fuel Injection and Ignition System

Wiring Diagram, ME-SFI Fuel Injection And Ignition System PE07.61-P-2000CAC
- Fuel system

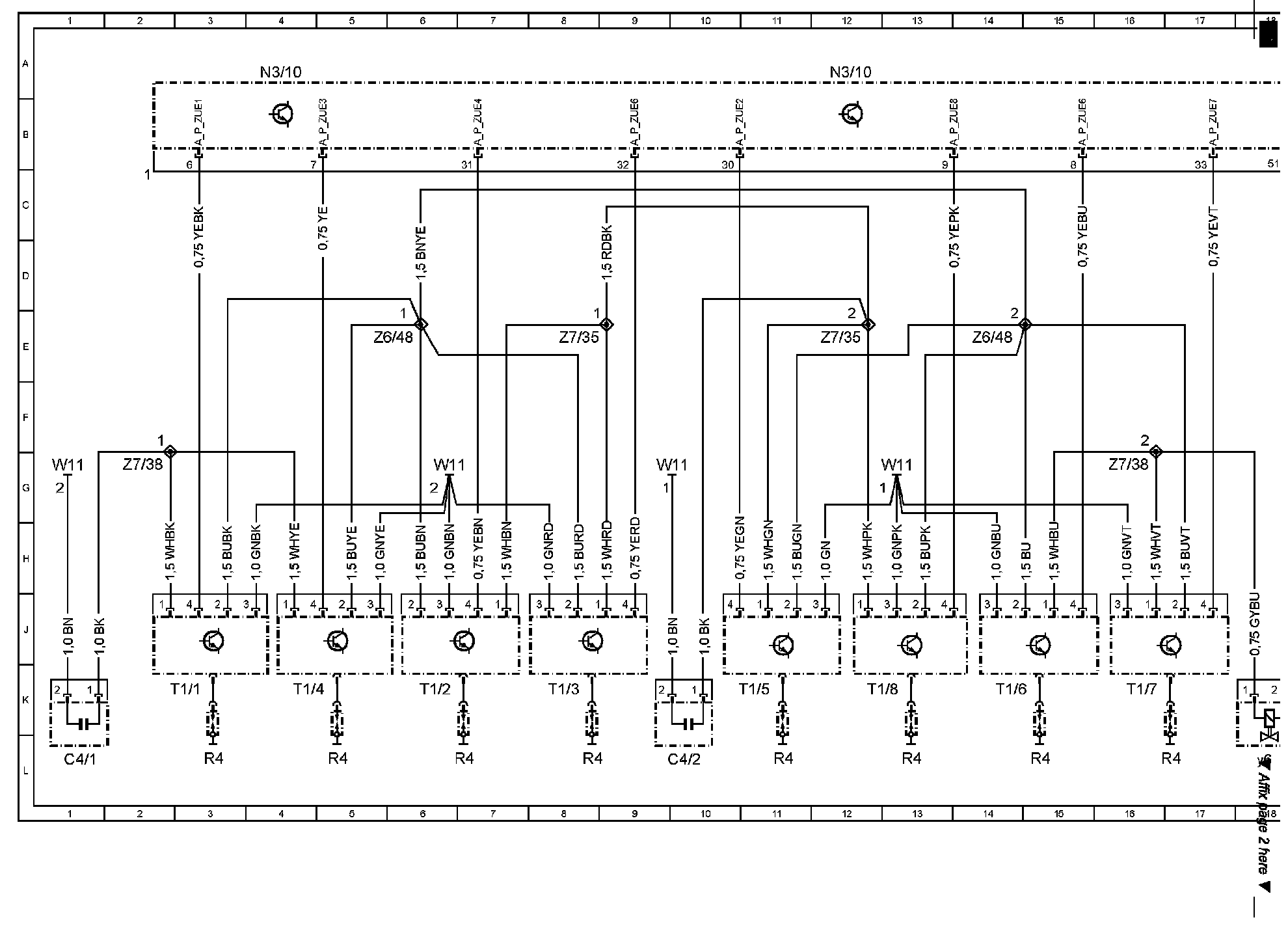

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

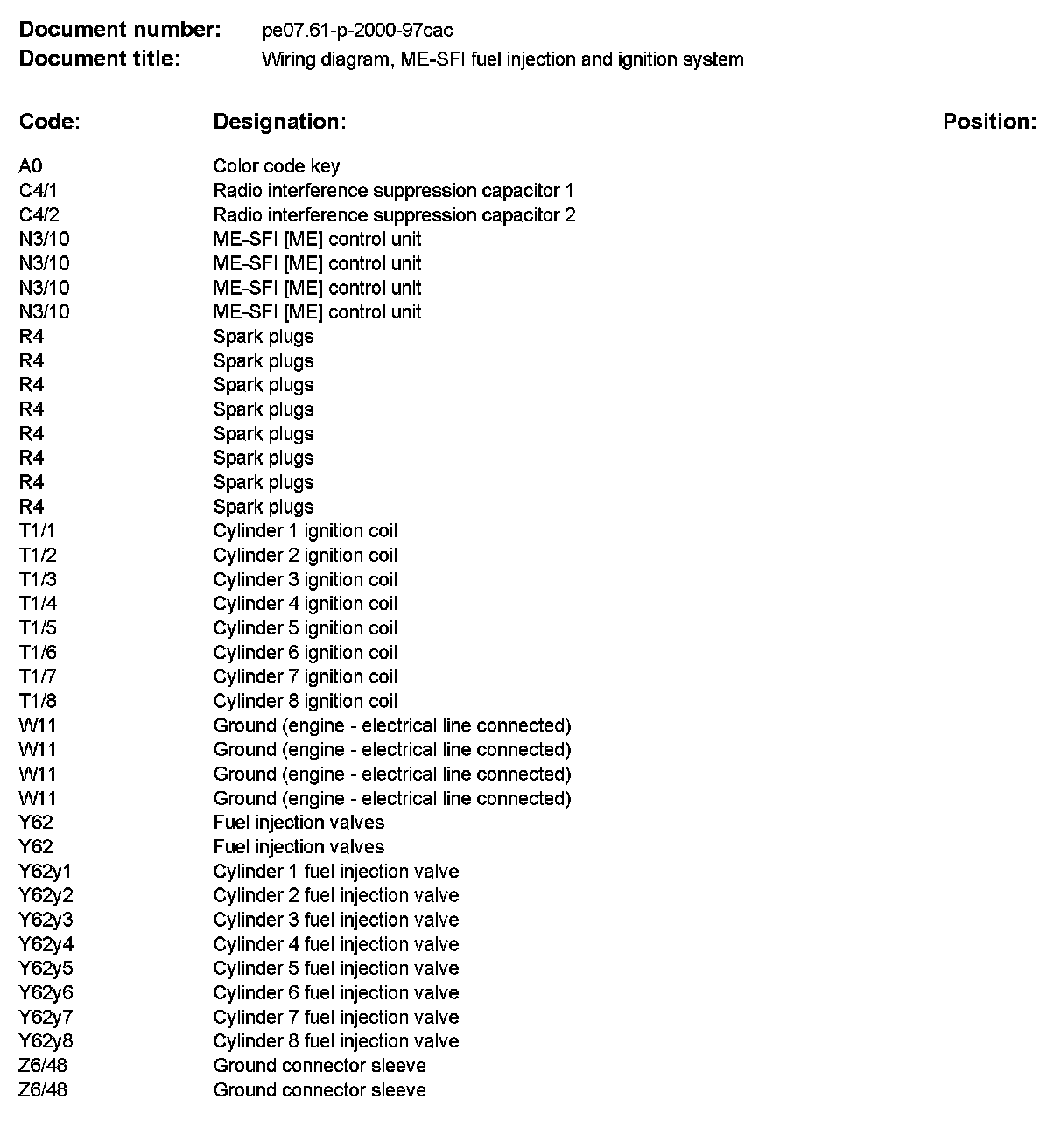

Component Description/Coordinates, A0 To Z6/48:

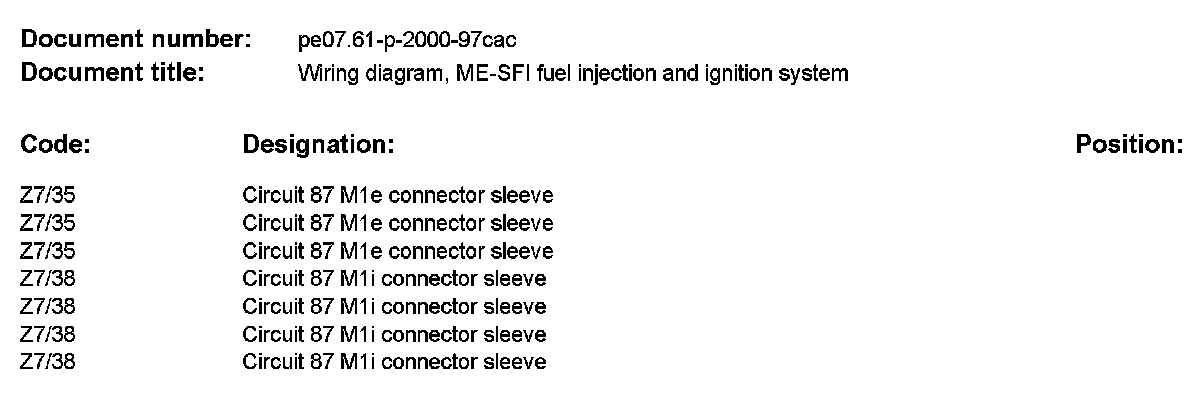

Component Description/Coordinates, Z7/35 To Z7/38:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
