GF82.70-P-5201TX Telephone/Portable CTEL/STH Radio Remote Control Antenna Splitter Component Description

GF82.70-P-5201TX Telephone/Portable CTEL/STH Radio Remote Control Antenna Splitter Component Description
- with CODE (228) Stationary heater
- except CODE (498) Japan version
- except CODE (494a) USA version

Component Identification:

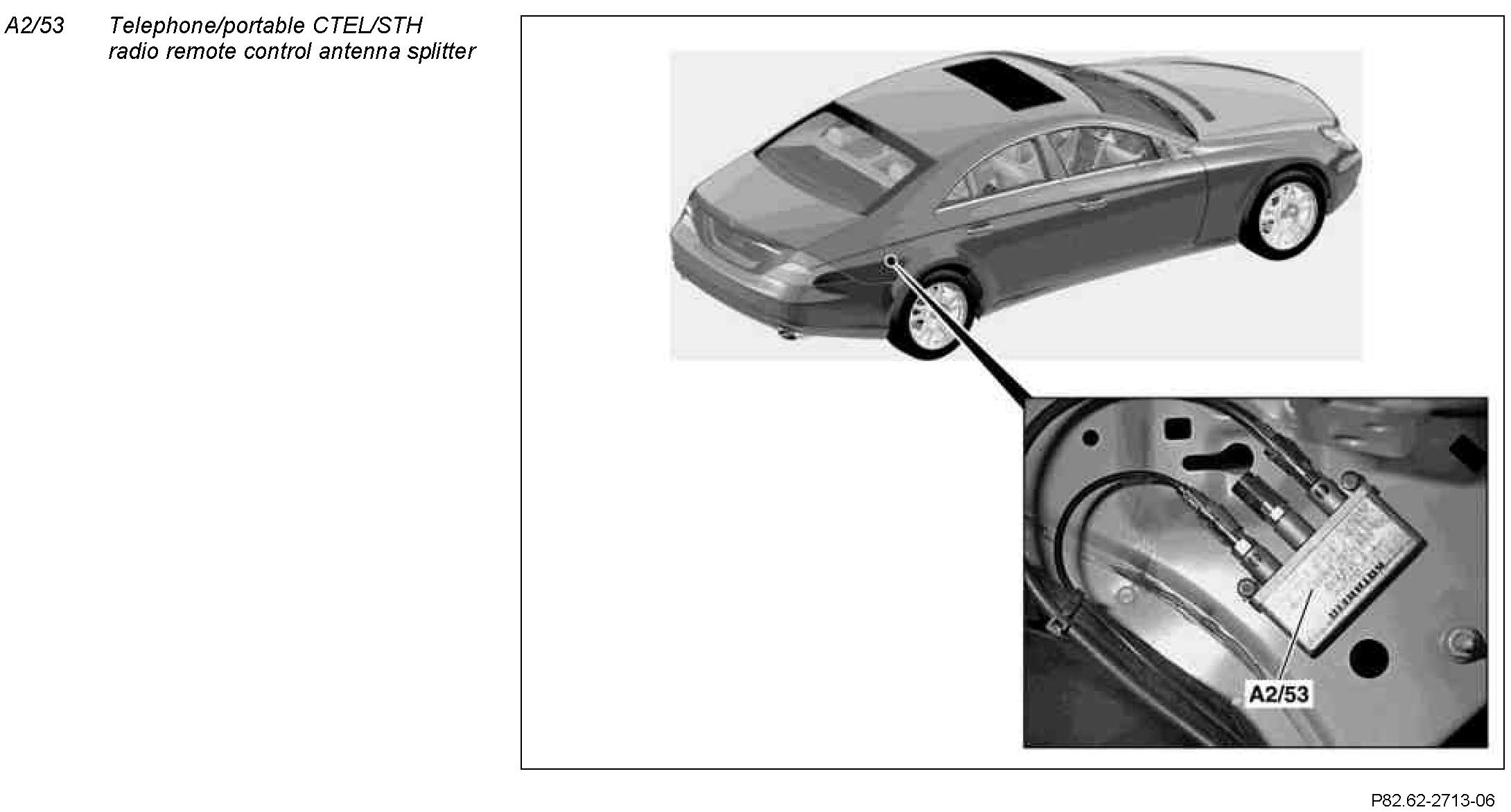

Location of telephone/portable CTEL/STH radio remote control antenna splitter
The telephone/portable CTEL/STH radio remote control antenna splitter (A2/53) is installed at the right rear in the luggage compartment.

Task/function of telephone/portable CTEL/STH radio remote control antenna splitter
The task of the telephone/portable CTEL/STH radio remote control antenna splitter (A2/53) is to forward the signals received by the telephone antenna (A2/49a1) and those of the STH radio remote control transmitter (A8/3) to the STH radio remote control receiver (A6/1) or the E-net compensator (A28/3).
