PE82.60-P-2302XA Digital Audio Broadcasting System Control Unit (DAB)

Digital Audio Broadcasting System Control Unit (DAB) PE82.60-P-2302XA
- as of 1.6.08
- with CODE (537) Digital radio
- Valid for United Kingdom,
- Control unit N87/3

- as of 1.6.09
- with CODE (537) Digital radio
- except CODE (498) Japan version
- except CODE (494) USA version
- Control unit N87/3

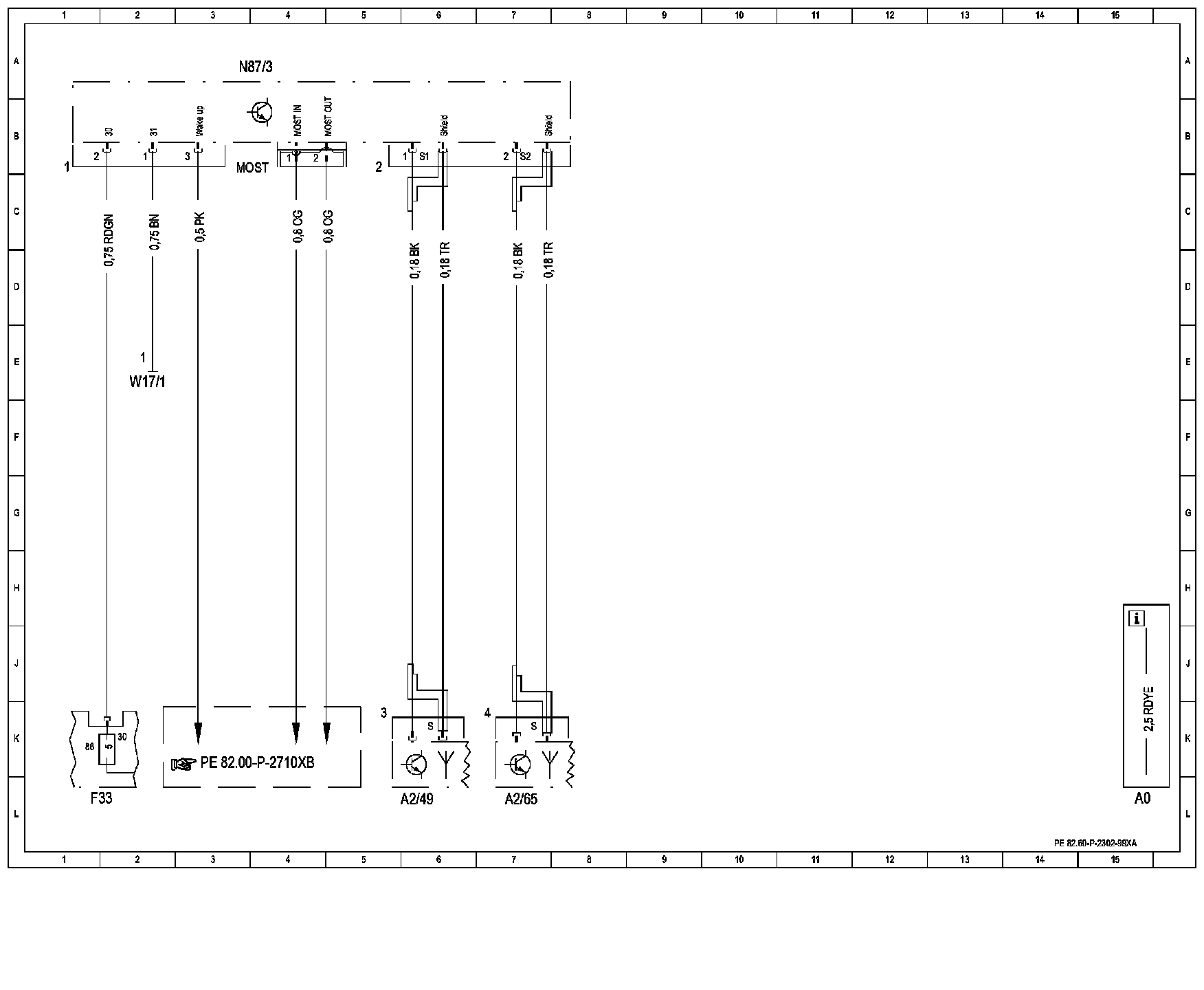

Wiring Diagram:

Component Description/Coordinates, A0 To W17/1:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
