GF68.49-P-2105TX Inside Rearview Mirror Component Description

GF68.49-P-2105TX Inside Rearview Mirror Component Description

Component Identification:

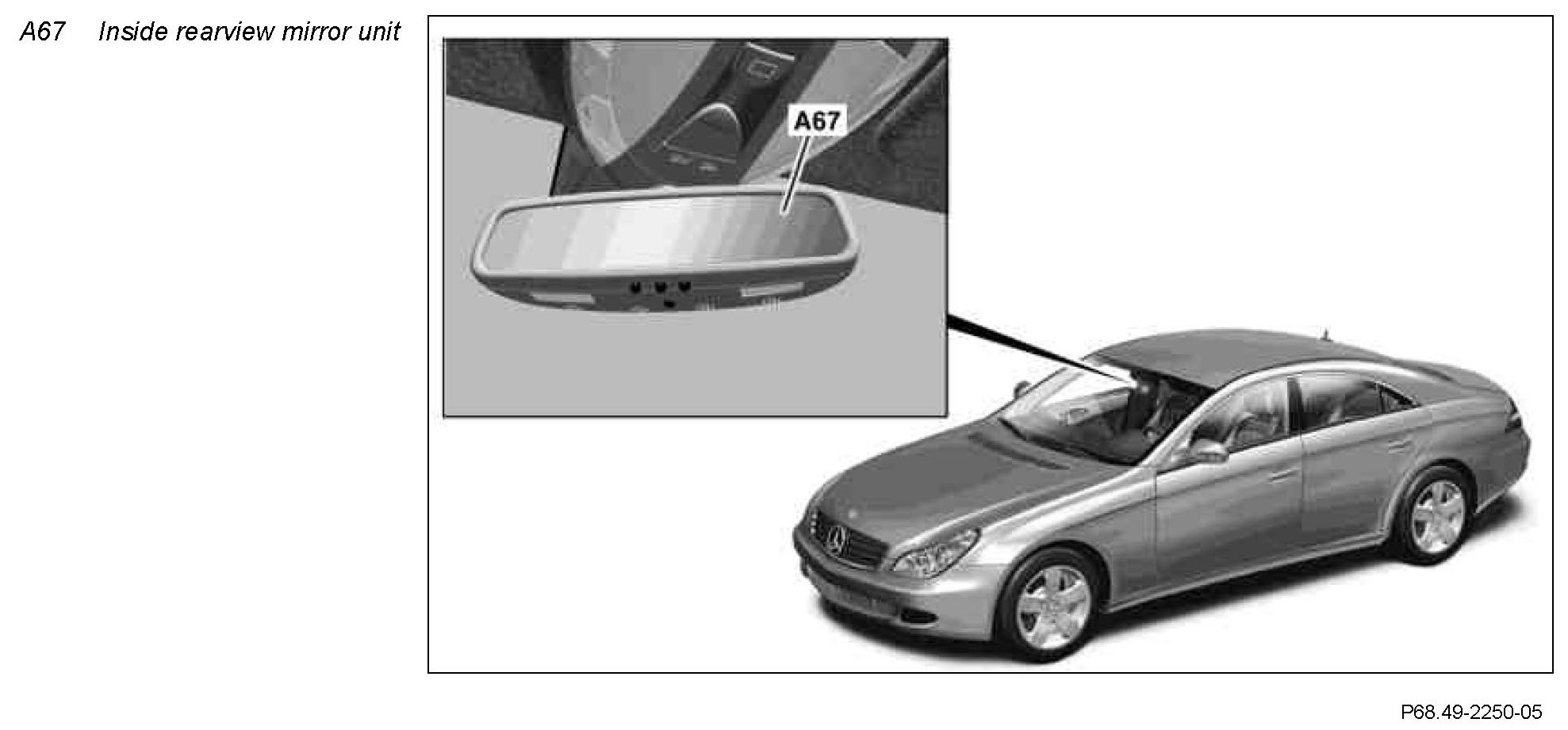

Location
The inside rearview mirror is located in the front of the overhead control panel control unit (N70) on the front dome, centered.







Design

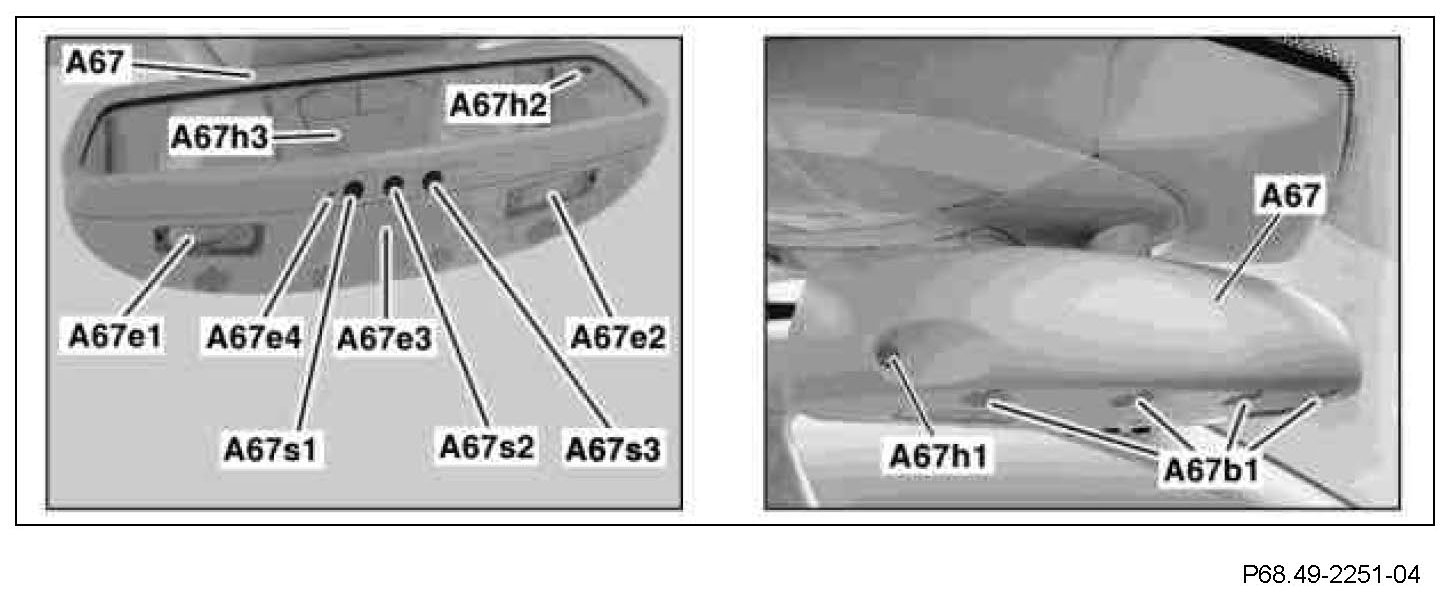

The inside rearview mirror (A67)includes the following components:
^ Left reading lamp (A67e1)
^ Right reading lamp (A67e2)
^ Ambient lamp (A67e3)
^ Automatic dimming interior rearview mirror sensor, forward (A67h1)
^ Automatic dimming interior rearview mirror sensor, back (A67h2)
^ Automatic dimming mirror (A67h3)

Additionally on
Code (386) Preinstallation for portable CTEL, UPCI system or
Code (388) Portable CTEL, UPCI system or
Code (498) Japan version or
Code (525) MB Audio 50 APS radio or
Code (526) COMAND (without navigation) or
Code (527) COMAND APS (with navigation):
^ Hands-free system microphone group (A67b1)

Additionally on
Code (231) Garage door opener or
Code (232) Garage door opener with frequency of 284-390 MHz:
^ Garage door opener indicator lamp (A67e4)
^ Button 1 garage door opener (A67s1)
^ Button 2 garage door opener (A67s2)
^ Button 3 garage door opener (A67s3)
^ In the inside rearview mirror unit integrated garage door opener transmitter unit (A67n2)
