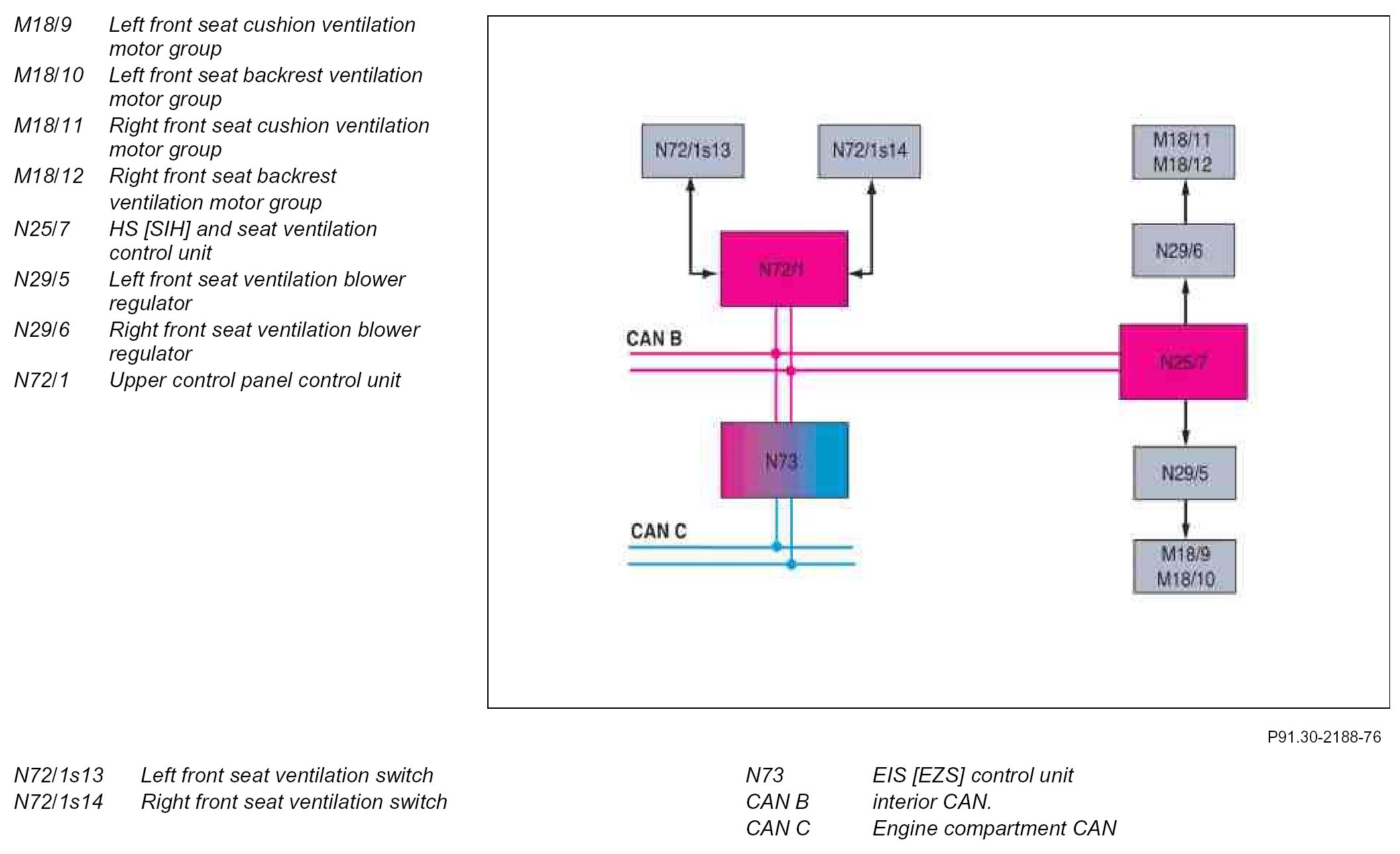

GF91.30-P-0002-01TX Electric Seat Ventilation, Networking of Components
GF91.30-P-0002-01TX Electric Seat Ventilation, Networking of Components
GF91.30-P-0002-01TX Electric Seat Ventilation, Networking Of Components
- with CODE (401) Front luxury seats, including seat heating and seat ventilation
Component Identification:
