Splash Guard: Service and Repair
AR61.20-P-1105TX Remove And Install Bottom Engine Compartment Paneling

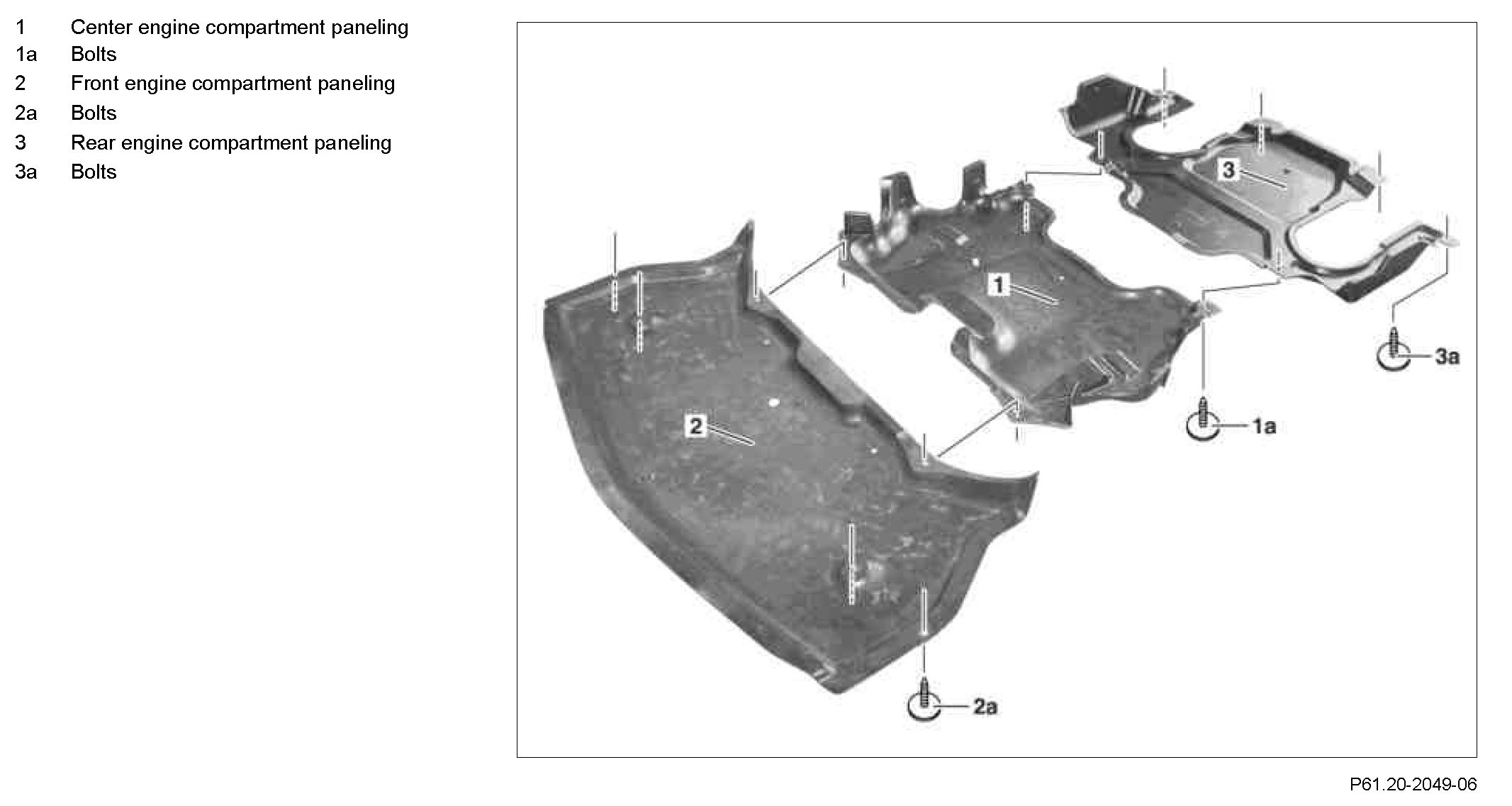

Component Identification:

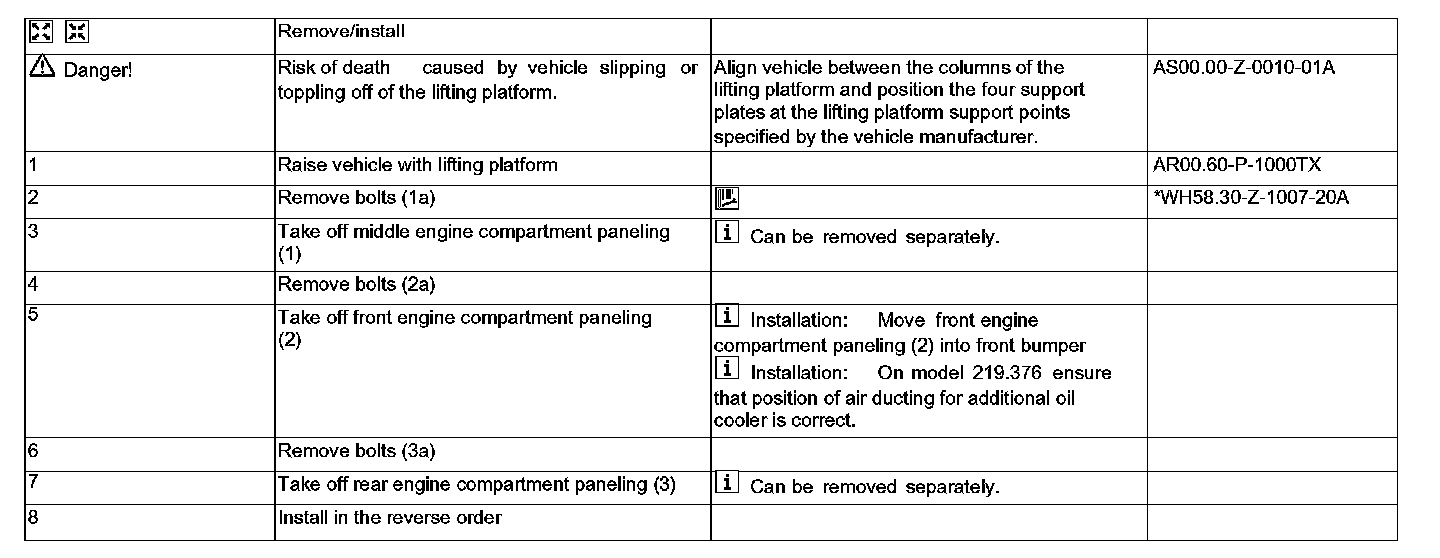

Steps 1 - 8:

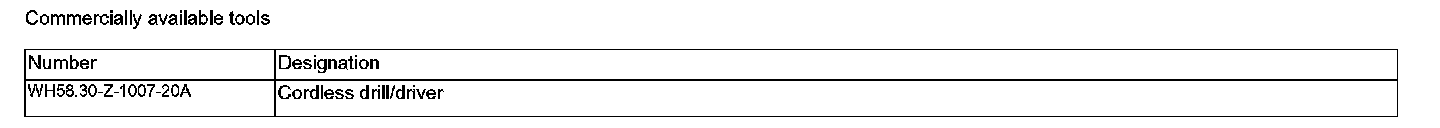

Commercially Available Tools:
