GF83.70-P-4204TX STH Radio Remote Control Transmitter, Component Description

GF83.70-P-4204TX STH Radio Remote Control Transmitter, Component Description
- with CODE (228) Stationary heater

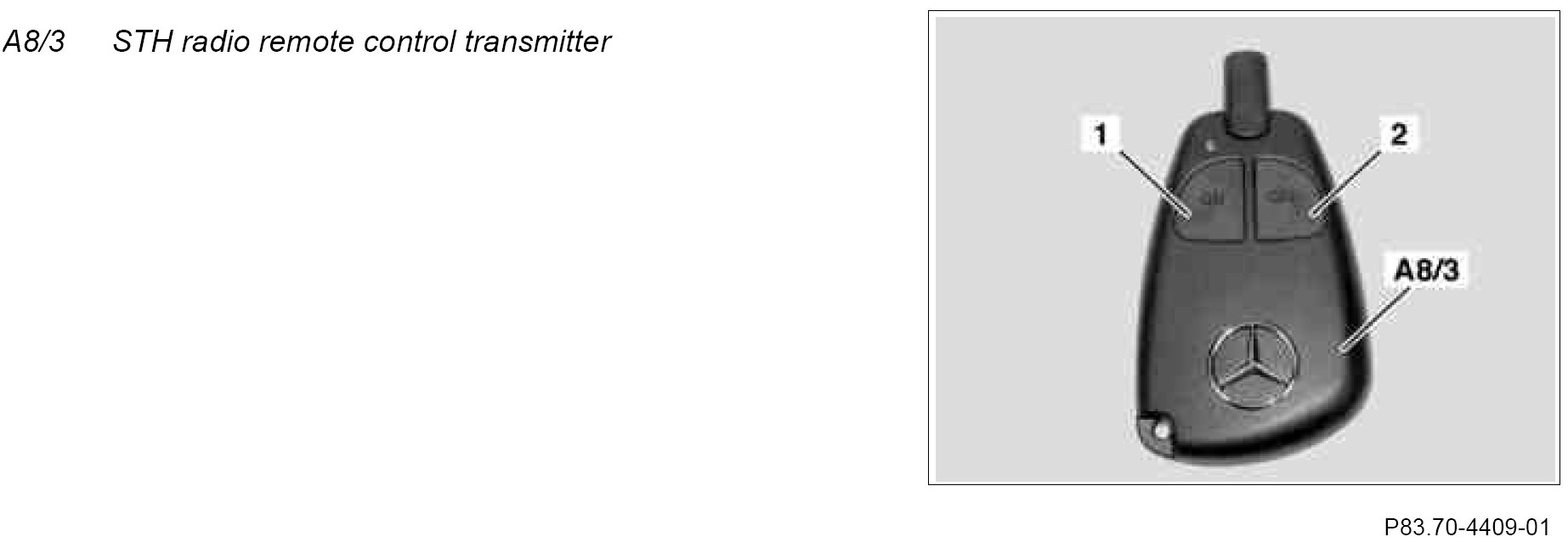

Component Identification:

Task
The STH radio remote control transmitter allows stationary heater (STH) heating or ventilation mode to be switched on and off by pressing the buttons (1, 2).
The transmitter has a range of approximately 300 m (depending on the environment).

Function display
^ If the radio connection is OK, the LED illuminates with a steady light for 2 seconds after the transmission time (green when activating, red when complete).
^ If the radio connection is not OK, the LED flashes for 2 seconds (green when activating, red when complete).
^ If the STH remote control transmitter battery is low, the LED illuminates in yellow for 2 seconds before feedback is received.
^ If the battery is empty, no connection is established and the LED flashes in yellow for 5 seconds.
