AR83.70-P-5302TX Remove/Install Heater Unit

AR83.70-P-5302TX Remove/Install Heater Unit
- with CODE (228) Stationary heater

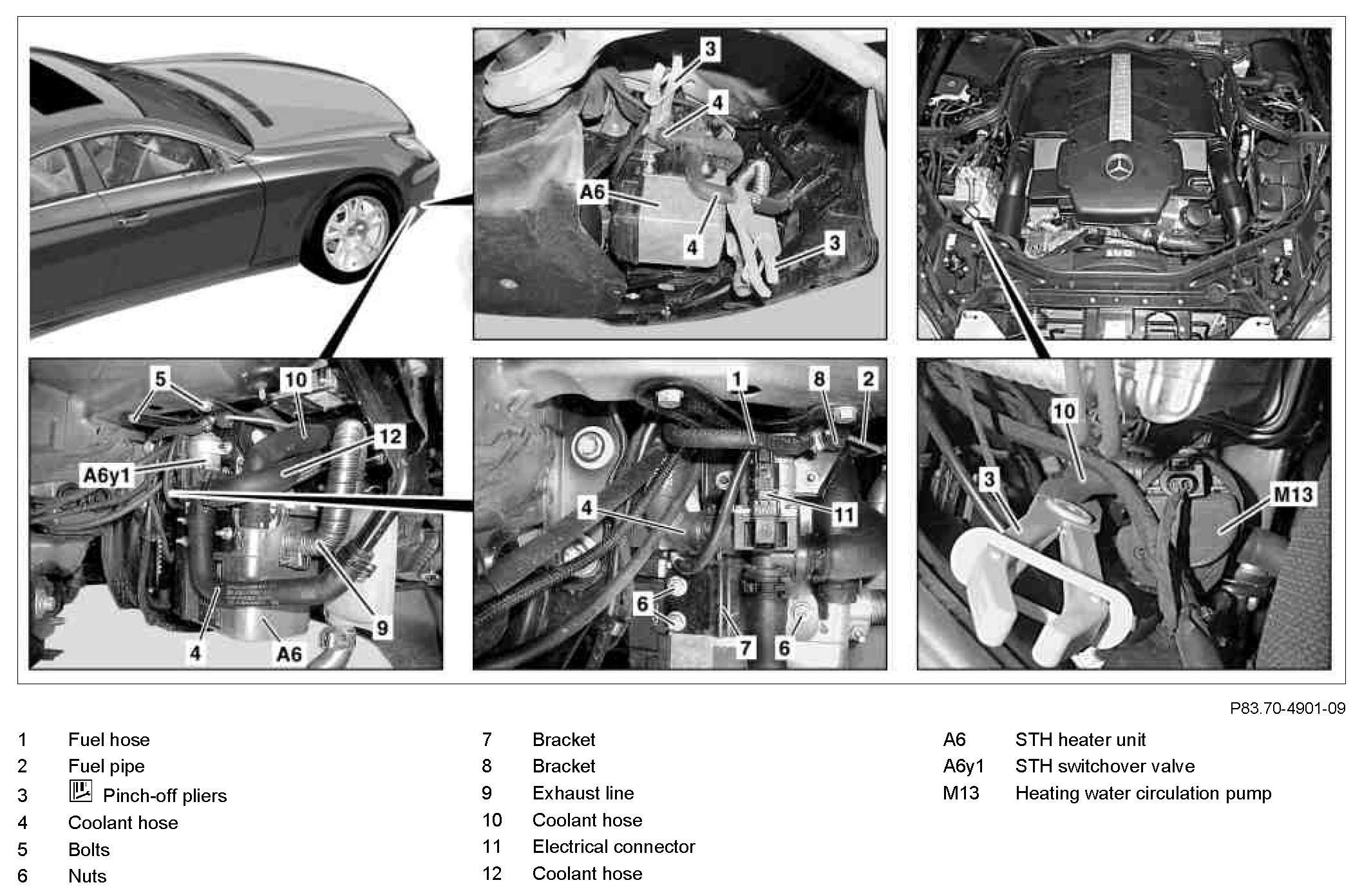

Component Identification:

Component Identification:

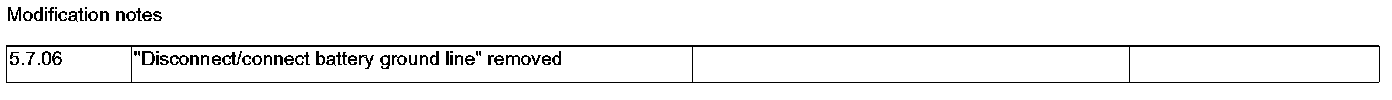

Modification Notes:

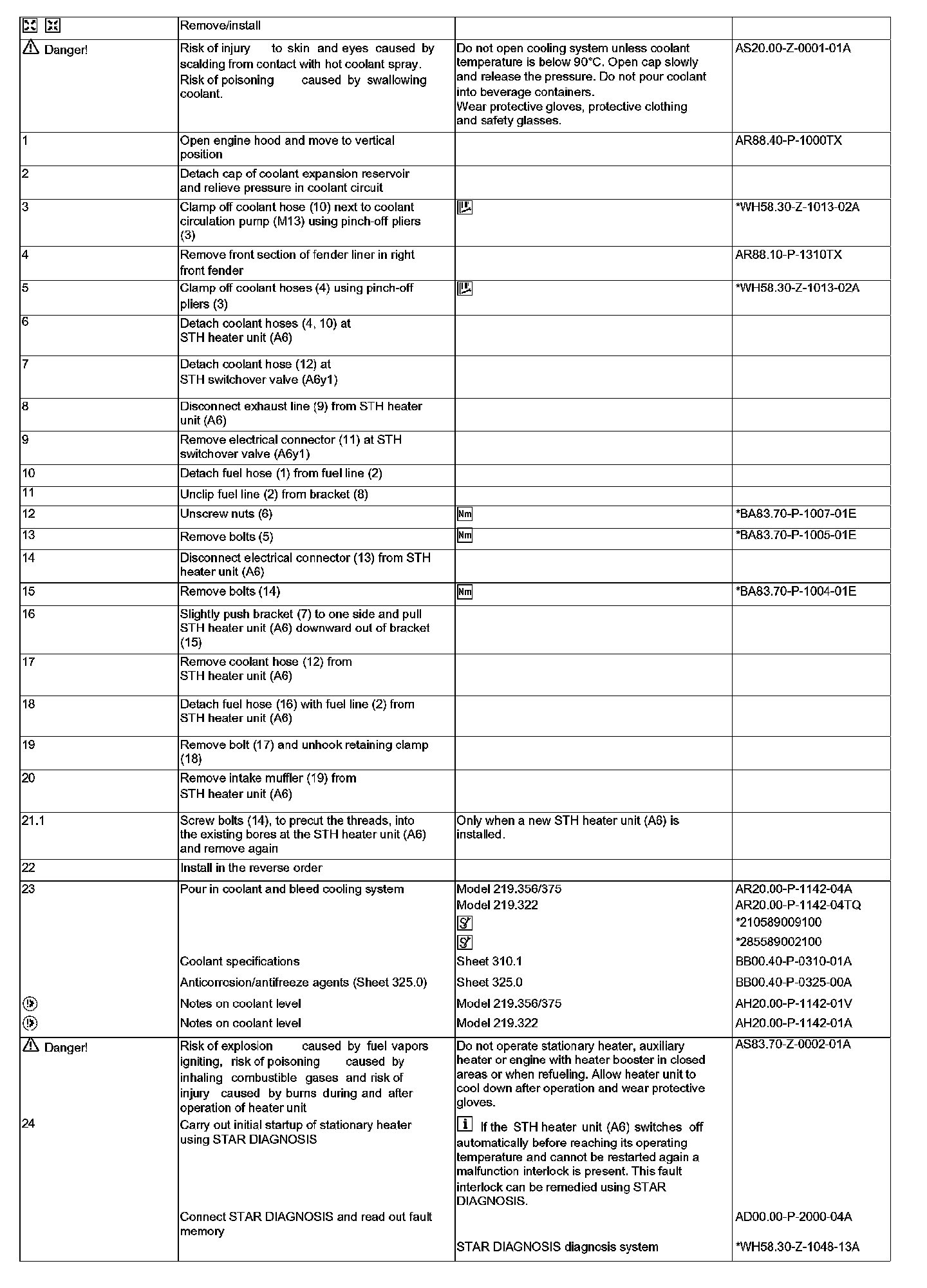

Steps 1 - 24:

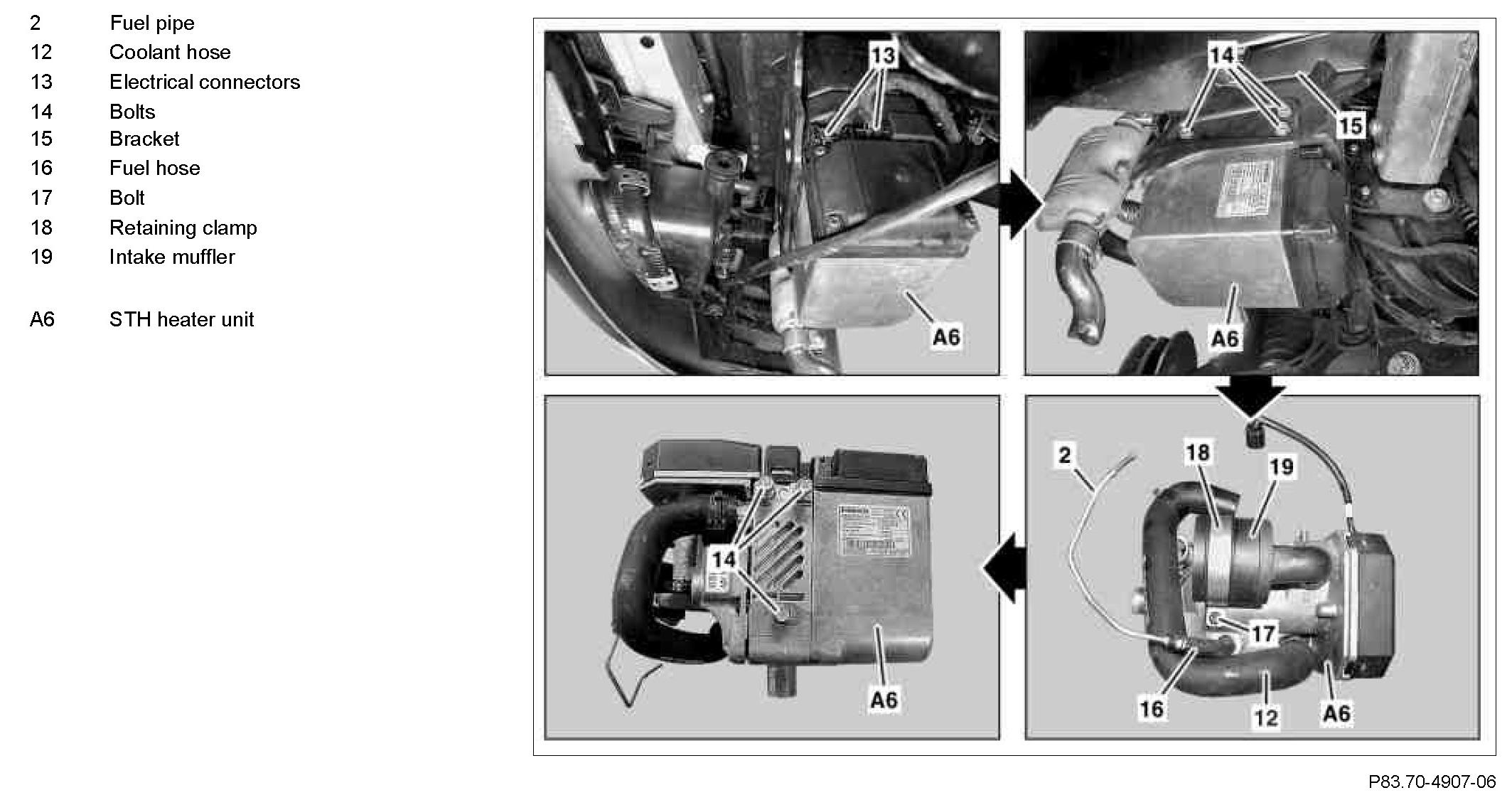

Heater Unit Of Stationary Heater:

Special Tools:

Commercially Available Tools:
