Cabin Temperature Sensor / Switch: Service and Repair
AR83.30-P-8091TX Removing And Installing Interior Temperature Sensor

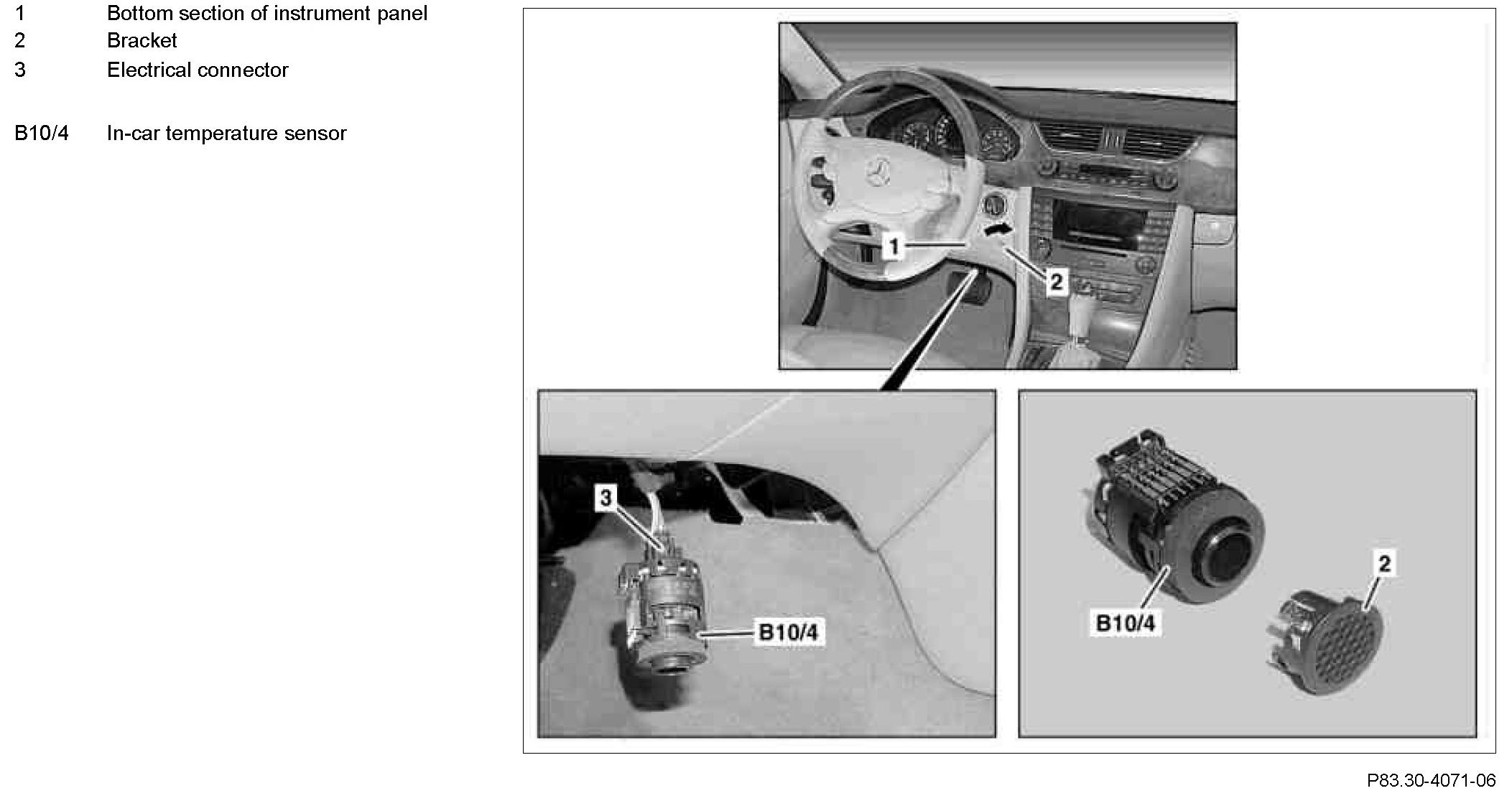

Component Identification:

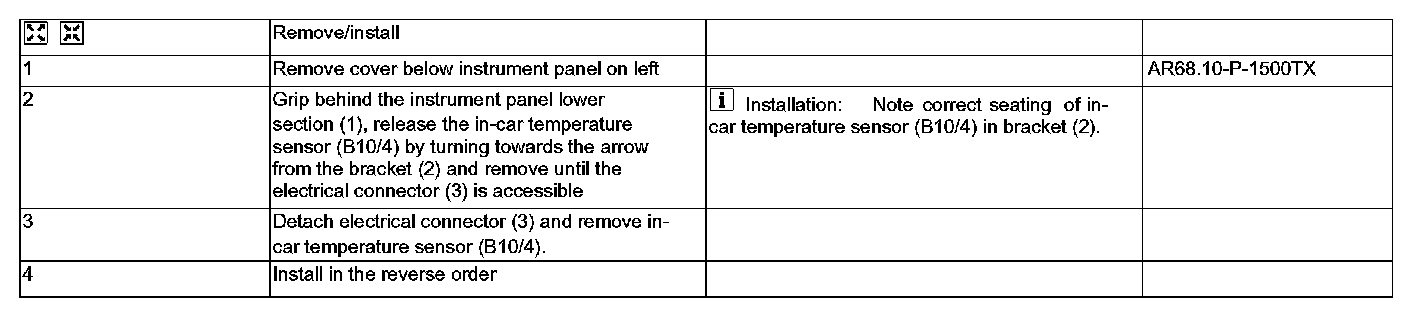

Steps 1 - 4:
