Expansion Valve: Service and Repair



AR83.30-P-5520TX Remove And Install Expansion Valve

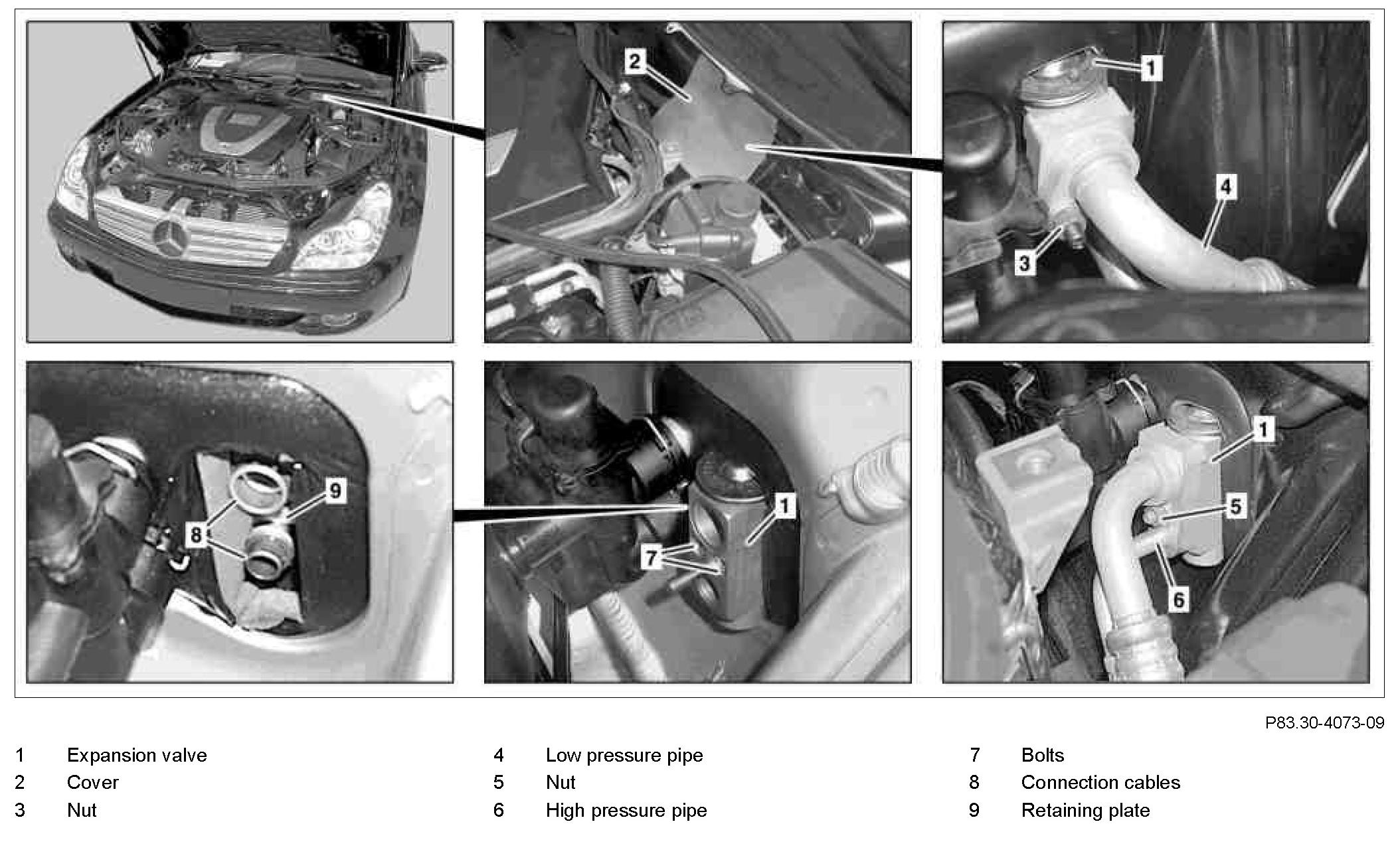

Component Identification:

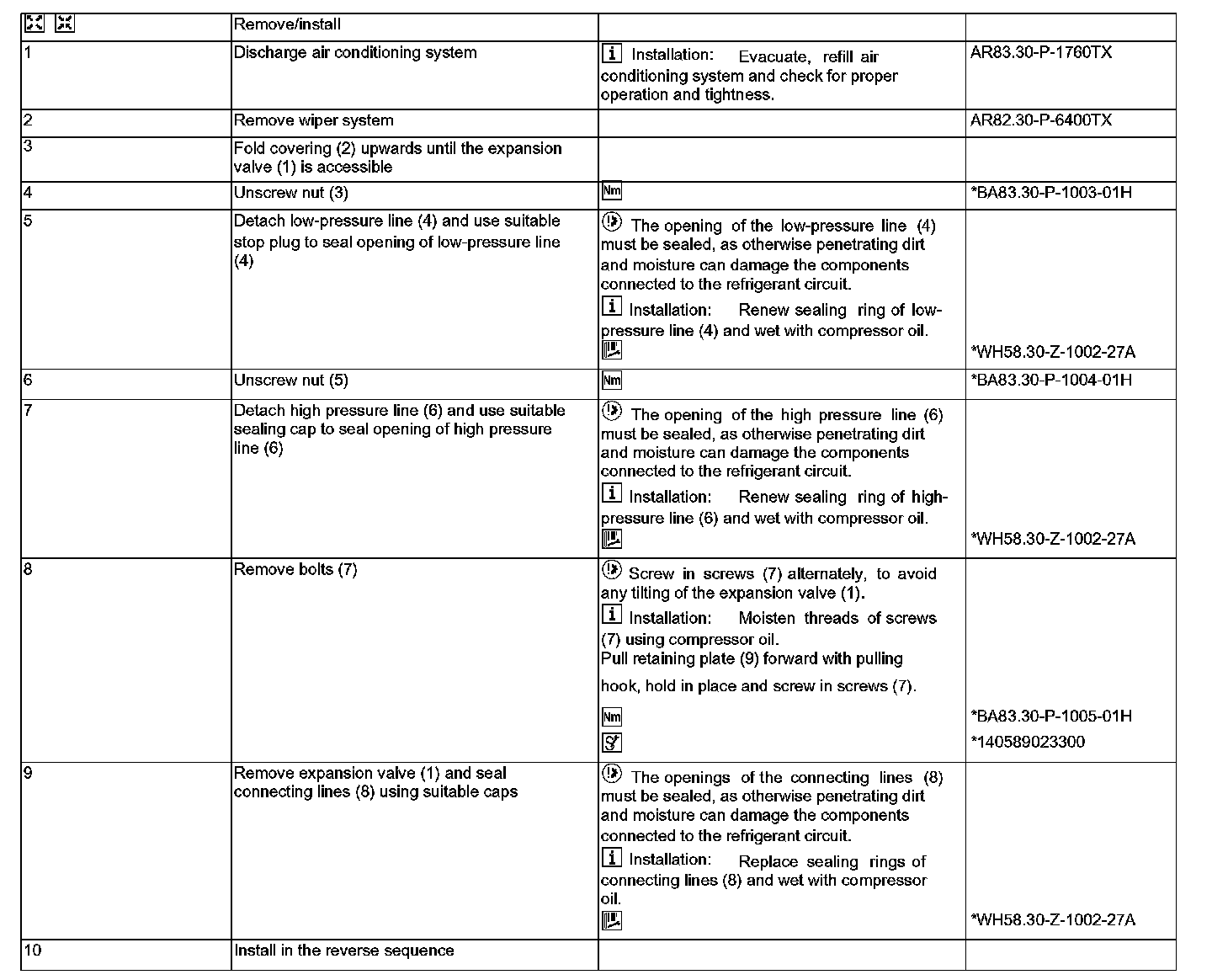

Steps 1 - 10:

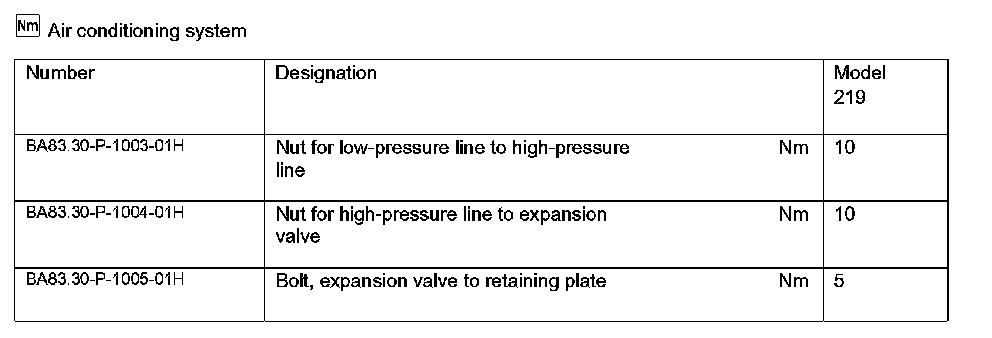

Air Conditioning System:

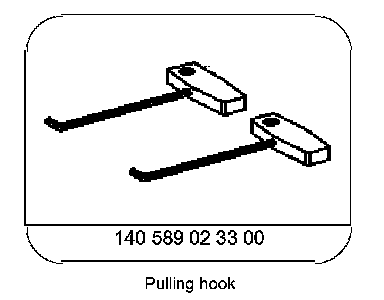

Special Tools:




Commercially Available Tools:
