AR68.10-P-1180TX Remove/Install Trim Strip on Instrument Panel
AR68.10-P-1180TX Remove/Install Trim Strip on Instrument Panel
AR68.10-P-1180TX Remove/Install Trim Strip On Instrument Panel

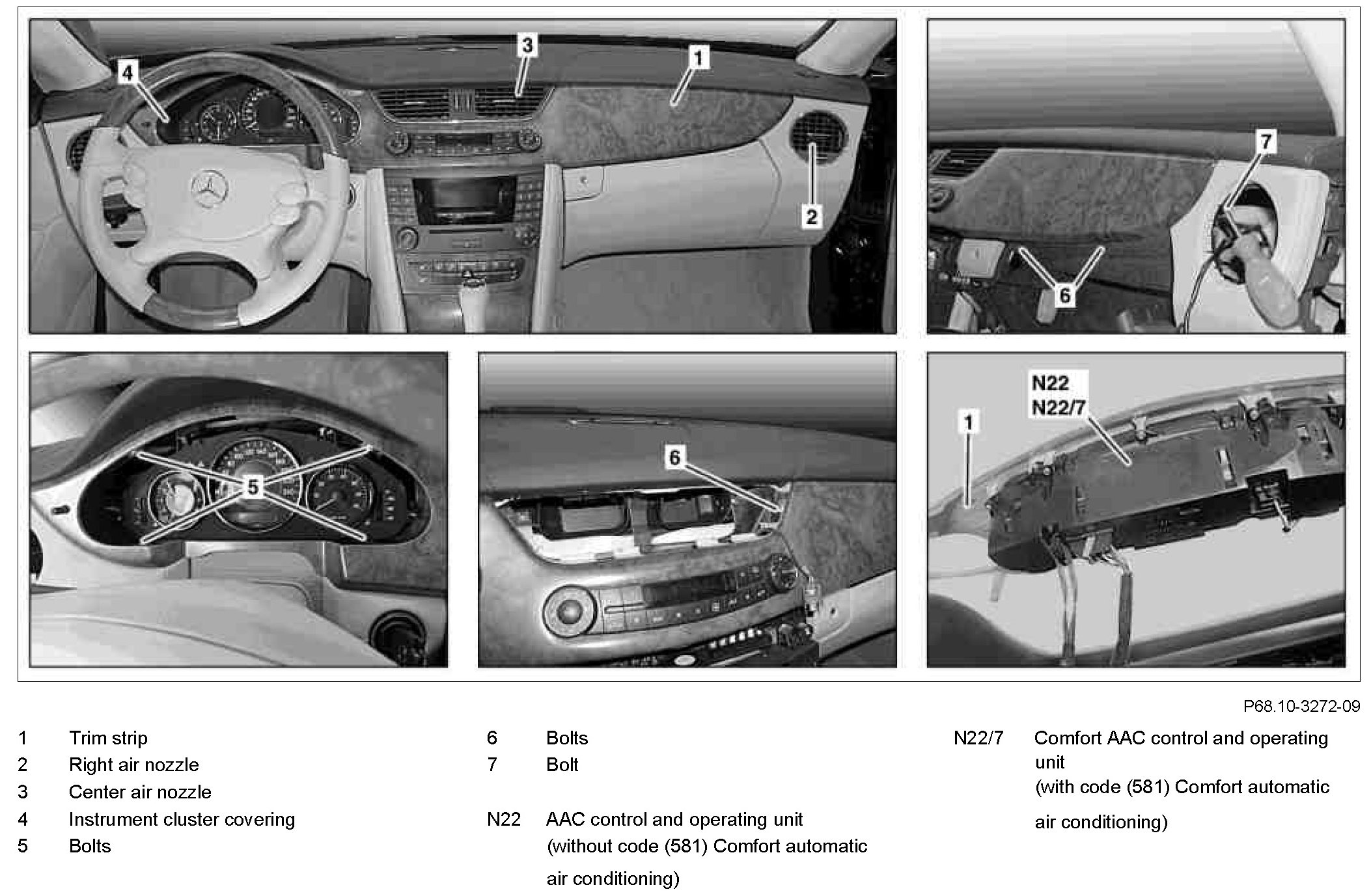

Component Identification:

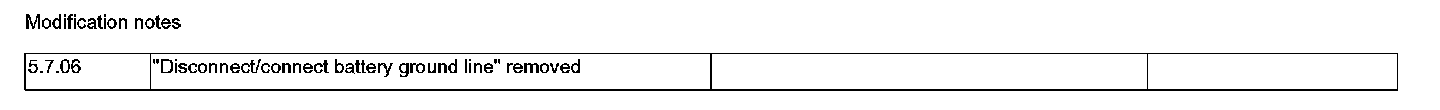

Modification Notes:

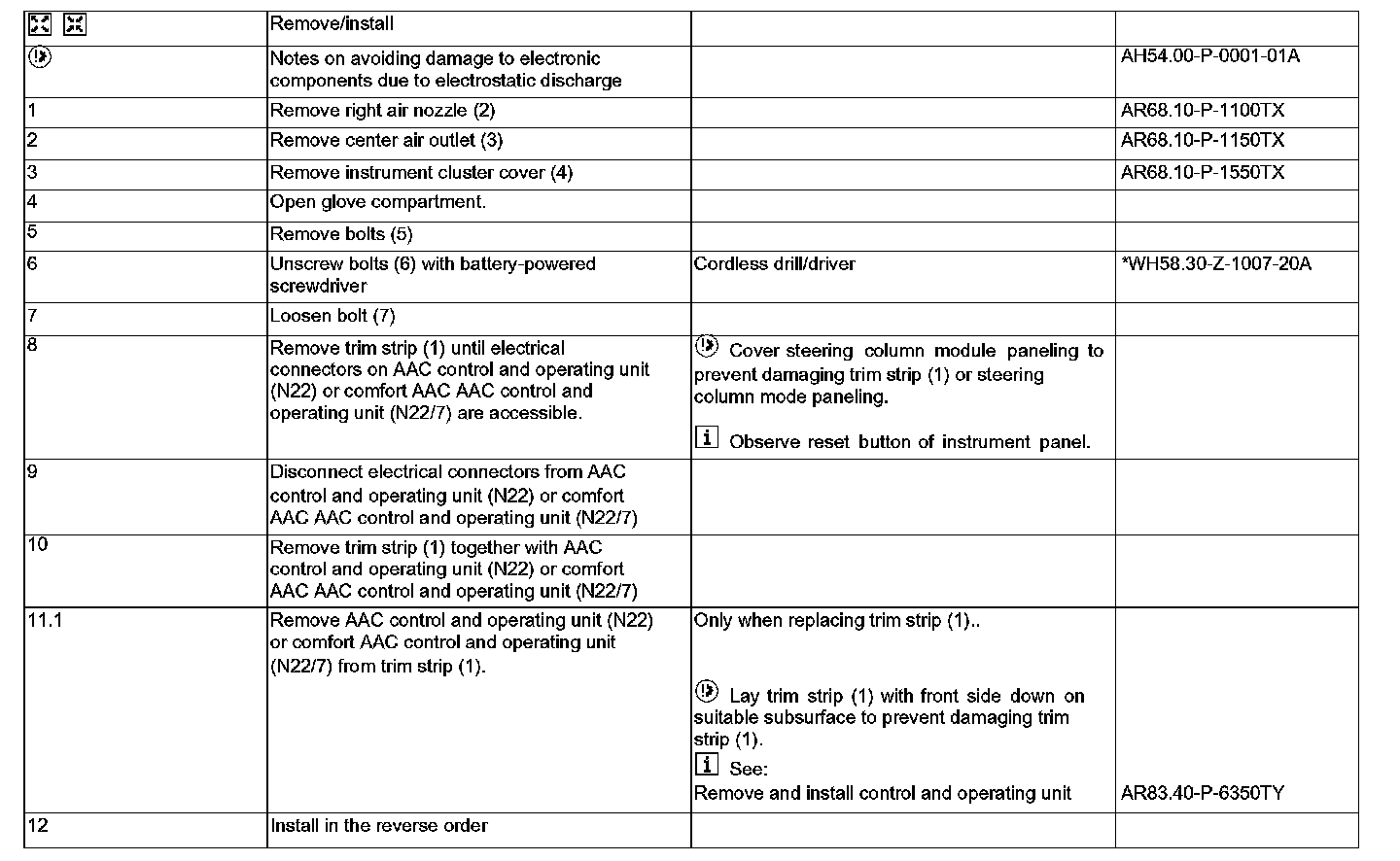

Steps 1 - 12:

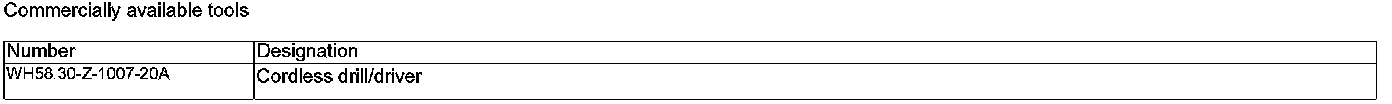

Commercially Available Tools:
