AR68.10-P-1520TX Remove/Install Cover Below Instrument Panel (Right)
AR68.10-P-1520TX Remove/Install Cover Below Instrument Panel (Right)
AR68.10-P-1520TX Remove/Install Cover Below Instrument Panel (right)

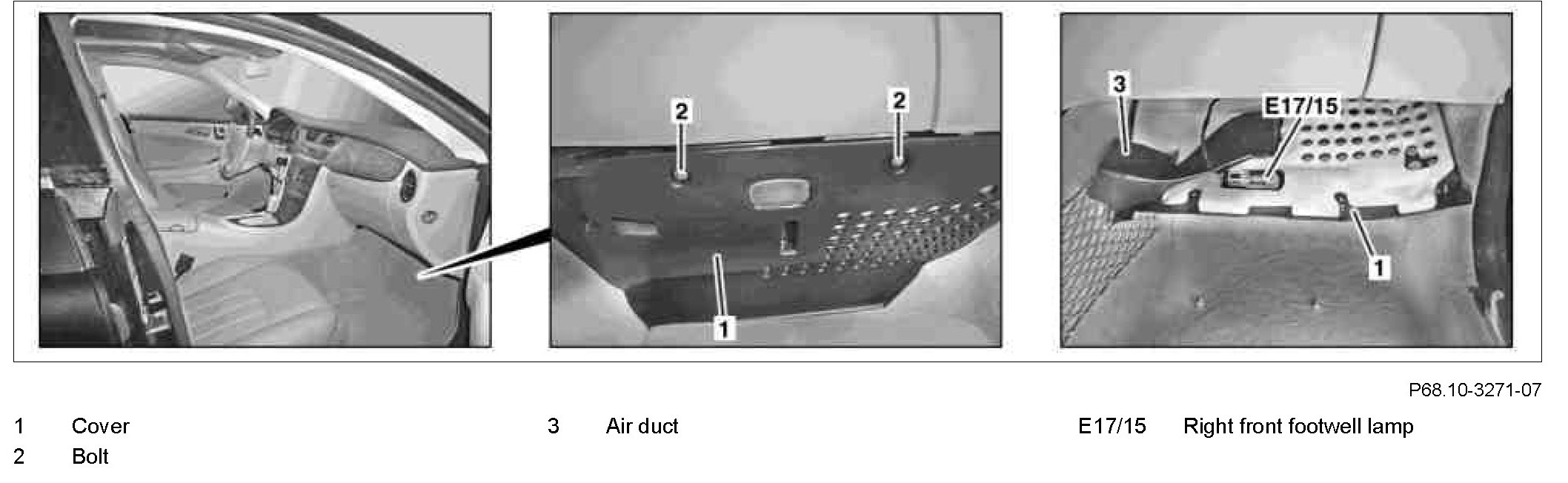

Component Identification:

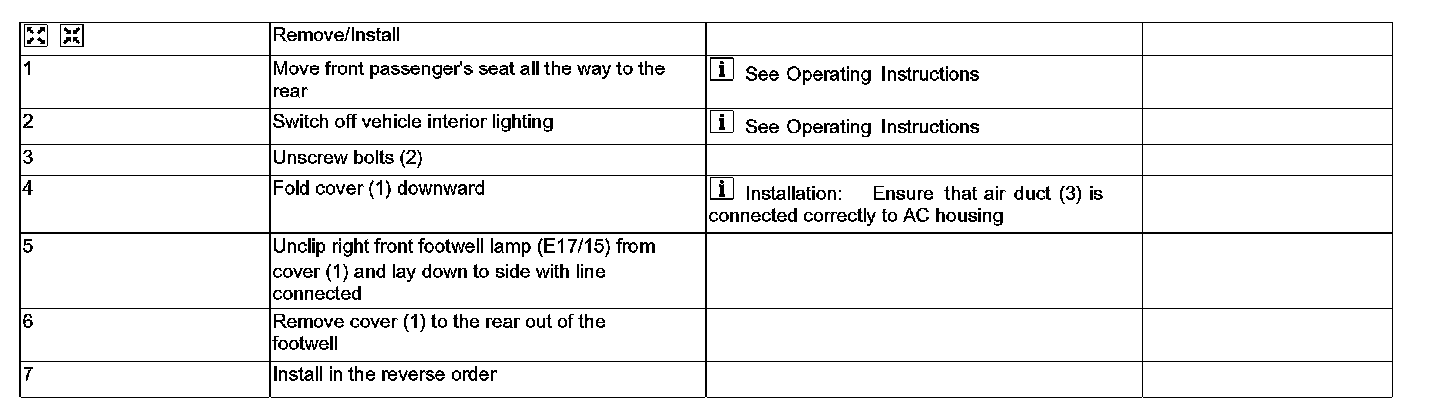

Steps 1 - 7:
