GF40.15-P-0002-03TX Tire Pressure Loss Warning (RDW) Mercedes-Benz Driver Information Service

GF40.15-P-0002-03TX Tire pressure loss warning (RDW) Mercedes-Benz Driver Information Service
- with CODE (477) Tire pressure loss warning

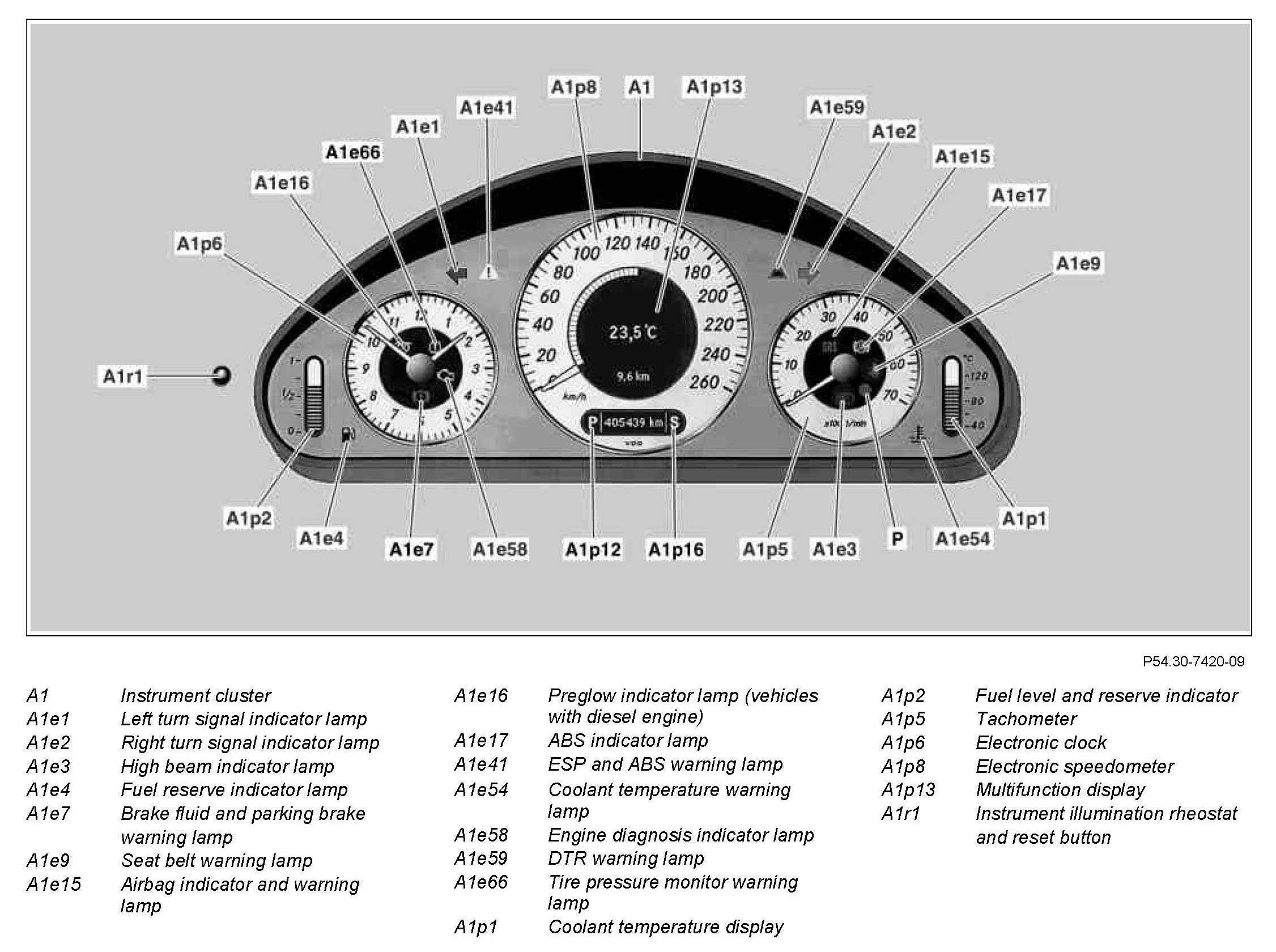

Component Identification:

The tire pressure loss warning (tire pressure loss warning) can be displayed in the multifunction display in the instrument cluster. These can be shown as follows:
^ Warning messages
^ Information displays

The messages in the multifunction display can be:
^ shown against a colored background
^ acknowledgeable
^ not acknowledgeable





System information

The tire pressure loss warning is available only when Terminal 15 is on.

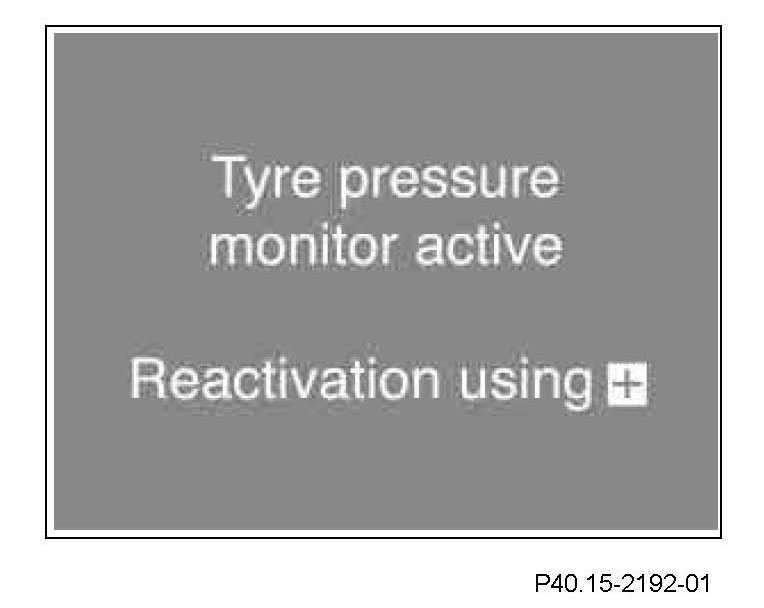

Selection display

This display appears when a reactivation is performed





Selection display

Following tire inspection the confirmation for the tire pressure loss warning is executed with this display.

If the confirmation does not occur, the tire pressure loss warning is not active.





Confirmation display

This display appears to confirm that tire pressure loss warning is active.

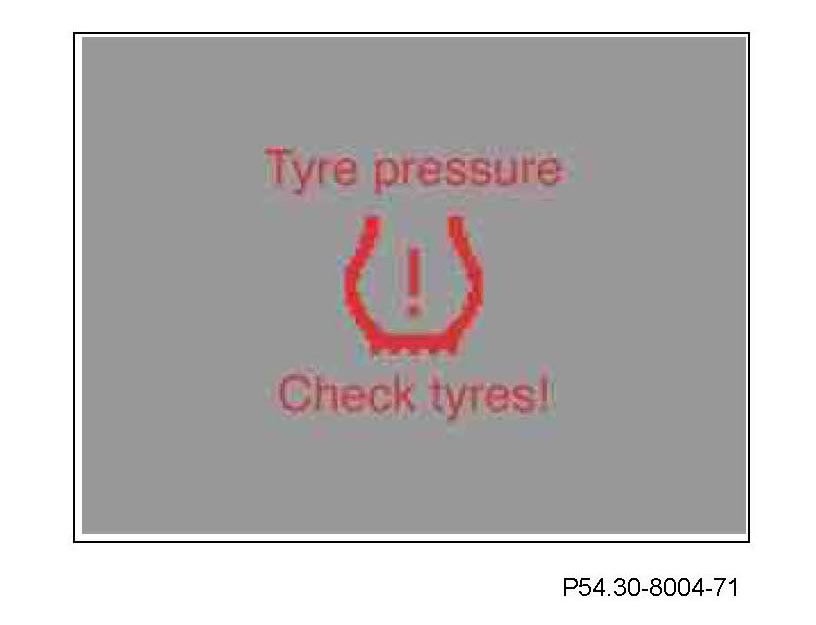

Warning messages

Warning message while driving.

The tire pressure loss warning has established that the rolling circumferences of the wheels have changed relative to each other. Checking the wheels is necessary.

The message can be acknowledged.

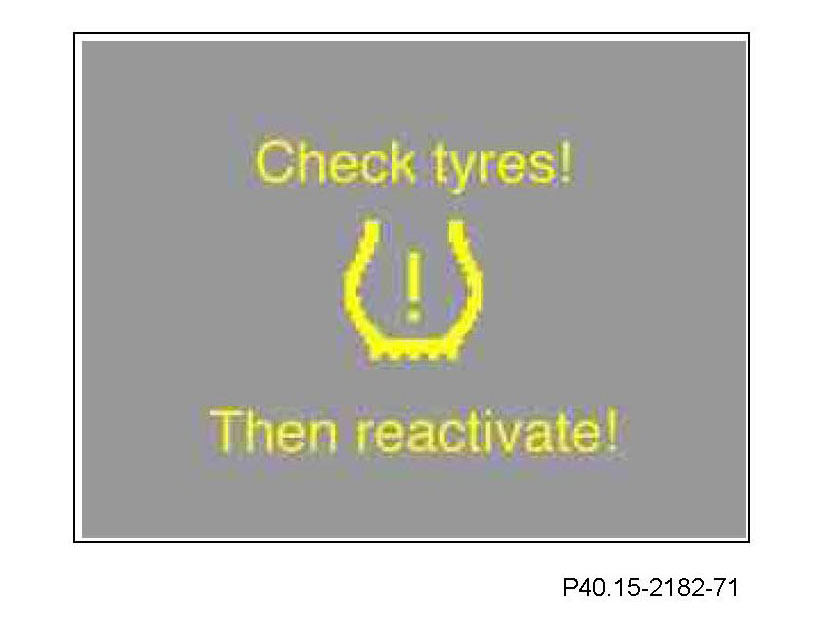

System reminder

The tire pressure loss warning has not been restarted since the last red warning message.

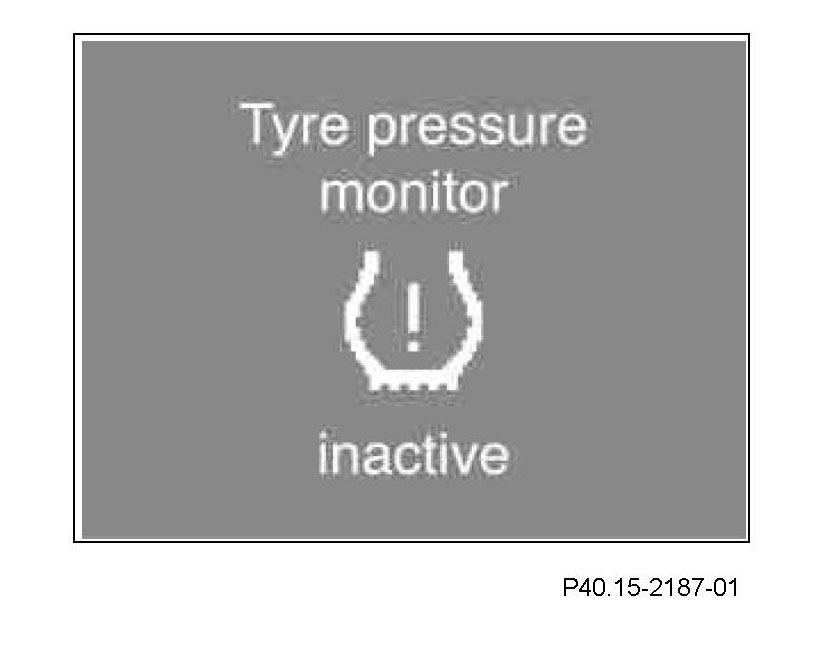

System messages

With this display the driver's acknowledgment is no longer possible.

Activation is only possible in the workshop using STAR DIAGNOSIS.
