GF82.10-P-2017TX Lamp Unit, Component Description

GF82.10-P-2017TX Lamp Unit, Component Description

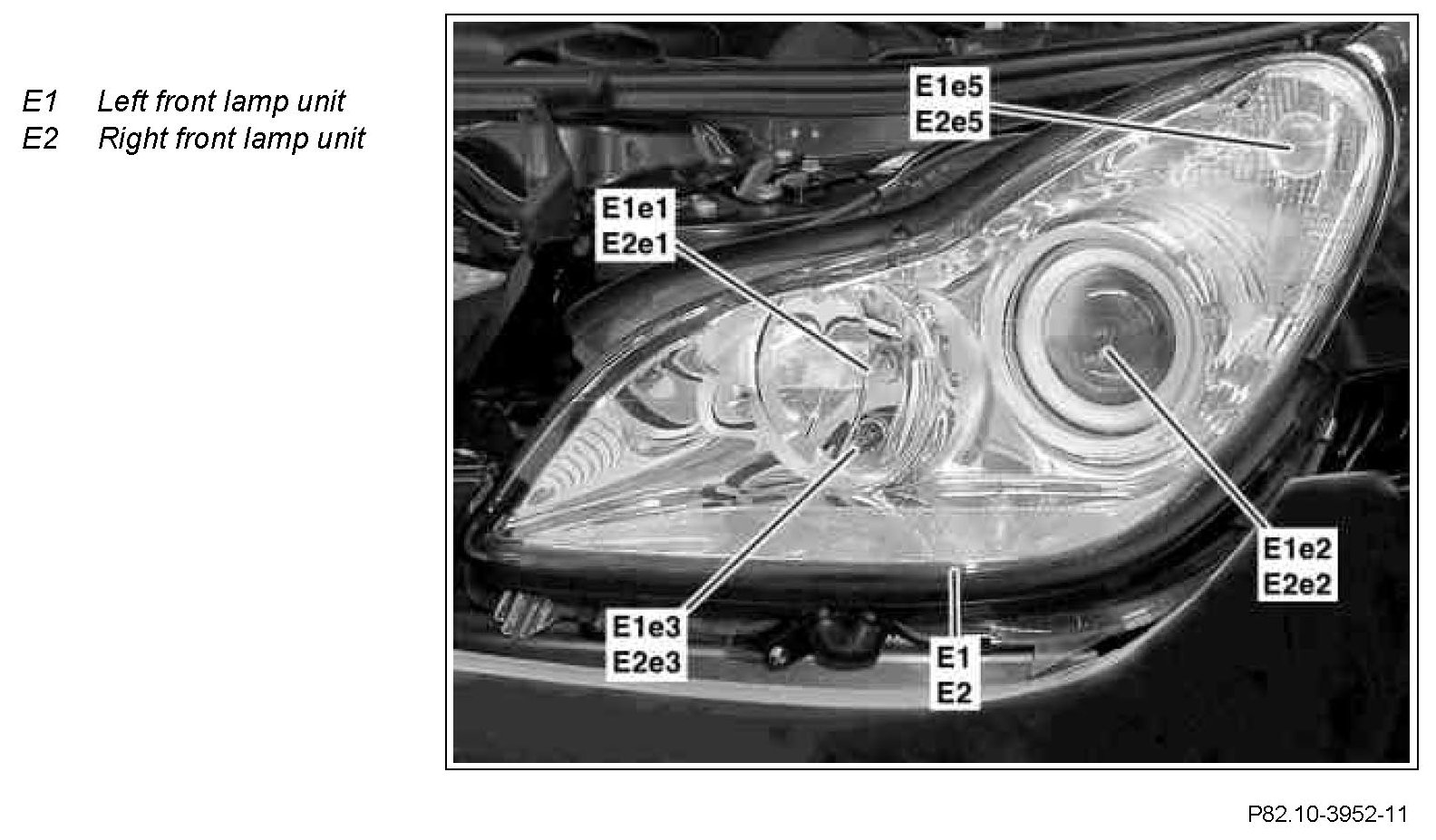

Component Identification:

Location
The left front lamp unit and the right front lamp unit are located in the front of the vehicle.

Task
^ Illumination of the road in various visibility conditions
^ Indicating the direction of travel and hazard warning flashing
^ Indicating the position of the vehicle when it is stationary

Design
The following lamps are integrated in the left front lamp unit:
^ Left high beam (E1e1)
^ Left low beam (E1e2)
^ Left standing and parking lamp (E1e3)
^ Left turn signal lamp (E1e5)

The following lamps are integrated in the right front lamp unit:
^ Right high beam (E2e1)
^ Right low beam (E2e2)
^ Right standing and parking lamp (E2e3)
^ Right turn signal lamp (E2e5)
