AR82.10-P-4905TX Remove/Install Taillamp
AR82.10-P-4905TX Remove/Install Taillamp
AR82.10-P-4905TX Remove/Install Taillamp

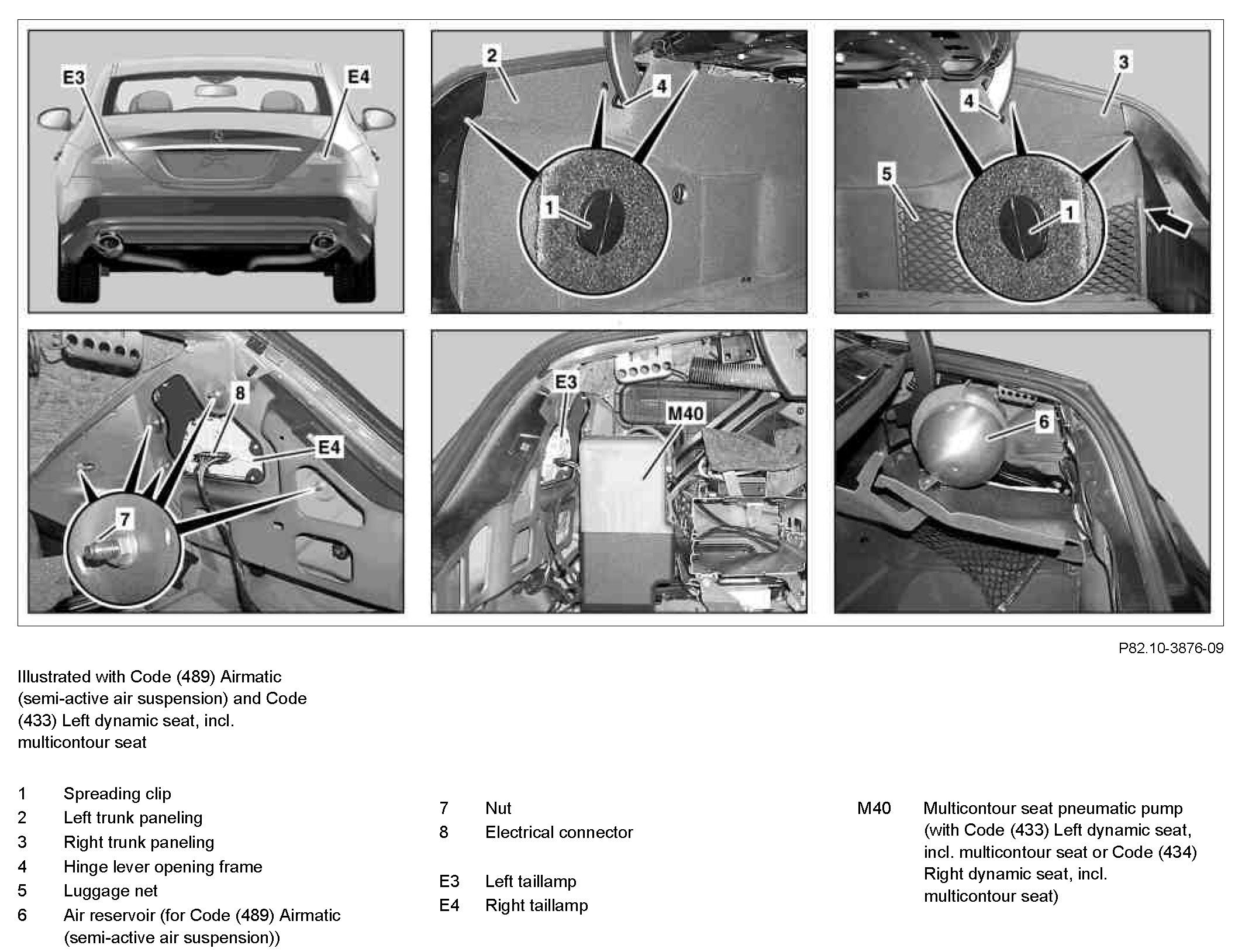

Component Identification:
Component Identification:

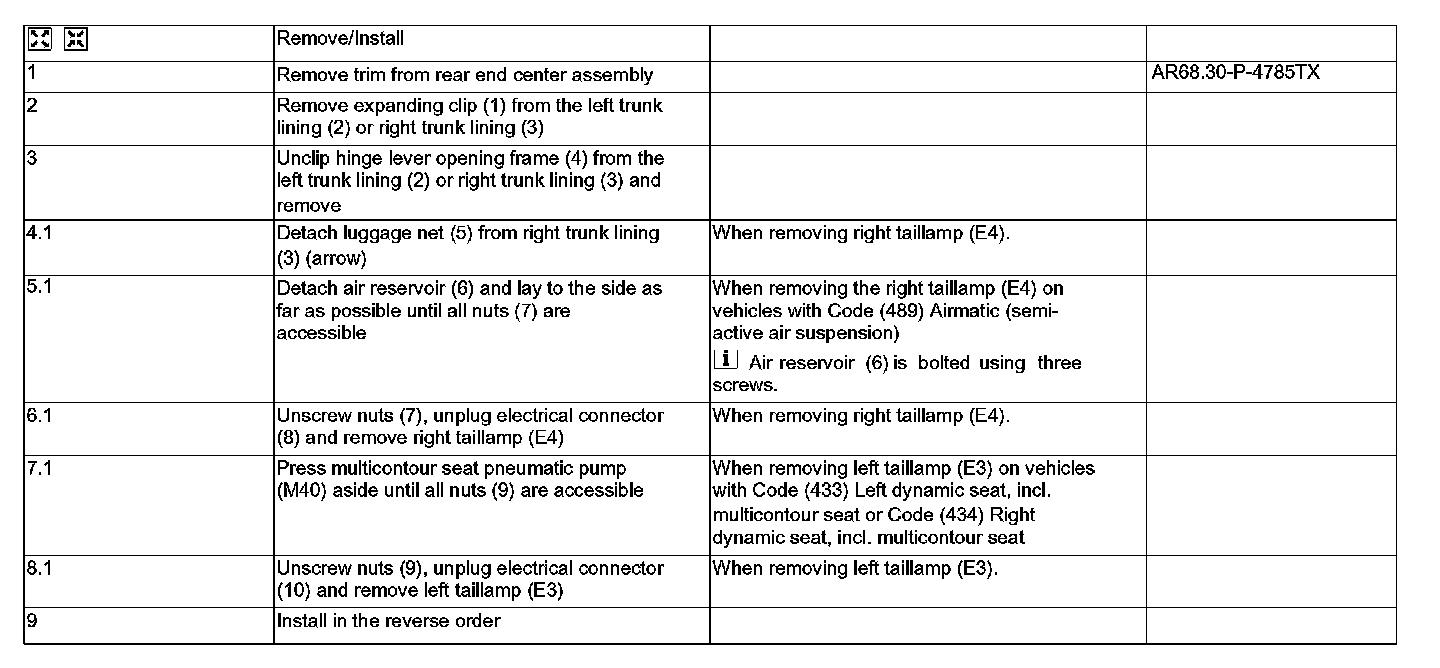

Steps 1 - 9:
